3.1

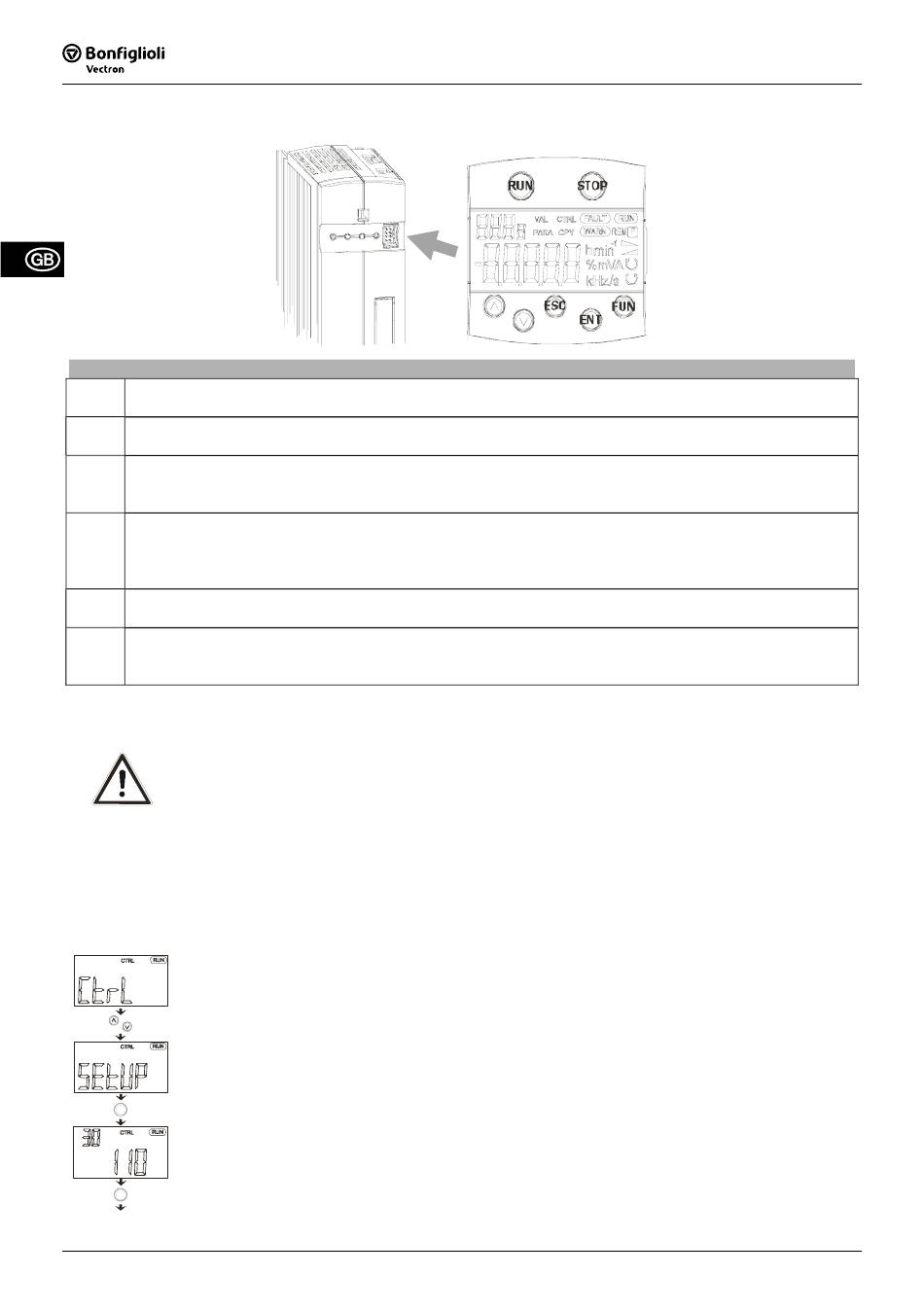

Functions of keys

Start drive (alternative to control signal S2IND or S3IND). Opening the CTRL menu.
RUN
Opening the motor potentiometer function.
Stop drive (alternative to control signal S2IND or S3IND). Opening the CTRL menu.
STOP
Acknowledging faults
Adjusting the output frequency in the Motor potentiometer function Pot.
▲ ▼ Navigating in the menu structure and selecting parameters.
Increasing/decreasing of parameter values.
Reversal of the direction of rotation independent of the control signal on the terminals Clockwise
S2IND or Anticlockwise S3IND.
ENT
Opening parameters or switching to another menu within the menu structure.
Confirmation of the selected function or the parameter setting.
Aborting parameter settings or switching back to the previous menu within the menu structure.
ESC
Cancelling the function or resetting the parameter value.
Switching over the key function. Access to special functions.
FUN Changing from Internal reference value int or Motor potentiometer function Pot to the adjusted JOG-
frequency; the drive starts. Releasing the FUN key stops the drive.
3.2

Guided Commissioning

Warning!
The frequency inverter may be connected to power supply every 60 s. More frequent switch-on
operations may damage the device. Consider this for a jog operation of a mains contactor.
• Make sure that the frequency inverter is not released (control input S1IND open).
• Switch on mains power.
The frequency inverter carries out a self-test.
Attention!
Before starting the the Guided commissioning the machine should not have been in operation because part of the
machine data depends on the operating temperature.
When the unit is in "as-delivered" condition, the guided commissioning procedure is started
automatically. After successful commissioning, the guided commissioning can be carried out
again later via the sub-menu CTRL.
• Use the ENT key to switch to the CTRL sub-menu.
• In the CTRL sub-menu, select the menu item "SEtUP" and confirm by pressing the ENT key.
Use the ENT key to select parameter
•
• Use the arrow keys to enter the number 110 or 410.
ENT
110: sensorless control, V/f characteristic
410: sensorless field-oriented control
ENT
28
28
