For both versions, the lighting is switched on by
pressing the "light" button 5. The lighting indi-
cator b appears on the display.
To switch off the lighting, press the "light" but-
ton 5 again; the lighting indicator b goes out.
Speed and Distance Indicators
Note: Depending on country-specific version, dis-
tance and speed can either be displayed in "km"
and "km/h" or in "mi" and "mph". Adjustment of
the drive HMI and the selection of the display pos-
sibilities for the km and mile version are identical.
The speed indication a always displays the cur-
rent speed.

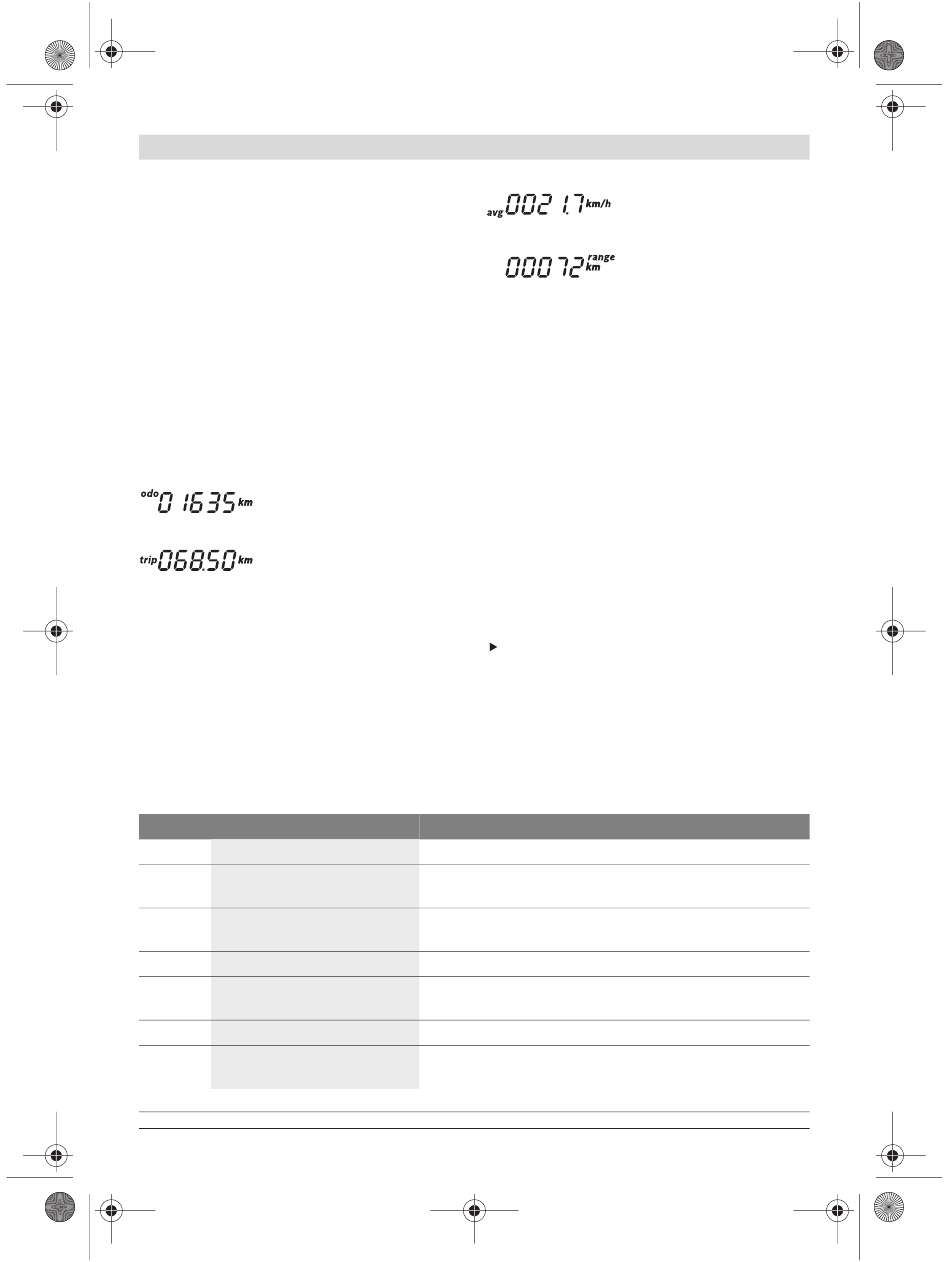

The following indications are available in multi-
function indicator e:
Total distance "odo": Indi-
cates the total distance cov-
ered with the eBike
Trip distance "trip": Dis-
tance covered since the last
reset
Error Code Indication
The components of the eBike drive are continu-
ously and automatically monitored. When an er-
ror is detected, the respective error code is in-
dicated in display f.
Depending on the type of error, the drive is au-
tomatically shut off if required. Continued travel
without assistance from the drive is possible at
any time. However, have the eBike checked be-
fore attempting new trips.
Code Cause
001 Internal error of the drive HMI Have the drive HMI checked
002 One or more buttons of the
drive HMI are blocked.
003 Connection problem of the
drive HMI
100 Internal error of the drive unit Have the drive unit checked
101 Connection problem of the
drive unit
102 Error of the speed sensor
103* Connection problem of the
lighting system
* only for eBike lighting via battery (country-specific)
Bosch eBike Systems
tery charge (for constant conditions such as as-
sistance mode, assistance level, route profile
etc.)
To switch within the multi-function indicator,
press the "info/reset" button 3 until the desired
function is displayed.
To reset the trip distance "trip" and the average
speed "avg", switch to one of both indications
and then press the "info/reset" button 3 until
the indication is reset to zero.
While using the start-assistance function, multi-
function indicator e goes out.
Have all inspections and repairs carried out
only by an authorised bicycle dealer. When
an error is still displayed despite corrective
measures, please also refer to an authorised
bicycle dealer.
Corrective Measure
Check if any buttons are blocked, e.g. from dirt or
debris. Clean the buttons, if required.
Have connections and contacts checked
Have connections and contacts checked
Have the speed sensor checked
Have connections and contacts checked
English–5
Average speed "avg": Aver-
age speed achieved since
the last reset
Range "range": Estimated
range of the available bat-
