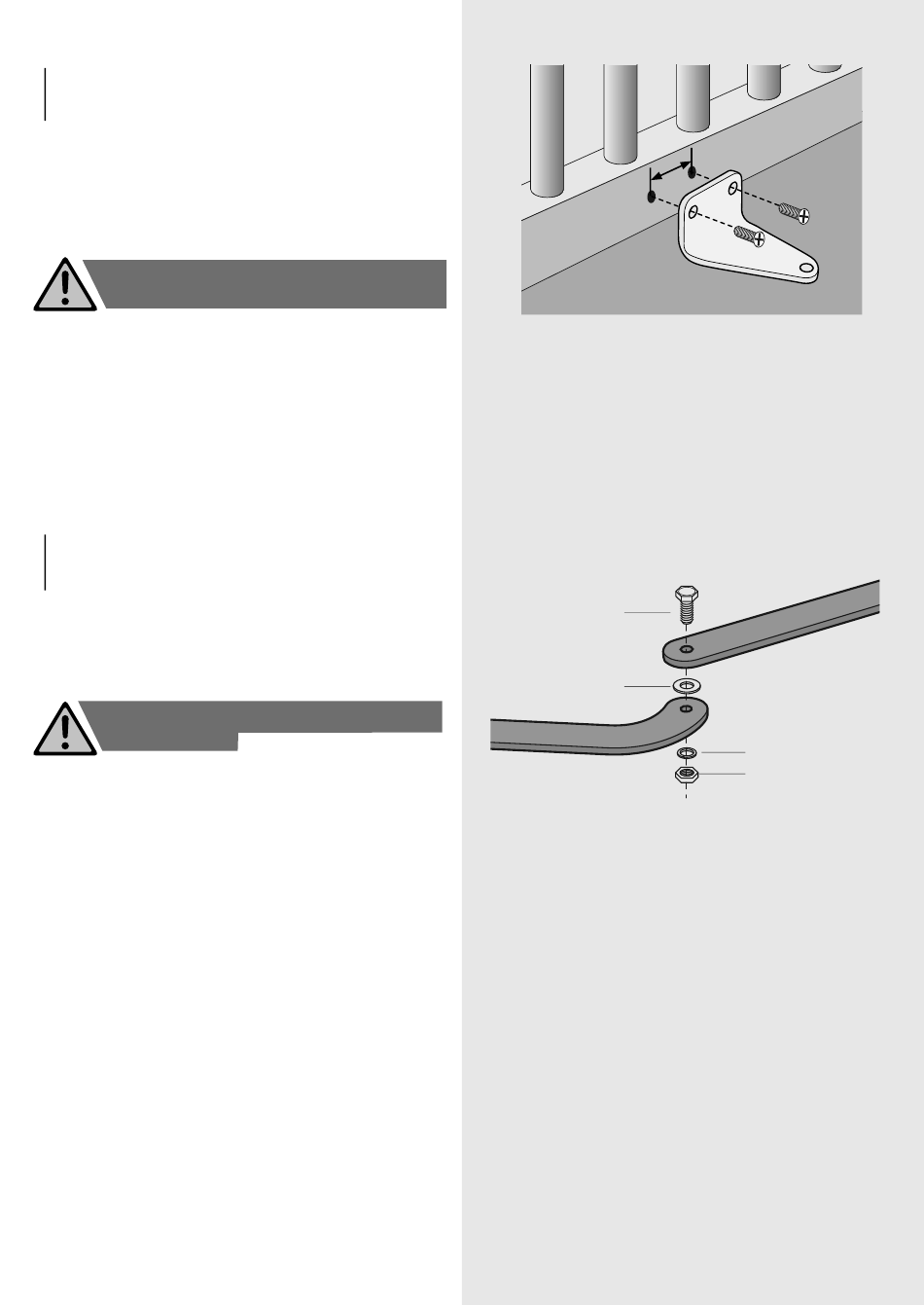

fIXINg THE SUPPORT METALLIC ON THE gATE
Connect the metallic support to the gate in a
reinforced area (Fig.a) so to respect
the dimension C calculated at page 15.
Nut and bolts not supplied : Attention;
Use nuts and bolts suitable for your gate.
5
ASSEMbLINg Of ARTICULATED ARMS
1. screw M10x30
2. washer
3. Nut self-lock
Do not completely close nut, some gap is
to be allowed.
