PC Operation

2.

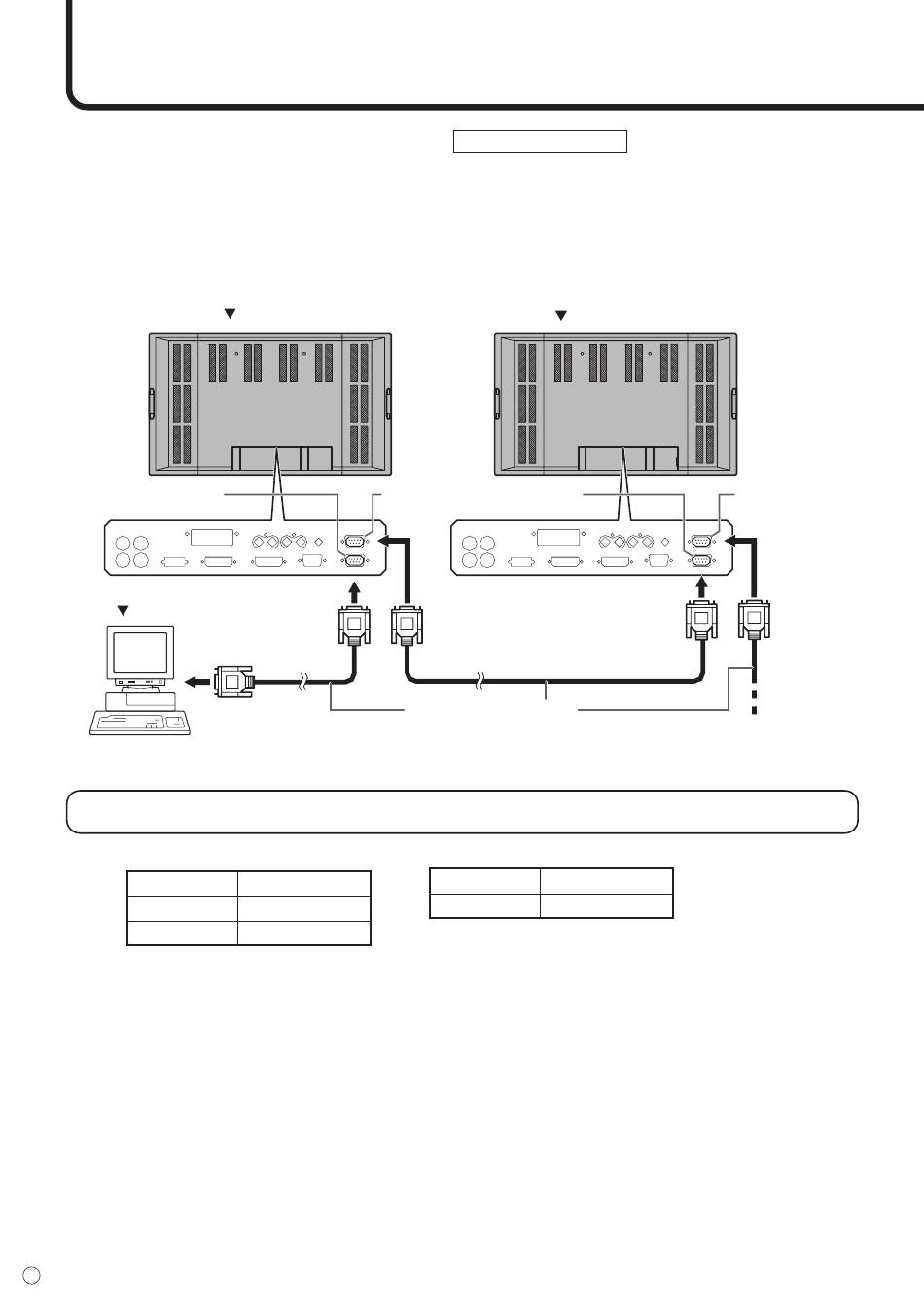

Daisy chain connection from a single PC...... Advanced operation
Connect with RS-232C straight cable between the PC COM port (RS-232C connector) and the
RS-232C input terminal on the rear of monitor.
Next, connect RS-232C straight cable to the first monitor's RS-232C output terminal and to the
second monitor's RS-232C input terminal. Connect in the same way to the third and subsequent
monitors. The number of connectable monitors varies depending on the length of the cable used and
the surrounding environment.
RS-232C
input terminal
PC
To COM port

Communication conditions

Set the RS-232C communication settings on the PC to match the monitor's communication settings.
Baud rate
Data length
Parity bit
38
E
(Continued)
First monitor
RS-232C
output terminal
RS-232C
OUT
IN
RS-232C straight cable
(commercially available)
9,600 bps
8 bits
None
Second monitor
RS-232C
input terminal
Stop bit 1 bit
Flow control None
RS-232C
output terminal
RS-232C
OUT
IN
(To the third monitor)
