Dual screen display
You can display the screens of the PC input signal (ANALOG/DIGITAL) and AV input signal
(COMPONENT/VIDEO) simultaneously.
Set this function with "PIP MODES" in the MODE SELECT 3 menu. (See page 32.)
• The currently selected input signal is displayed on the main screen.
• You cannot simultaneously display the screens of signals of the same type, such as two types of PC
input signals or two types of AV input signals. The screens of one of the PC input signals and one of
the AV input signals can be displayed simultaneously.

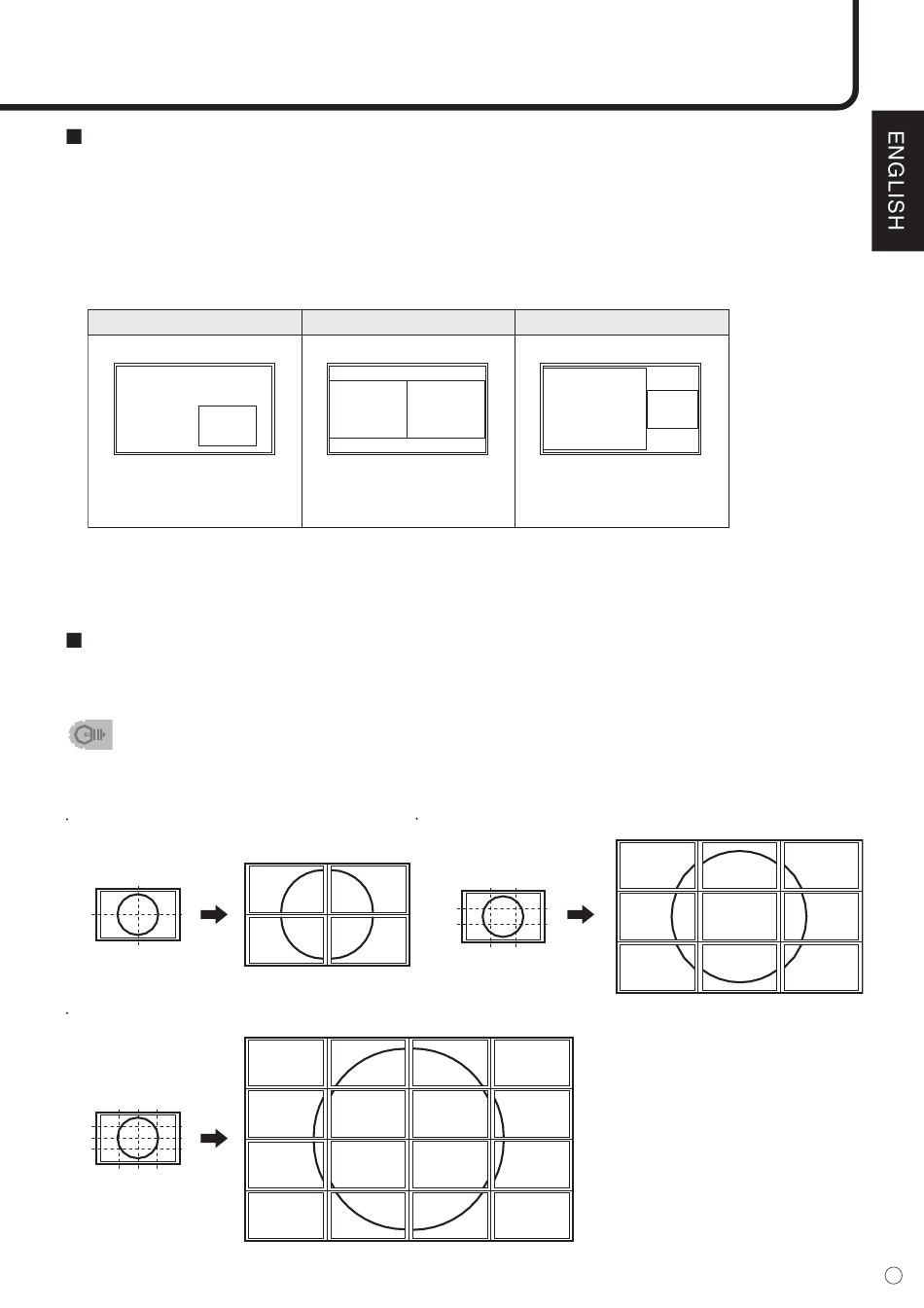

PIP
Example
Main screen
Sub
screen
A sub screen is displayed
inside a main screen.
* If "COMPONENT" is selected for the main screen in PbyP mode and 1080i video
signals are input, the image quality cannot be changed by adjusting the value of
"SHARPNESS" from the VIDEO ADJUSTMENT menu.
Enlarge
You can set up 4, 9, or 16 monitors and integrate them into a single large screen to display video. Each
monitor displays an enlargement of 1/4, 1/9, or 1/16 of the original image.
• Using PC digital RGB input/output terminals, up to 4 monitors can be daisy-chained. (See page
18.)
• To connect 9 or 16 monitors to integrate a screen, a separate video signal splitter
(commercially available) is required.
4 screen monitor set-up
0 1
2 3
16 screen monitor set-up
PbyP
Example
Main
screen
A main screen and a sub
screen are displayed side
by side.*
9 screen monitor set-up
0 1
2 3
0
1
4 5
8 9
12 13
PbyP2
Example
Sub
Main screen
screen
A main screen of 1280 width
size and a sub screen are
displayed side by side.
0 1 2
3 4 5
6 7 8
3
2
6 7
10 11
14 15
Sub
screen
0 1 2
3 4 5
6 7 8
33
