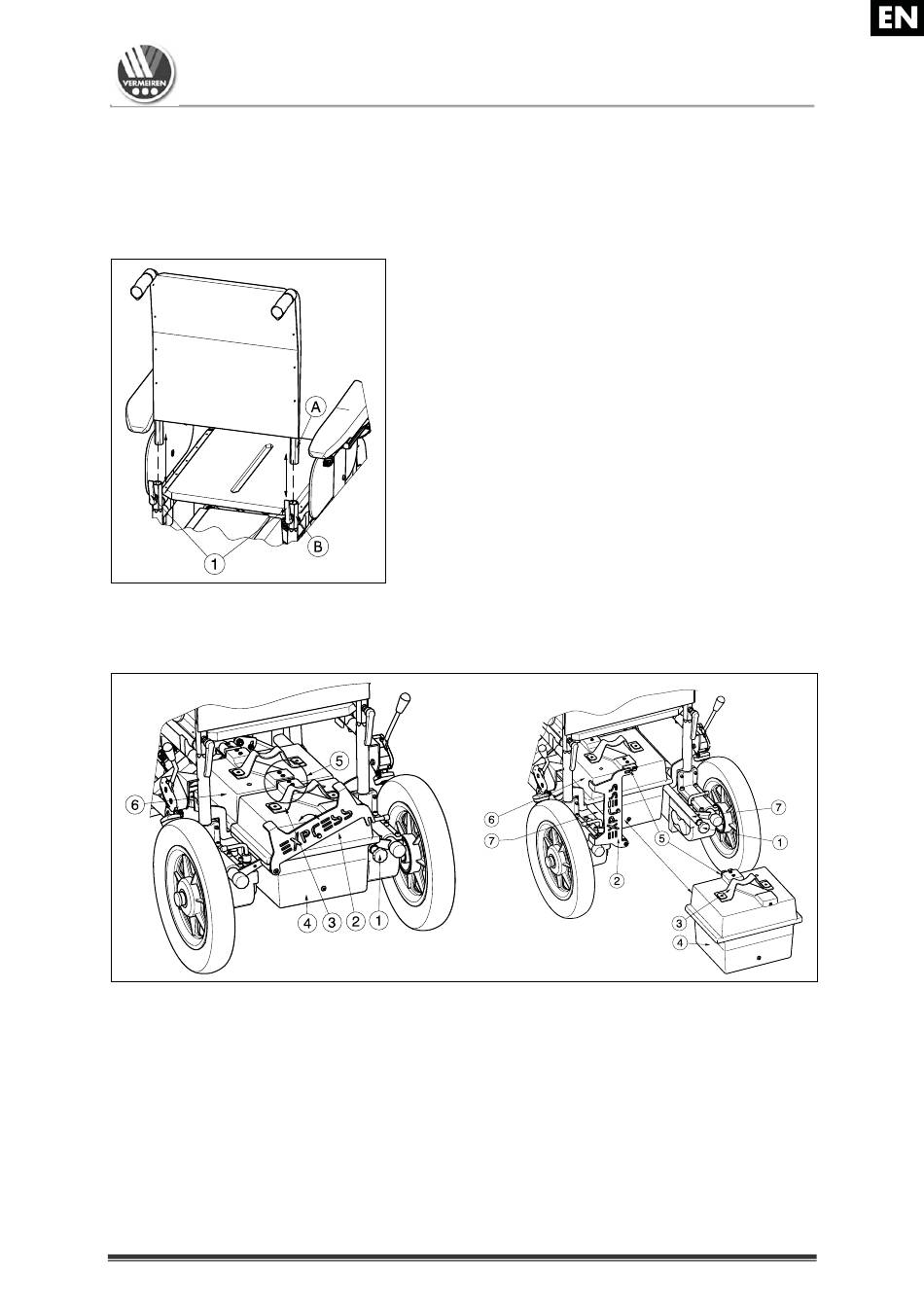

Mounting or removing backrest

L
Risk of injury – Make sure that both securing levers  are engaged.
WARNING:
L
CAUTION:
Chance of pinching – Do not place fingers between the backrest tubes
of the wheelchair.
For transport the backrest of the wheelchair can be completely removed and put on the seat.
2.6

Mounting or removing battery housing

L
CAUTION:
Chance of pinching – Do not place fingers between the battery
housings and guide rails of the wheelchair.
To mount the battery housings on the electric wheelchair:
Grasp the handgrip  of the first battery housing (without thermal fuse) .
1.
Lift the battery housing  on the side rails  of your wheelchair.
2.
Push the battery housing  as much as possible under the seat of the wheelchair.
3.
4. Check that the connectors (battery, power module) fits in each other.
Grasp the handgrip  of the battery housing (with thermal fuse) .
5.
Lift the battery housing  on the side rails  of your wheelchair.
6.
Push the battery housing  backwards.
7.
Check that the battery connectors  fits in each other.
8.
Turn the plate  downwards.
9.
10. Retighten the star knob .
To mount the backrest on the electric wheelchair:
1. Check that the levers  are not fixated otherwise
loosen the levers .
2. Mount the backrest tubes Ⓐ in the hexagonal
tubes of the frame Ⓑ.
3. Retighten the levers  properly.
To remove the backrest
wheelchair:
1. Turn on the levers  until they come loose.
2. Remove the backrest tubes Ⓐ out the hexagonal
tubes of the frame Ⓑ.
3. Put the backrest on the seat for transportation.
Page 11
Express VB
2016-08
from the electric
