GB
SPARE PARTS AND ACCESSORIES
11.6

SPARE PARTS LIST HOPPER 5L

ITEM ORDER-NO DESIGNATION
- 0341 265 Hopper 5l, assy.
1 0340 901 Cover
0037 607 Filter disk, mesh width 0,8 mm
2 Optional:
0003 756 Filter disk, mesh width 0,4 mm
3 9902 306 Sheet metal screw 3,9x13 (2)
4 0340 904 Hopper
5 0340 908 Return pipe
1
2
4
3
5

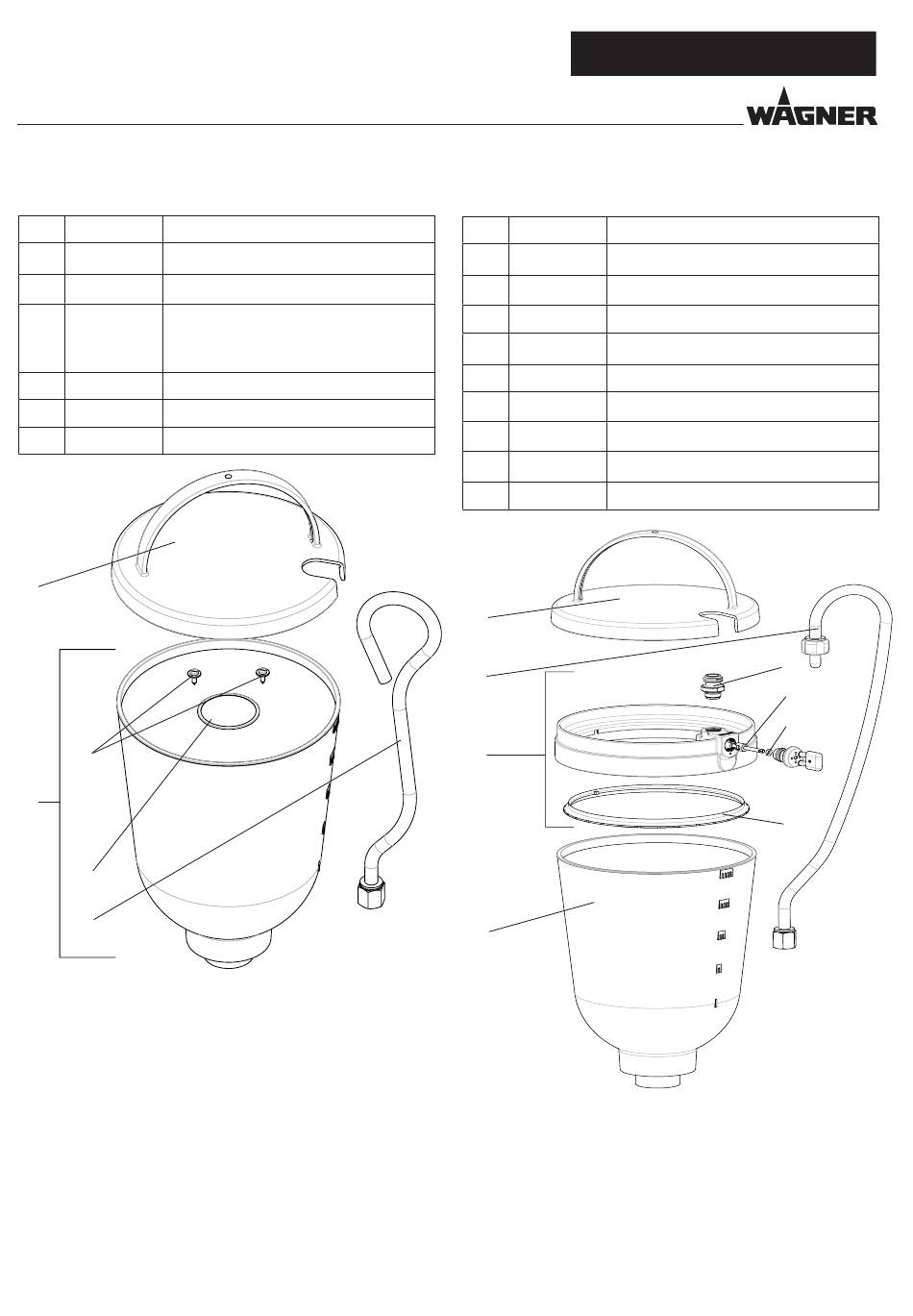

Spare parts diagram hopper
62
Super Finish 23 Select
11.7

SPARE PARTS LIST HOPPER WITH TOPCLEAN

ITEM ORDER-NO DESIGNATION
- 0341 268 Hopper 5l with TopClean, assy.
1 0340 904 Hopper 5l (filter disc see 11.7)
2 0340 901 Cover
3 0340 271 TopClean, assy.
4 0340 270 Return pipe
5 0340 499 Screwing
6 0340 466 Distributor ring
7 0340 500 Rotary valve shaft
8 9971 486 O-ring 4x2 (FFPM)
2
4
3
1
Spare parts diagram hopper with TopClean
5
7
8
6
