USER MANUAL
The red knob in Figure 2-16 can be used to secure the machine during maintenance or to prevent non desired
use. A lock can be applied to it in stop position so nobody can turn it back to ON. This will exha ust air from
the machine circuit and disconnect it from air supply, but it WILL NOT switch off electrical components. Refer
to chapter I.7.A
If the indicated pressure is not 6 bars (85 p.s.i.), check the pressure at the air source (compressor). Then, if pressure is correct at
the air source, it means the regulator of the machine needs fine tuning. Perform the following procedure to adjust it (Figure 2-17
and Figure 2-18)
Allen key N.3
Unscrew
both
screws
of
the
drawer panel with a
3mm Allen key.
Then
open
the
drawer
to
have
access to the air
pressure
regulator
knob.
SAFETY INSTRUCTIONS
(page 42) for further instructions.

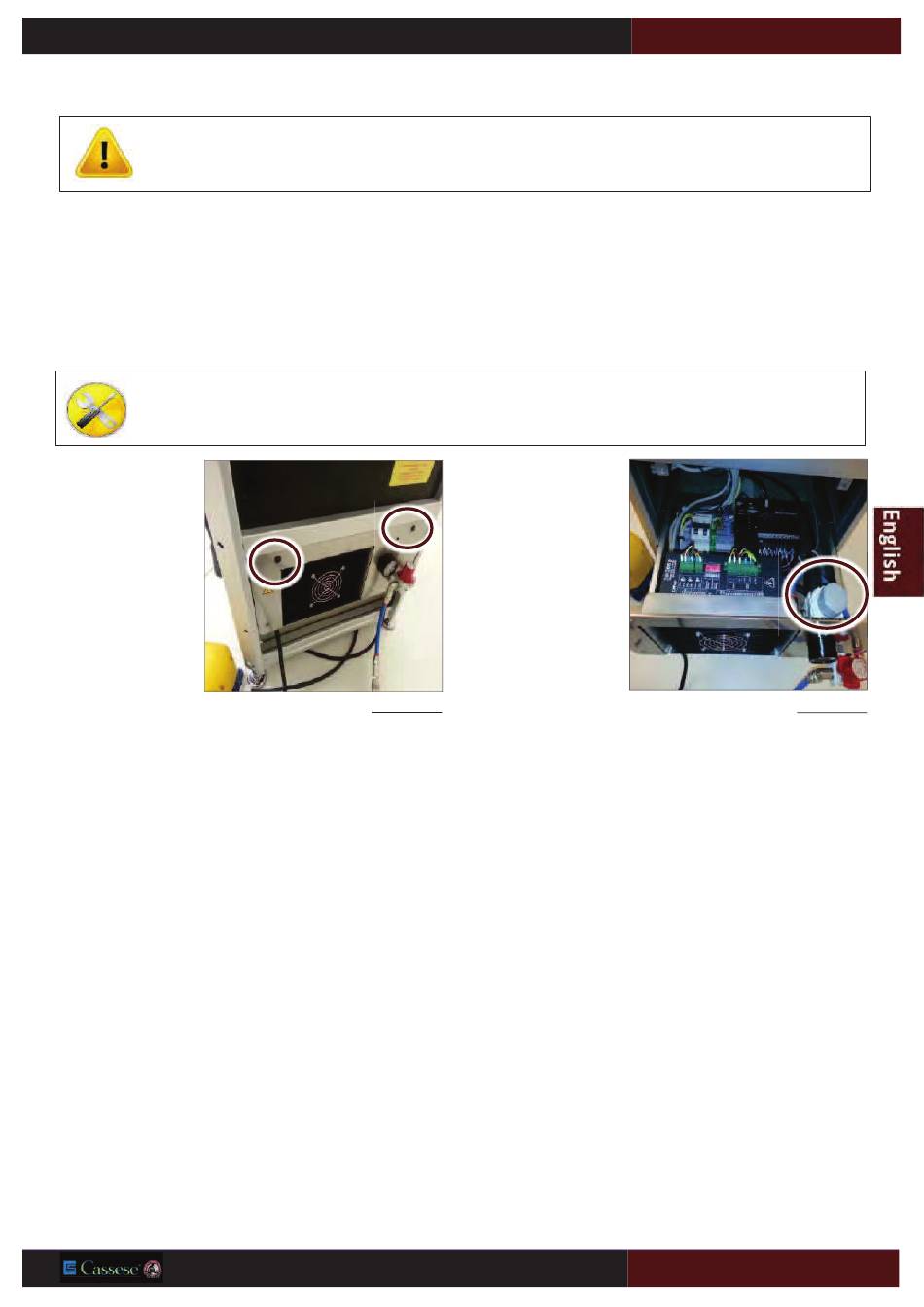

Figure 2-17
Pull
up
the
air
pressure
regulator
knob and turn it
(clockwise = more
pressure) until the
needle of the air
pressure
gauge
reaches
6
bars
(85p.s.i.).
MACH 45 UNI
Figure 2-18
