TCS Compact
6.3.3 Securing the clamping prism
1
Clamping prism
ø
2 Gas nozzle marking

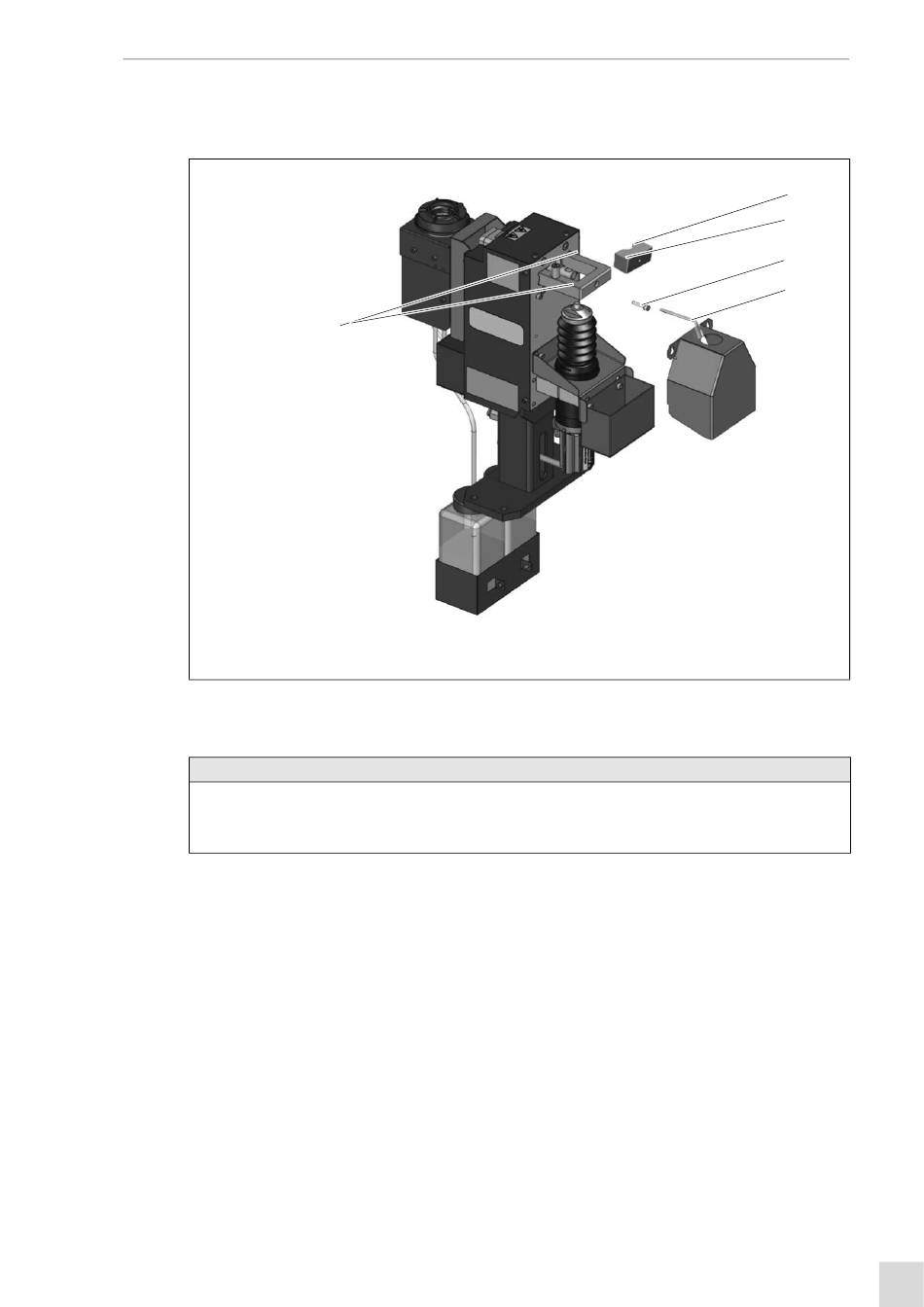

Fig. 17
Securing the clamping prism
1 Insert the clamping prism (1) into the gas nozzle clamping device (5) from above.
NOTICE
• Ensure that the attached clamping prism (1) is compatible with the gas nozzle diameter. You can find the diameter of
the prism on the prism.
 Fig. 17 Securing the clamping prism on page EN-23, pos. (2)
2 Use the cylinder head screw M6x25 (3) to secure the clamping prism (1) (tightening torque 10 Nm).
BAL.0617.0 • 2021-11-23
5
3
M6x25 cylinder head screw
4 AF5 Allen key
6 Putting into operation
1
2
3
4
5
Gas nozzle clamping device
EN - 23
