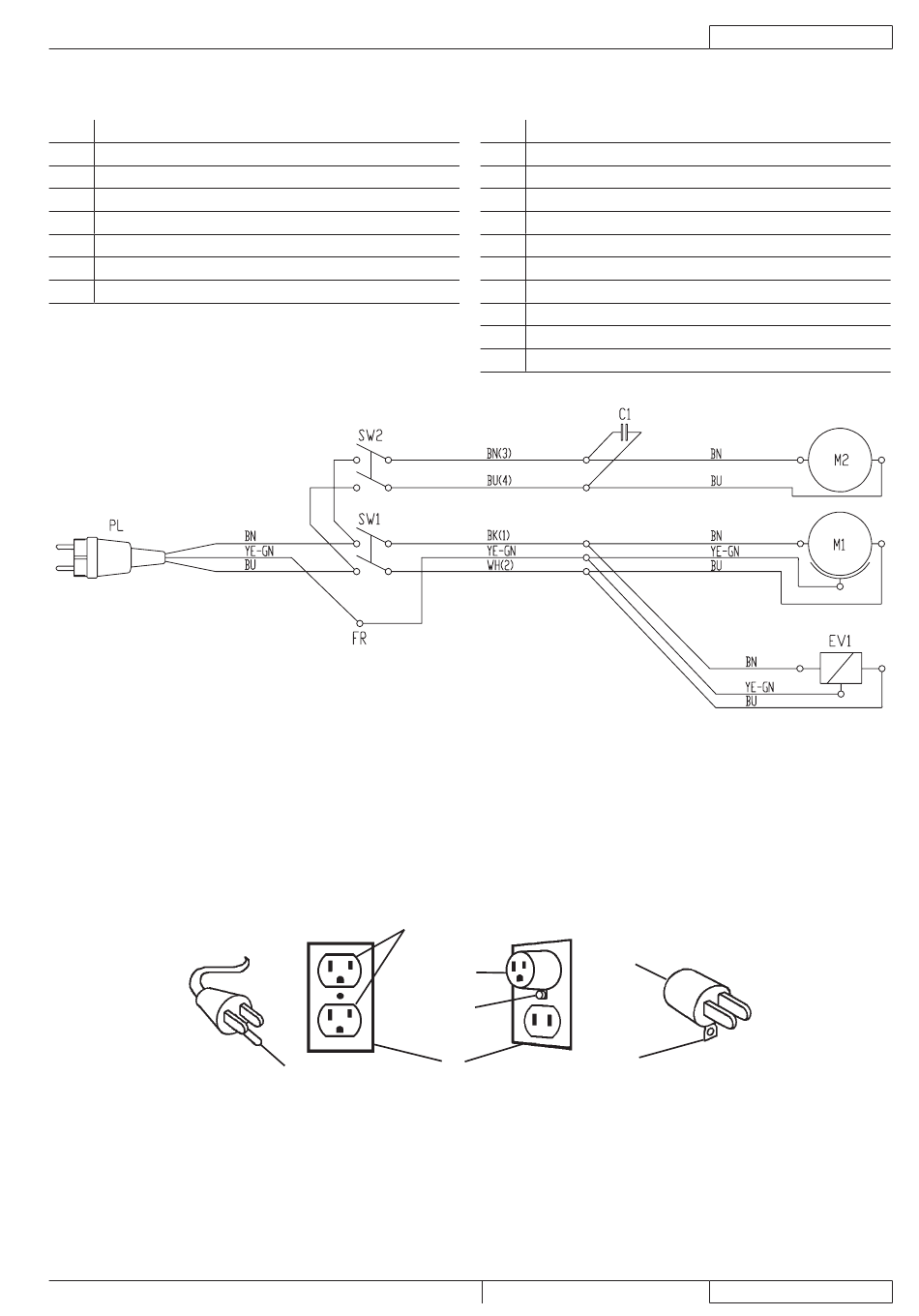

WIRING DIAGRAM

Key
C1 Suppressor
EV1 Water solenoid valve
FR Frame
M1 Brush/pad-holder motor
M2 Vacuum system motor
PL Plug
SW1 Brush/pad-holder switch
SW2 Vacuum system switch

GROUNDING CONNECTION

(see Fig. 2)
A. Grounding pin
B. Grounded outlet
C. Grounded outlet box
D. Adapter
E. Metal screw
F. Adapter
G. Grounding screw tab
B
C
A
Figure 2
Razor E17
INSTRUCTIONS FOR USE
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
F
D
E
G
909 6311 000(3)2009-11
ENGLISH
S310239A
S310183B
9
