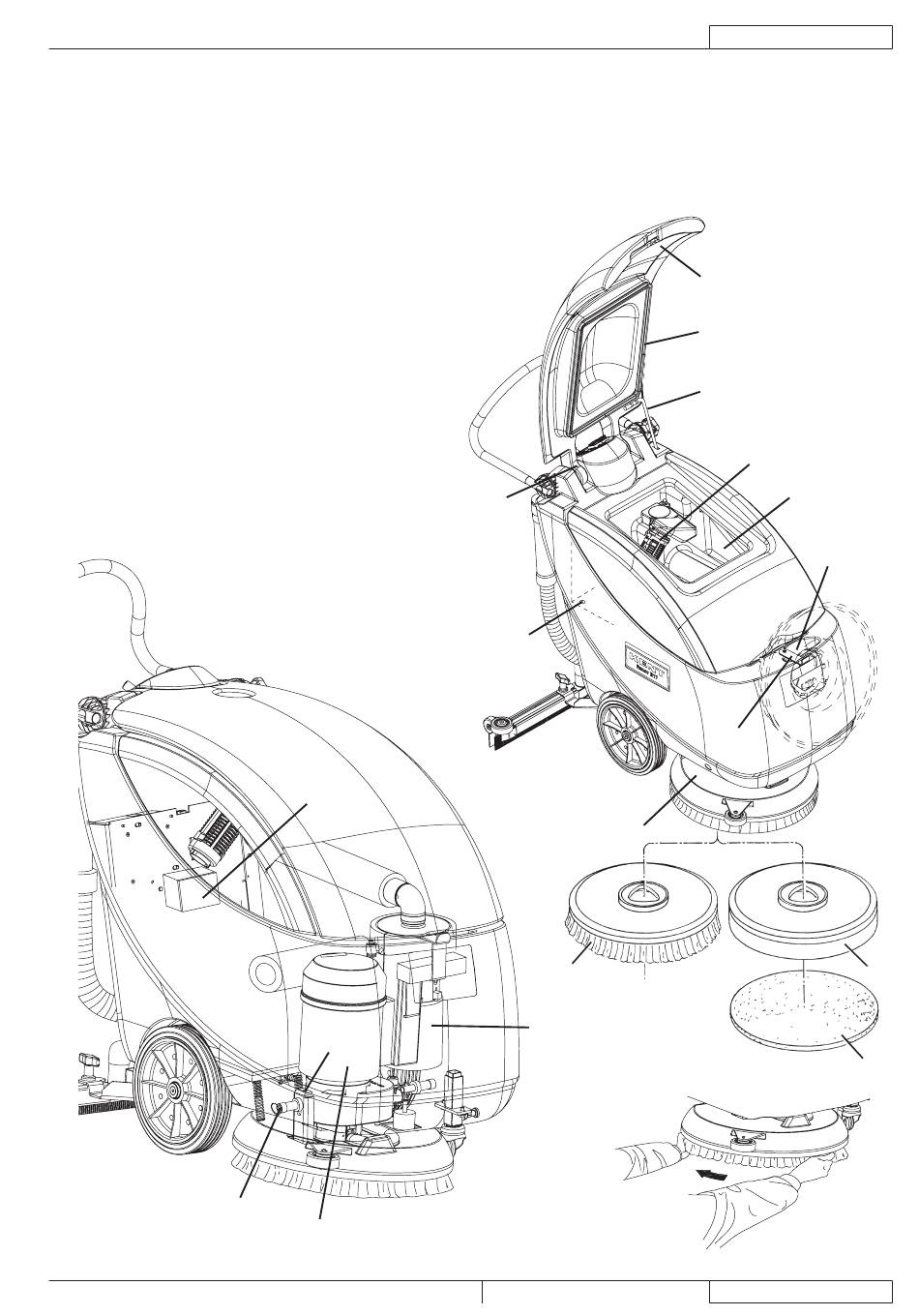

MACHINE STRUCTURE (Continues)
31. Recovery tank cover (open)
32. Recovery tank cover gasket
33. Brush/pad-holder support
34. Recovery tank compartment
35. Solution tank filler neck
36. Vacuum grid with automatic shut-off float
37. Recovery water drain hole
38. Vacuum system motor
39. Brush/pad-holder motor
40. Brush/pad-holder deck
41. Machine speed adjusting screw
42. Brush
43. Pad-holder
44. Pad
45. Terminal board box
46. Screw
47. Compensation hole
48. Cover support rod (engaged)
49. Brush/pad-holder engagement rotation direction
