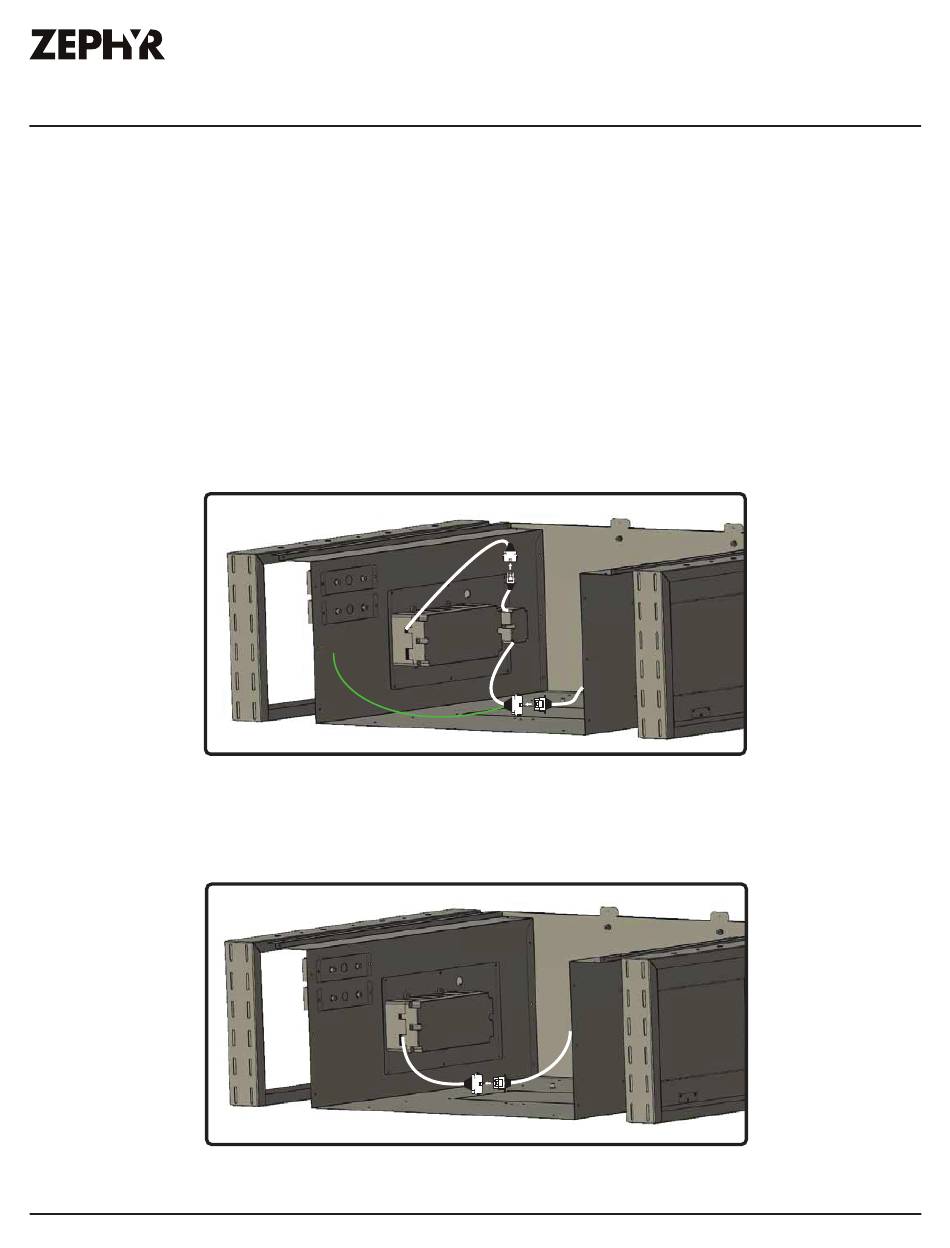

Internal Blower Wire Connections

NOTE: This range hood must be properly grounded. This unit should be installed by a qualified
electrician in accordance with all applicable national and local electrical codes.
Internal Blowers (CBI-290C and CBI-600A)
1. Mount capacitor box to hood body by (2) M4 x 8mm screws from blower hardware package.
2. Connect 6 pin female end from PCB box to 6 pin male end of capacitor box wiring, FIG. L1.
3. Connect 9 pin male end from CBI blower to 9 pin female end of capacitor box wiring, FIG. L2.
4. Connect green ground wire from capacitor box wiring to hood body by (1) 3/16 x 3/8 screw pre-
installed inside hood body, FIG. L3.
Internal Blowers (PBI-1100B)
1. Connect 6 pin female end from PCB box to 6 pin make end from PBI-1100B blower wiring, FIG. M.
Lux Use, Care, and Installation Guide
Installation Instructions
3
FIG. L
A
FIG. M
1
From
CBI-600A or
2
CBI-290C
Blower
From
PBI-1100B
Blower
17
