4 Setup

4.1 Safety information

IMPORTANT!
– Check the parts for transport damage before
commissioning and contact the dealer if required.
– Ensure during assembly that the parts are positioned
correctly with respect to one another.

4.2 Setting up the bath lift

WARNING!
Risk of slipping
The bath lift can slip if the suction cups do not have
a good hold.
– Clean the bathtub and the suction cups before setting
up the bath lift.
– Do not change the position of the bath lift in the
bathtub once it is set up.
WARNING!
Risk of injury and damage!
– Only set up the bath lift in bathtubs that comply with
the specifications of the following table.

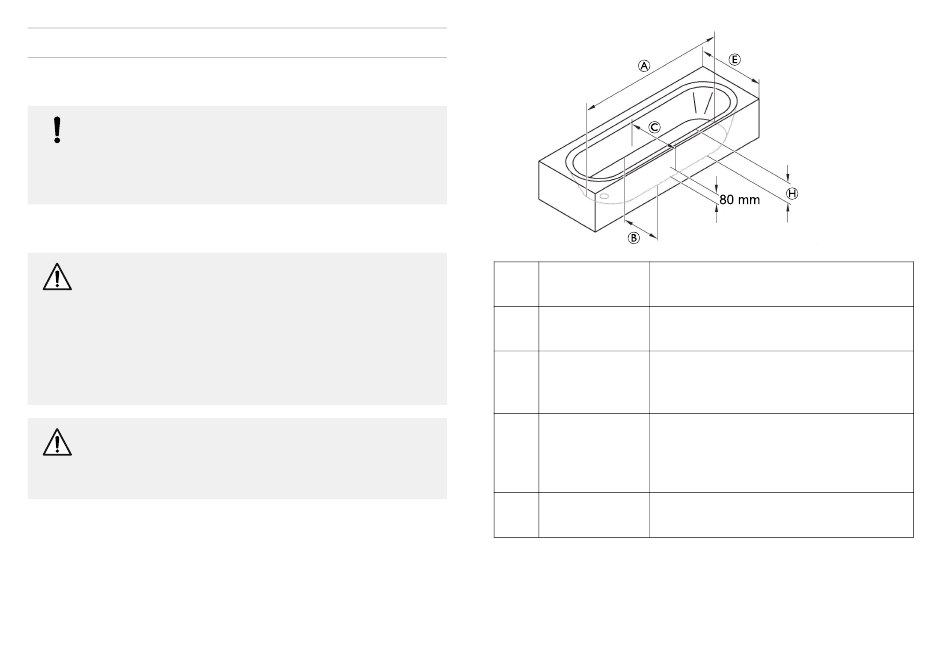

1471194-A
A
C
B
A
Tub length, ³ 800 mm
bottom
B Tub width, 280 - 600 mm
bottom (inside)
C
Tub width, at ³ 430 mm
80 mm height
(inside)
E Tub width 580 - 690 mm (with special side flaps)
(outside)
700 - 740 mm (with standard side flaps)
750 - 1000 mm (with special side flaps)
H Tub height £ 420 mm
(inside) (with height adapter, max. + 60 mm)
Setup
E
H
80 mm
9
