English
Type of
Crown Molding
45° Type
38° Type

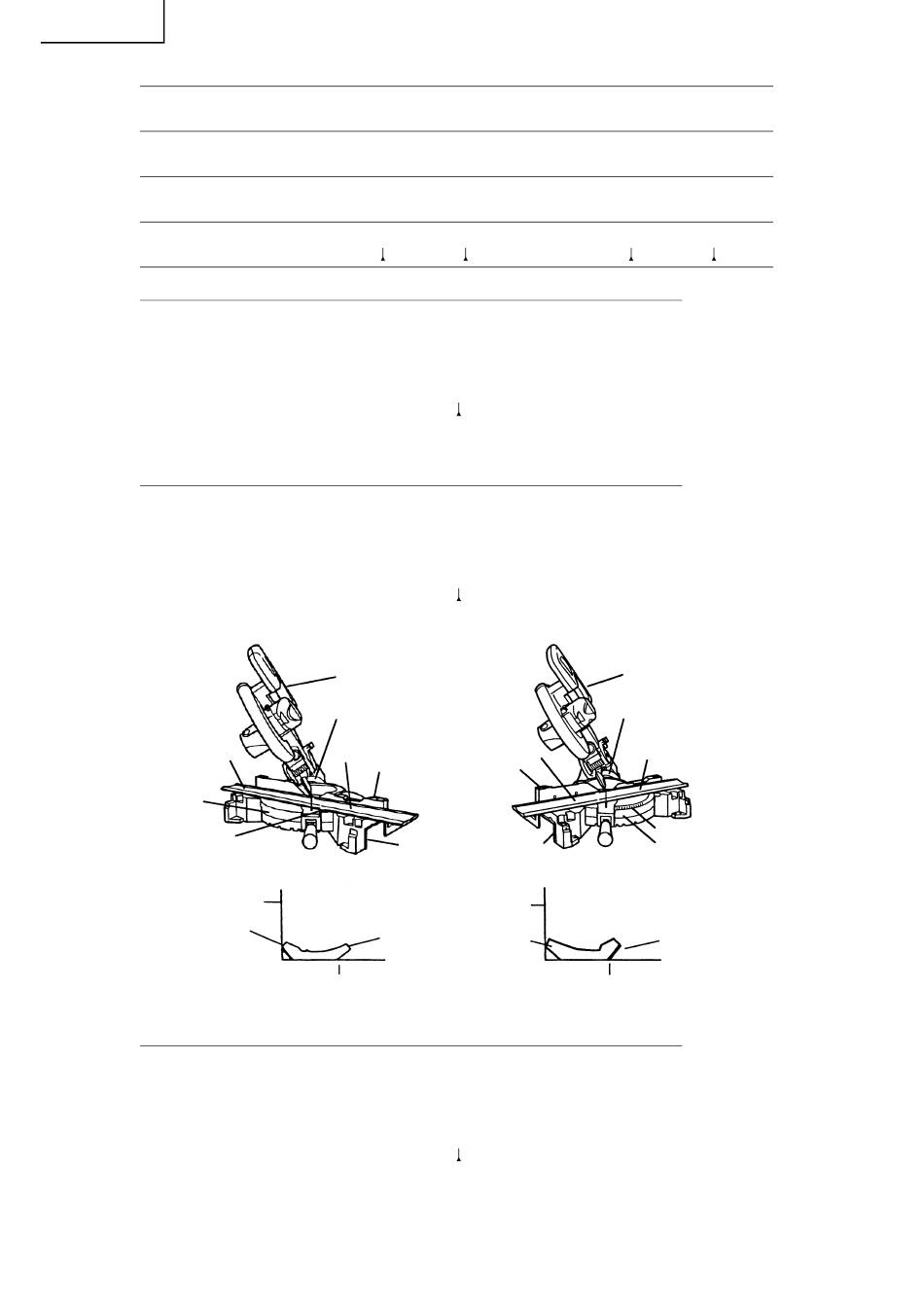

(1) Setting to cut crown moldings at positions q and r in Fig. 25 (see Fig. 26):
q Turn the table to the right and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3°
* For 38° type crown moldings: 31.6°
w Tilt the head to the left and set the Bevel Angle as follows:
* For 45° type crown moldings: 30°
* For 38° type crown moldings: 33.9° ( mark)
e Position the crown molding so that the upper surface (A in Fig. 24) contacts the fence as indicated
in Fig. 27.
(2) Setting to cut crown moldings at positions w and e in Fig. 25 (see Fig. 28):
q Turn the table to the left and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3°
* For 38° type crown moldings: 31.6°
w Tilt the head to the left and set the Bevel Angle as follows:
* For 45° type crown moldings: 30°
* For 38° type crown moldings: 33.9° ( mark)
e Position the crown molding so that the lower surface (B in Fig. 24) contacts the fence as in Fig.
29.
q
Table
Miter Angle Scale
Fence
A
(3) Setting to cut crown moldings at positions q and r in Fig. 25 (see Fig. 30):
q Turn the table to the right and set the Miter Angle as follows:
* For 45° type crown moldings: 35.3°
* For 38° type crown moldings: 31.6°
w Tilt the head to the right and set the Bevel Angle as follows:
* For 45° type crown moldings: 30°
* For 38° type crown moldings: 33.9° ( mark)
e Position the crown molding so that the upper surface (B in Fig. 24) contacts the fence as indicated
in Fig. 31.
18
All manuals and user guides at all-guides.com
To process crown molding at
positions 1 and 4 in Fig. 25.
Miter Angle Bevel Angle
Setting Setting
right 35.3° left 30° right 30°
right 31.6° left 33.9° right 33.9°
( mark) ( mark)
Head
Bevel
Angle Scale
r
Fence
Base
Fig. 26
B
Table on Base
Fig. 27
To process crown molding at
positions 2 and 3 in Fig. 25.
Miter Angle
Setting
left 35.3° left 30°
left 31.6° left 33.9°
( mark)
Head
Bevel
Angle Scale
e
w
Fence
Miter Angle Scale
Table
Base
Fig. 28
Fence
B A
Table on Base
Fig. 29
Bevel Angle
Setting
right 30°
right 33.9°
( mark)
