Centrifugal In-line EC Duct Fans – RR EC
3 .1

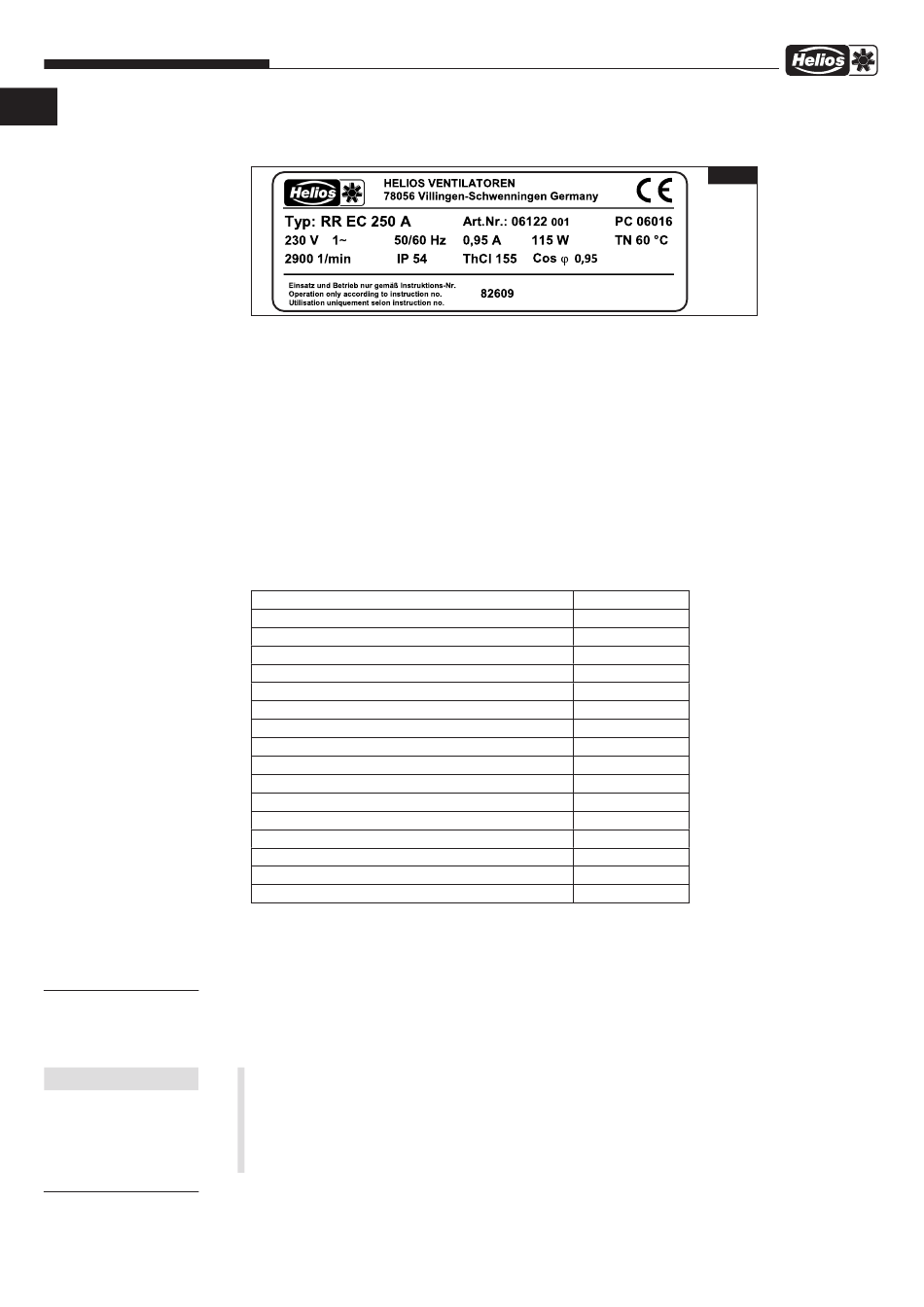

Type plate
Example:
ä
ü
Æ
Key for fan type plate:
ò Manufacturer's address
ù Fan label:
CE = CE mark
ä Version:
RR EC = Type designation
250
= Size
ë Item number
ö Production code / year of manufacture
The fan can be clearly identified by the ref. no., SNR (serial number) and PC (production code) numbers.

3 .1 .1 Motor type plate

Technical data about the motor can be found on the motor type plate!
3 .2

Accessories

The use of accessories not offered or recommended by Helios is not permitted. Any potential damage is not covered
by warranty.
Pipe clamp connectors
Mounting bracket
Backdraught shutter
Gravity operated shutter
Rain-repellent grille
Protection guard
Speed-potentiometer
Three-step switch
Universal controller
Differential pressure/temperature controller
Flexible attenuator length
Water heater battery
Temperature control system for water heater battery
Electric heater battery
- with integrated temp . control
Temperature control system for EHR-R . .
Air filter box
Duct system:
All Helios components fit standard duct Ø. For example, rigid spiral ducts, flexible aluminium or plastic ducts can be
used. The relevant fire-protection regulations must be observed if more than two stories of a building are connected.
4 .0

Functional description RR EC

The centrifugal in-line fans RR EC are steplessly speed-controllable by means of 0-10 V control voltage. Sui-
table potentiometers (Type PU/A 10), three-step switches (Type SU/A) are offered in the Helios accessories range.
Stepless speed control is possible with the universal controller (Type EUR EC). Alternatively, the electronic
differential pressure/temperature controller EDR / ETR can be used.
m
Activation / deactivation:
EC fans can be frequently activated and deactivated via the 0-10 V control input or the release input
depending on the type . This is gentle on the electronics and ensures a long service life . Control via the
power supply (on/off) is not recommended . In general, there must be an interval of at least 120 seconds
between activation and deactivation .
m
In case of strong vibrations and/or odours, maintenance must be carried out by a specialist according to
chapter 1 .4 .
5 .0
User maintenance
The centrifugal in-line fans RR EC are maintenance-free, there are no user maintenance provisions.
ò
ù
ë
ö
Å
î
Ø
ü Nominal voltage or voltage range / frequency
Å Rated current
î Power input
Ø max. flow medium temp. at rated operation
Æ Nominal speed
 Protection class / motor insulation class / cosine
 Installation and operating instructions/Print no.
BM . .
MK . .
RSKK/RSK
VK . .
G / RAG . .
SGR
PU/A 10
SU/A
EUR EC
EDR/ETR
FSD . .
WHR
WHST . . / WHS HE . .
EHR-R . .
EHR-R TR
EHS
LFBR . .
