Hach Polymetron pH/ORP Manuel D'utilisation page 7

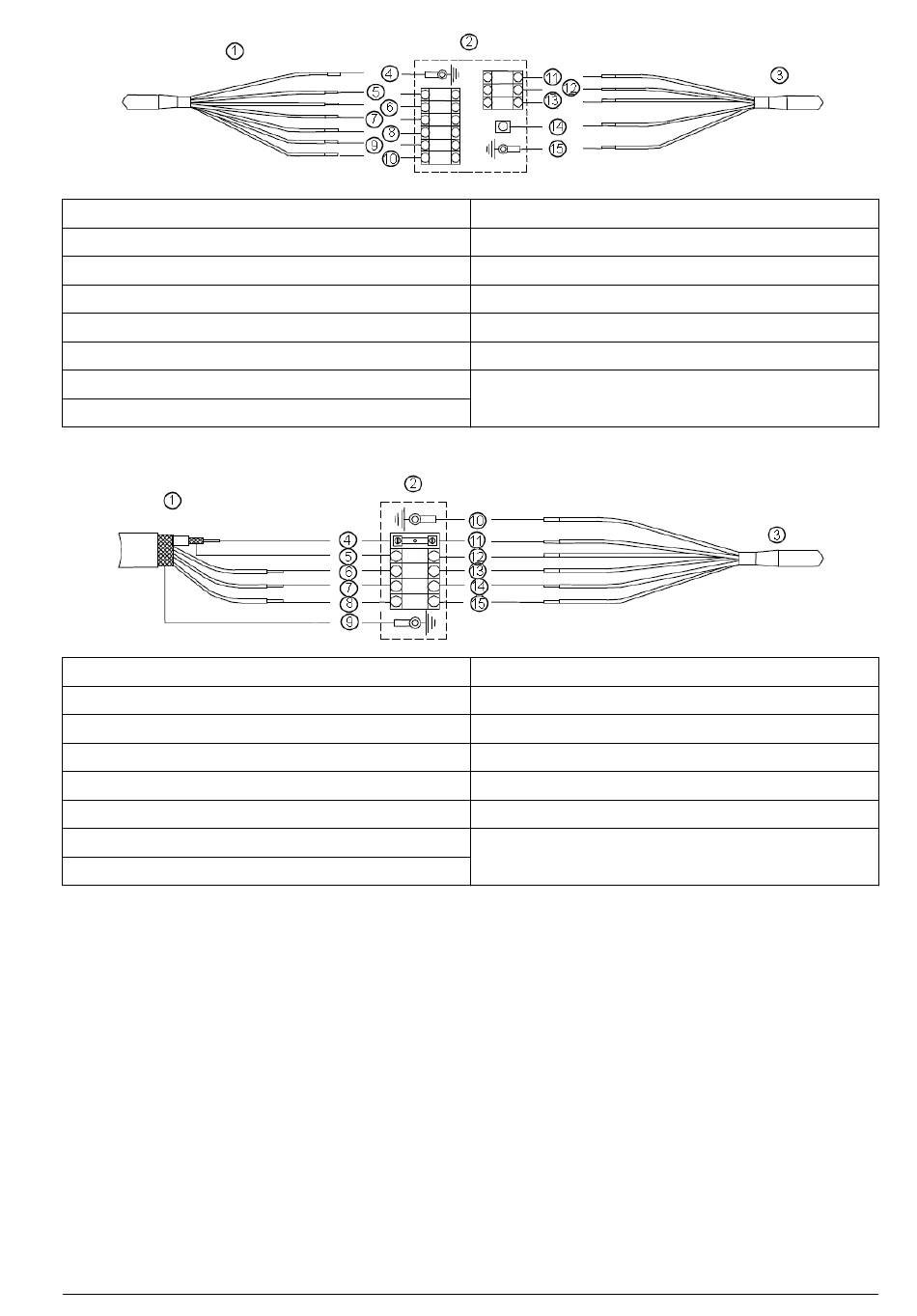

1 Model 2666 cable
2 Model 08350=A=8000 pre-amplifier
3 Sensor
4 External shielding - EMC protection
5 Temp+ (Pt100) - white
6 Temp- (Pt100) - pink
7 Ref. (reference) - yellow
8 +V - brown
Using the junction box
1 Model 2654 cable
2 Model 08350=A=8500 junction box
3 Sensor
4 Input (measured pH or ORP) - core
5 Ref. (reference) - shielding
6 Temp+ (Pt100) - white
7 Temp- (Pt100) - violet
8 Solution ground (liquid contact) - yellow/green
For pH sensors only:
• Temperature measurement
• Impedance measurement (blue wire from the controller):
• Program the control frequency upper and lower limits (refer to the 9500 user manual):
• Glass impedance: 50 Mohm to 500 Mohm
• Reference impedance: 1 to 100 kohm
8362 sensor
The sensor is provided with two cables of 3 meters as standard, one for the pH sensor and one for
the temperature sensor. As an option, cables of 10 or 20 meters can be supplied. Attach the device
to a suitable static object using the U-bolt (No. 3 in
Follow these instructions to install the sensor (the numbers reference
9 -V - grey
10 Input (measured pH or ORP) - green
11 Temp+ (Pt100) - red
12 Temp- (Pt100) - white
13 Ref. (reference) - black
14 Input (measured pH or ORP) - clear
15 External shielding - EMC protection
9 External shielding - EMC protection
10 External shielding - EMC protection
11 Input (measured pH or ORP) - clear
12 Ref. (reference) - black
13 Temp+ (Pt100) - red
14 Temp- (Pt100) - white
15 Liquid earth (liquid contact) - blue
Figure 2 on page 5).
Figure 2 on page 5):
English 7
