The unit can also be mounted
on a wall or another vertical
surface using a bracket secured
to the largest leg or both small-
er legs.
• All electrical wiring must be in
accordance with local regula-

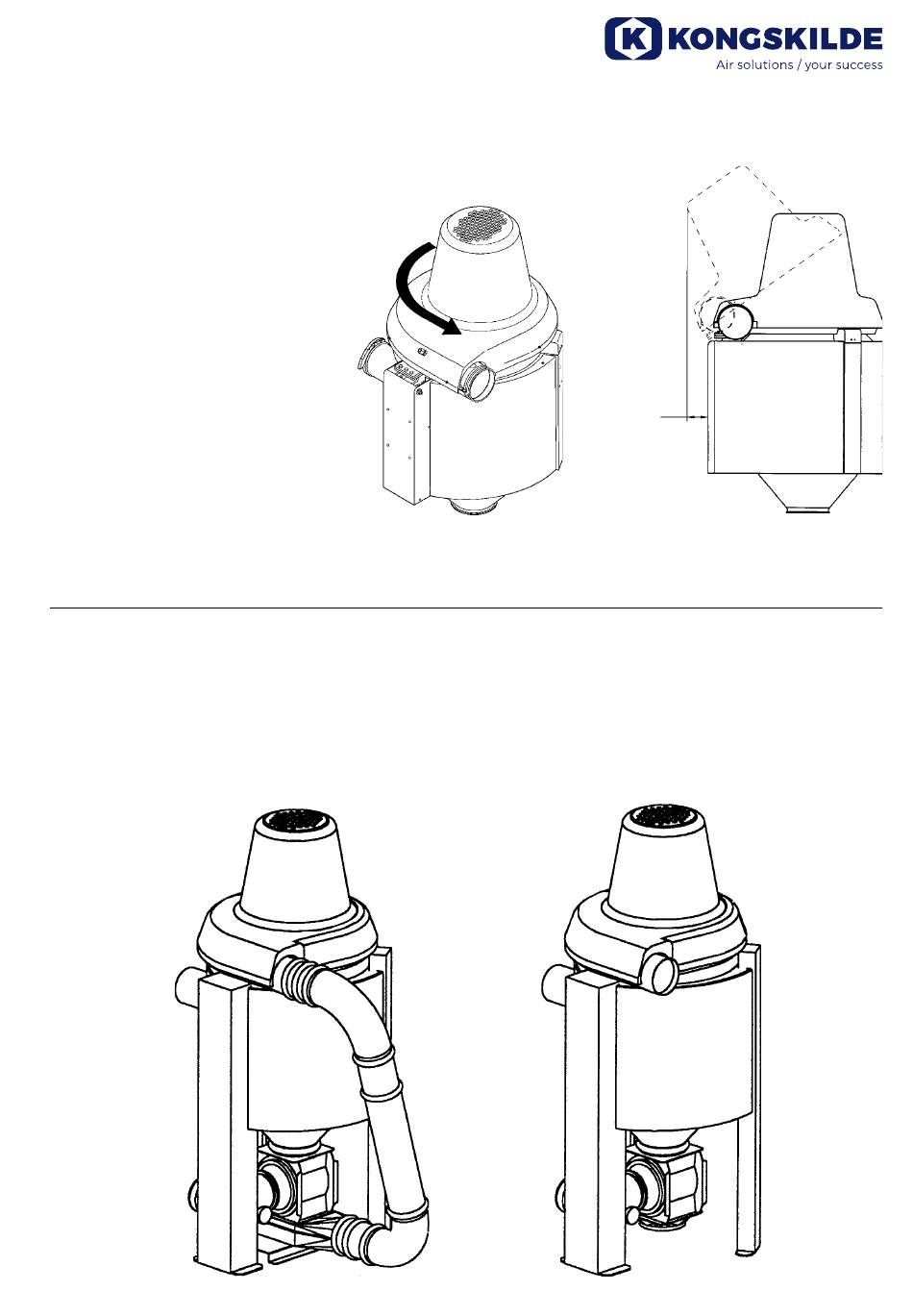

tions. Make sure that the blower
rotates in the correct direction.
• Make sure that there is suffi-
cient space for tilting the blower
up.
A rotary valve (or a closed contain-
er) must always be mounted under
the Multievacuator unit. If it is to
be used for suction/pressure con-
veying, the blower outlet must be
connected to the rotary valve with
an OK160 pipe. If the unit is to be
used for suction conveying only, a
rotary valve with vertical flow must
be mounted under the unit.
102 mm
The blower outlet can be connected
either to a filter or be allowed to
discharge direct into atmosphere.
