Checking/Changing the Burner Nozzle (D models)

■ Machine shut down and cool to the touch
Requirements
■ Machine properly positioned
CAUTION
Hot surface hazard. The machine surfaces may be hot.
► Allow the machine to cool for a minimum of ten minutes before touching it.
When Replace the burner nozzle annually, or if it is damaged.
Perform the procedure below to replace the burner nozzle.
Removing the 1. Remove the burner. See topic Removing and Installing the Burner.
nozzle

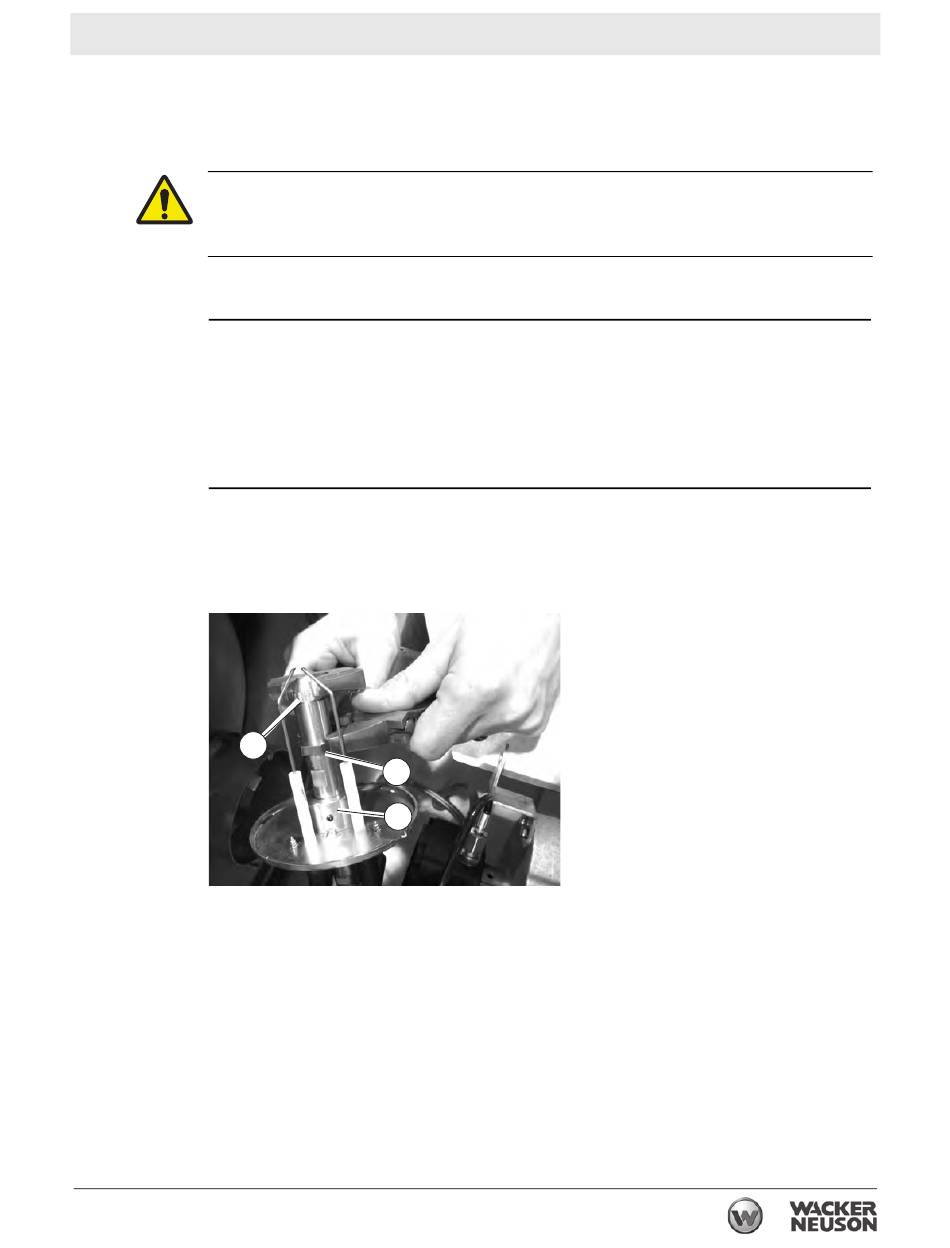

2. Place an adjustable wrench on the large fitting (a) on the nozzle base (c).
3. Place another adjustable wrench on the nozzle (b).
4. Rotate the nozzle counter-clockwise and remove it from the assembly.
Installing the 5. Install the new nozzle (b) onto the nozzle base (c).
nozzle
6. Tighten the nozzle (b) using an adjustable wrench. Rotate the wrench
clockwise.
7. Re-install the burner assembly. See topic Removing and Installing the Burner.
b
ghi_tx001464gb_FM10.fm
a
c
ghi_gr007408
