INSTALLATION INSTRUCTIONS

Mark Guide Lines
1. Mark a small line on the backwall at the height of the range or cooktop.
2. Measure 1 3/8" down from this line and scribe a level line the full length of the installation space. This
line represents the lower edge of the backsplash.
3. Position the bottom edge of the fl ange along the bottom edge of backsplash line. Align the center of
the backsplash with the center of the appliance. Mark each mounting hole (3 locations) with a pencil.
Set panel aside.
4. Measure up 21 3/8" from the bottom edge of backsplash line and draw a level line the full length of
the installation space. This line represents where the mounting brackets will attach to the wall.
Install Mounting Brackets
1. Using a stud fi nder, locate the edges of the wall studs within the installation space.
2. Mark the center of each stud and draw a line down the center of the stud.
3. Line up the top of the wall mounting bracket along the top edge line from "Mark Guide Lines" section.
4. Center a bracket along the centerline of each wall stud.
5. Mount each bracket to wall using two 10-12 x 2" screws per bracket (included with kit). A minimum of
two mounting brackets should be installed for the 30" and 36" models. The 48" model requires three
mounting brackets.
Attach Shelf Brackets

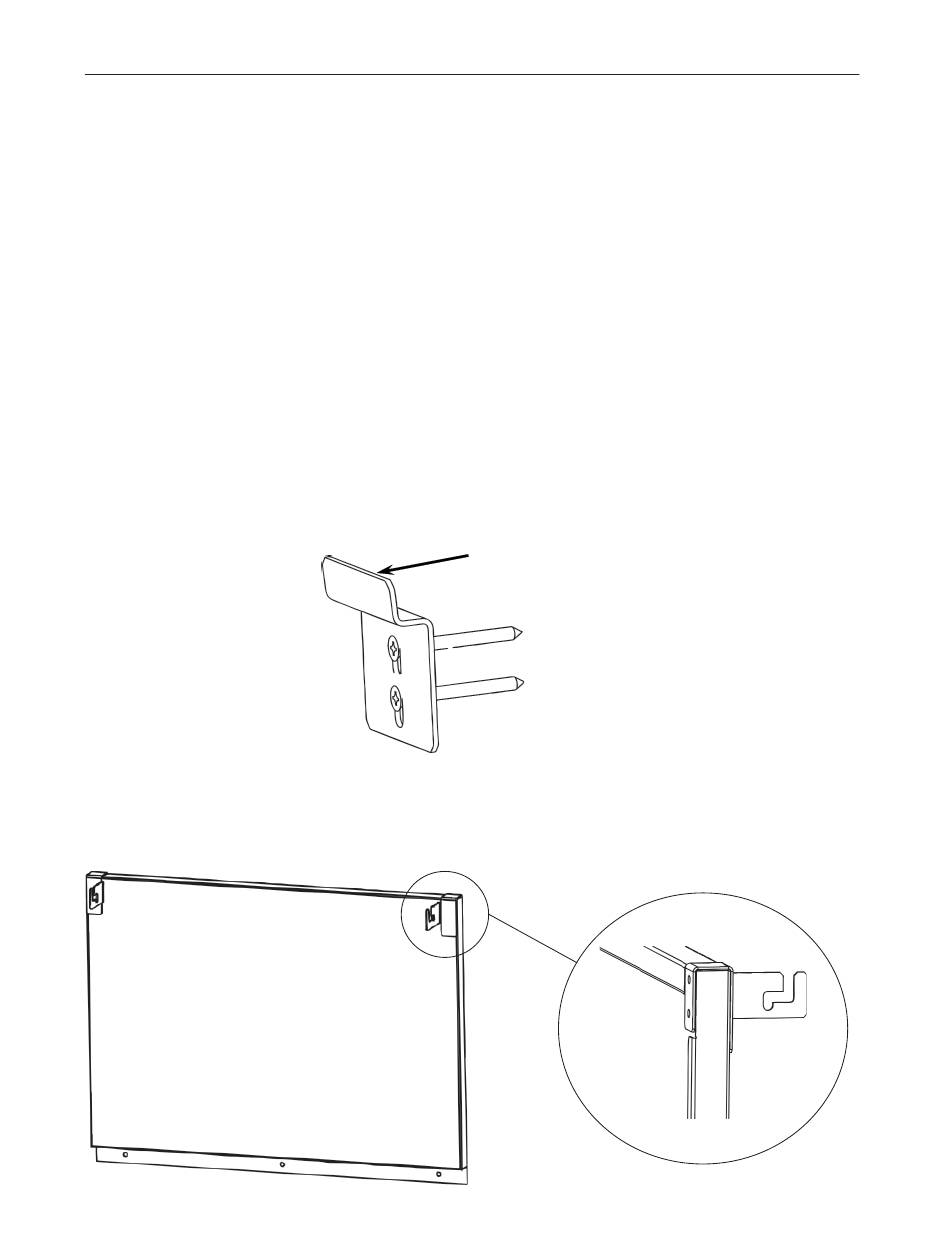

1. Place the shelf brackets on the top of the Backsplash as shown in the picture.
2. Attach the bracket to the Backsplash using two 8-18 x ½" screws.
Align this surface
with the guide line
3
Rear view
