DGE−...−ZR/−SP

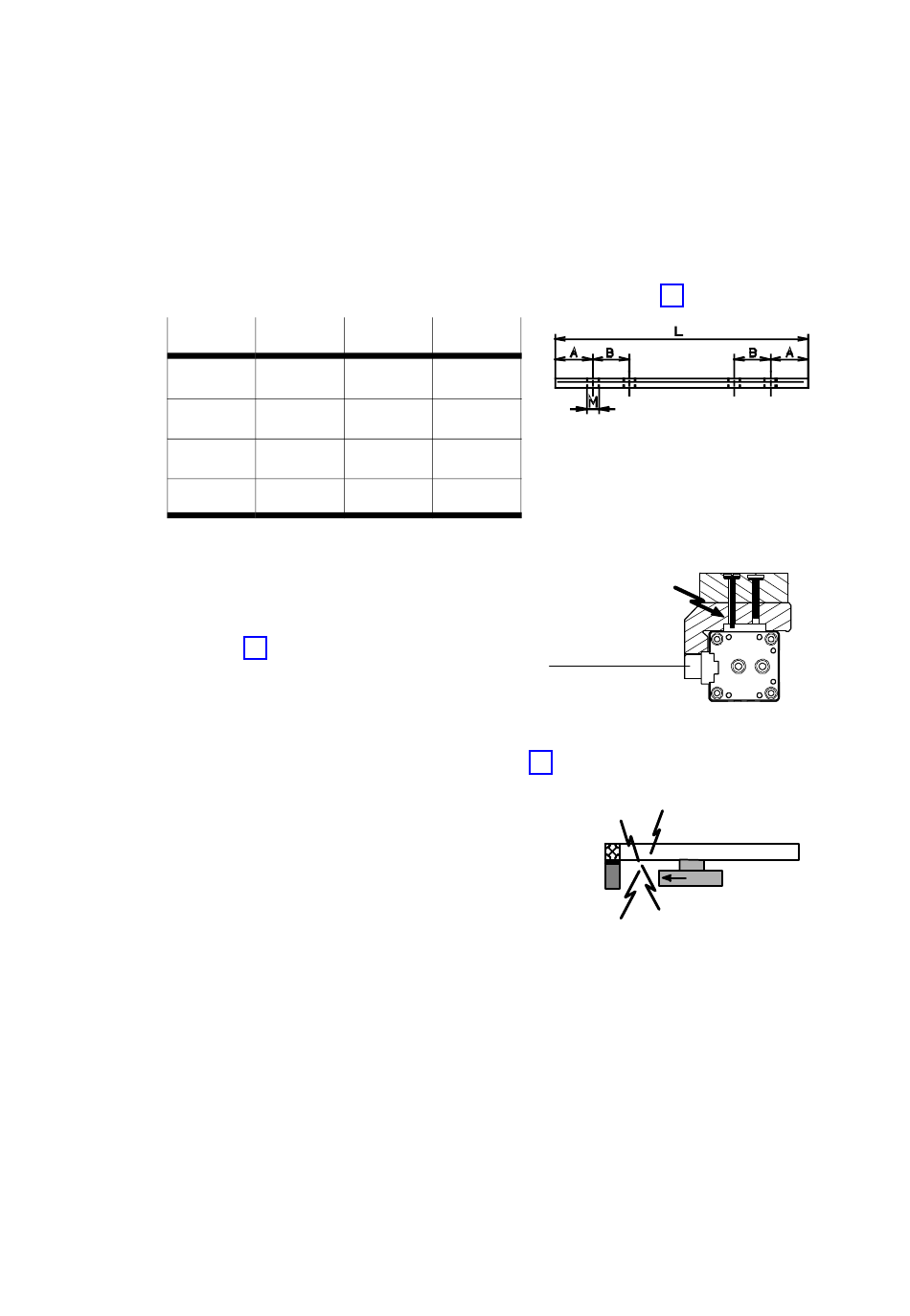

To mount the effective load:
· Mount the effective load in one of the following ways:
1. on the slide: with slot nuts NSTL−... in the grooves ( aA in Fig. 1).
NSTL
L
A
B
M
Fig. 19: Dimensions of the slot nuts NSTL−...
2. On the slide: with centring sleeves/pins
(accessories) at the centring recesses
( aB in Fig. 1).
The screw−in depth must be less than
the threaded holes.
3. For DGE without slide:
On the through holes of the driver (N" in Fig. 20).
With mass geometries with projection in the
longitudinal direction of the slide:
· Make sure that the effective load does not
strike against the motor mounting kit or
the motor.
52
25 40
100 166
13 25
15 20
M5 M5
63
229
30
Fig. 18
35
M8
N
Fig. 20
Fig. 21
Festo DGE−...−ZR/−SP 0909f English
