38
Do not use less than the starting torques M
overleaf, which should be routed through the transducer, in non-positive
contact.
When locking, make sure that the transducer signal changes by no more than
0.1 %.
In the case of transducers with nominal forces 20 kN..100 kN, you can also
lock as follows for tensile loading:
• screw in knuckle eyes
• load transducer with 10..20 % of the nominal force
• tighten the lock nut of the lower knuckle eye
Static loading can also − in addition to using knuckle eyes − be carried
axially to the transducer through hardened (40...44 HRc) pressure plates that
have been given a plane-parallel surface. The transducer support structure
must also have an inflexible, hardened and plane-parallel surface.
Type
Z4A/20kN
Z4A/50kN
Z4A/100kN
Z4A/200kN
Z4A/500kN
HBM

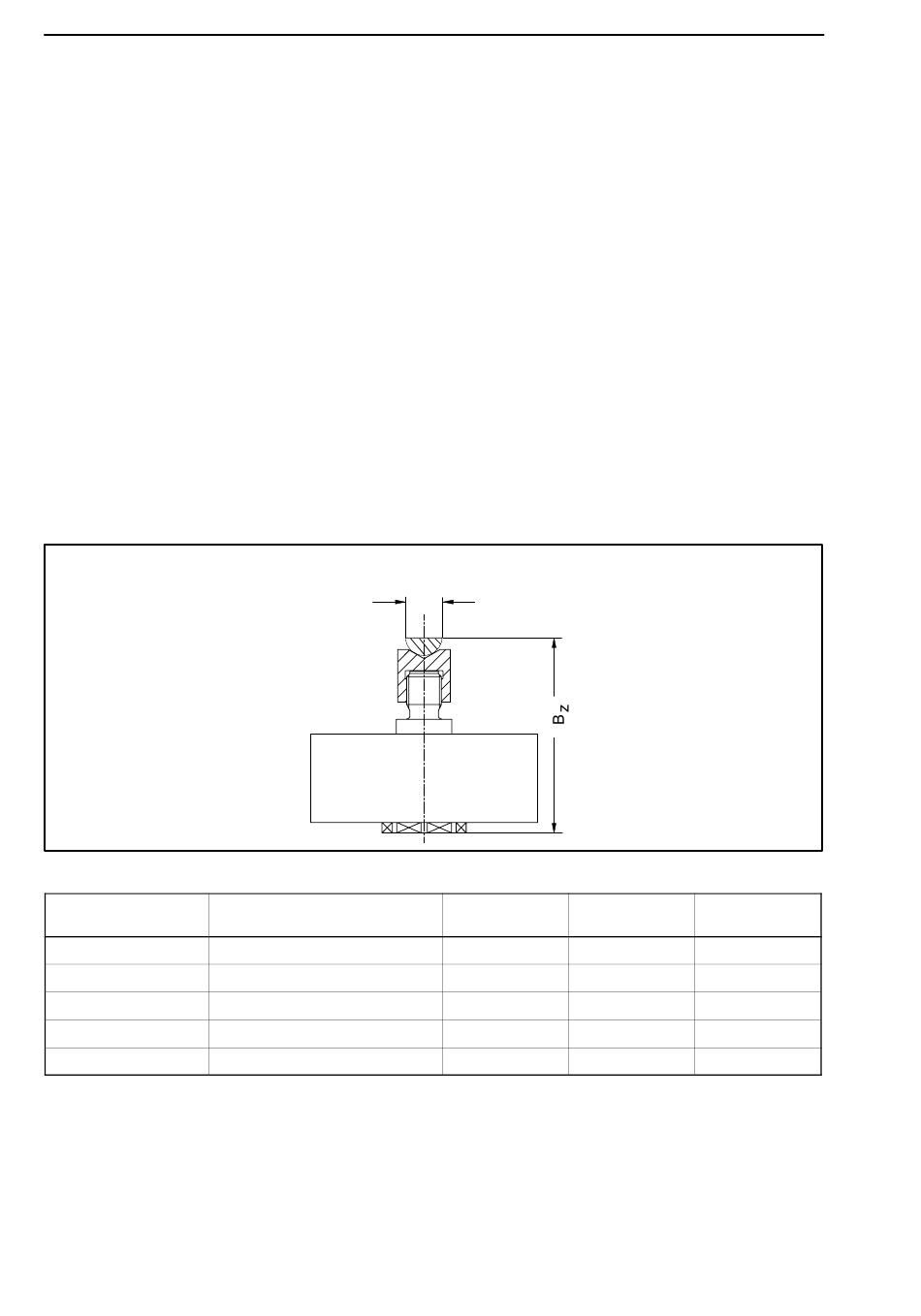

ZDK compressive force introduction accessories
ZDK accessories
Z4A/20kN/ZDK
Z4A/50kN/ZDK
Z4A/100kN/ZDK
Z4A/200kN/ZDK
Z4A/500kN/ZDK
recommended in the table
A
∅ D
Weight [kg]
0.10
0.18
0.40
1.26
5.80
Z4A
−0.1
B
D
∅
Z
−0.3
99 20
111 25
140 36
200 50
365 80
