4. If door or handle appears slightly tilted, you may adjust
the hinge receiver by rotating the large Torx-head
screw located directly below the hinge receiver with a
T-20 Torx driver. Rotate each screw respective to its
side and direction the door needs to be adjusted.

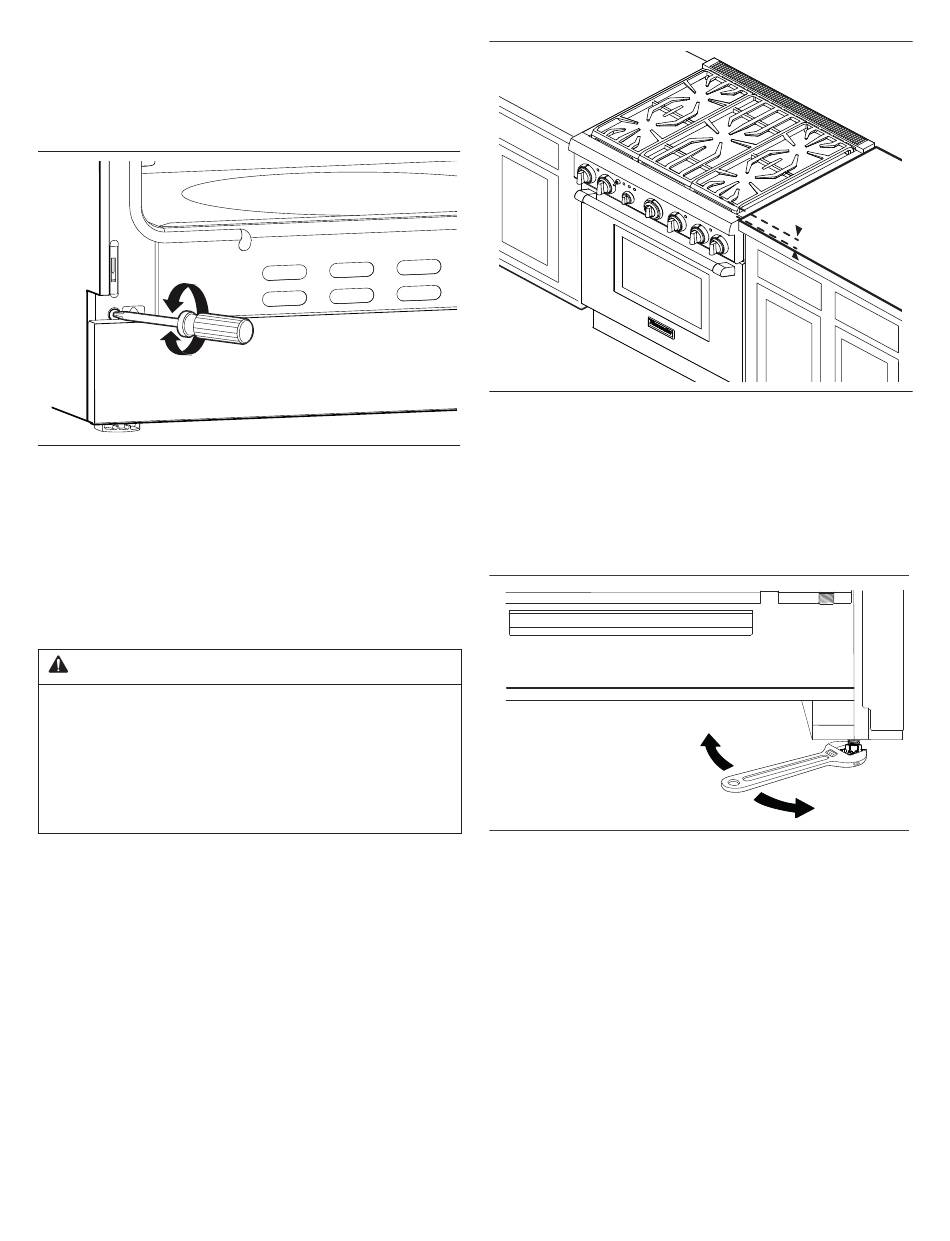

Figure 24: Hinge Receiver Adjustment Screw
Step 9: Placing and Leveling
the Range
Leveling Leg Adjustment
CAUTION
The top edges of the range's side panels must be on the
same or higher level as the adjacent countertop. DO
NOT operate range if sides are lower than the adjacent
cabinet. If the range is operated while at a lower height
relative to the adjacent cabinet, the cabinet could be
exposed to excessive temperatures, causing damage to
the cabinet and countertop (see Figure 25).
For proper performance, the range must be level. Priority
should be placed on ensuring that the oven cavities are
also level for optimum cooking performance.
1. Measure the countertop heights first with a tape
measure and add an additional 1/16'' - 1/8'' (2-3 mm).
Leveling legs should be adjusted so that the range
sides are at the same or higher level as the adjacent
cabinet. Adjust the legs accordingly prior to pushing the
range back to its final location (see Figure 25).
Figure 25: Adjusting the Height of the Range
2. Rotate the legs using a 12'' (305 mm) adjustable
wrench on the flat sides of each foot. Progression of
the height adjustments should be alternated
proportionally between the four corner legs, until the
top edges of the range's side panels are close to
matching the counter top height.
3. Final height adjustments of the two rear legs take place
before moving the range into its installed position in the
cabinet.
4. As the range is moved into its final, installed position,
verify that the Anti-Tip Bracket is in a position to
engage the leg (see "Step 4: Installing the Anti-Tip
Device" on page 10). This can be verified by viewing
through the opening near the floor.
5. With the range in the installed position, the final height
adjustments are made to the two front legs to ensure
proper alignment to the counter top.
1/16''-1/8''
(2-3 mm)
Figure 26: Leveling Legs
