Step 2:
Deciding on the
installation location
1

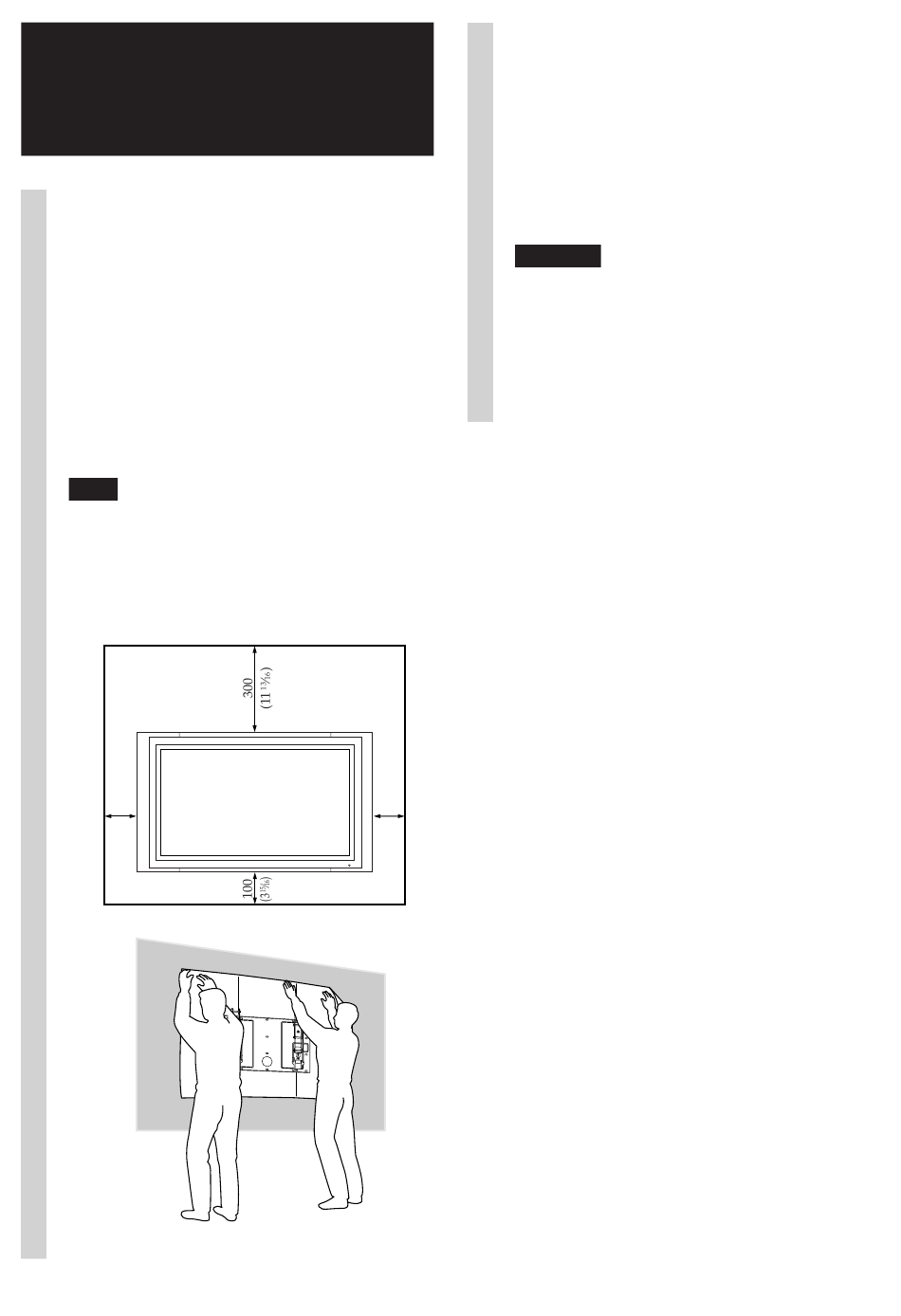

Place the paper template on a
perpendicular, flat wall and
decide on the installation
location.
Tape the supplied 3 sheets of the paper template
together with commercially available adhesive
tape. For details, refer to the instructions printed
on the paper template.
Allow for suitable clearance between the TV and
the ceiling and protruding parts of the wall as
shown in the diagram below.
Note
If you intend to route the cables in a wall, make a hole
in the wall beforehand to make sure that the cables
can be drawn into the wall. The position for the cable
hole is printed on the paper template and on page 17.
Unit: mm (inches)
100
(3 15 ⁄ )
16
8
(GB)
2
Referring to the paper template
and page 17, determine the
positions of the screws.
If you intend to route the cables
in the wall, also determine the
position of the cable hole and
bore a hole in the wall.
WARNING
The wall that the TV will be installed on should be
capable of supporting a weight of at least four times
that of the TV (page 16).
Make sure of the strength of the wall the TV will be
installed on. Reinforce the wall sufficiently, if
necessary.
100
(3 15 ⁄ )
16
