RECEIVE A LASER BEAM

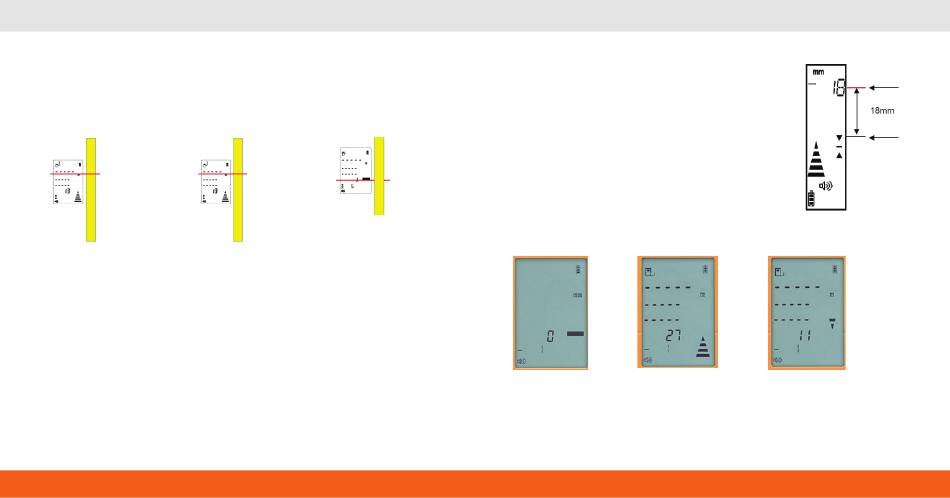

Power on the receiver and make all required settings (i. e. accuracy fine,
sound high). Carefully move the receiver up and down to detect the laser
beam
Indication 1
Indication 2
The „laser beam high"
The „laser beam low"
arrow is illuminated.
arrow is illuminated.
Acoustic signal:
Acoustic signal:
Fast, short beep.
Slow, short beep.
->Move the receiver
->Move the receiver
up.
down.
PLEASE NOTE:
If the distance between the rotating laser and the receiver is less than 1 m
erroneous measurements may occur.
22
MM INDICATION
In case the reference level of the receiver is e. g.
18 mm below the laser beam - this height difference
will be displayed by an exact numerical value (see
the left diagram).
Indication 3
The LED „0-position"
bar is illuminated.
Acoustic signal:
Continuous beep.
-> On level.
The laser beam is
exactly on-level.
further examples
The laser beam is
The laser beam is
27 mm above the
11 mm below the
reference point
reference point
(move the receiver
(move the receiver
up).
down).
