3.1.2. Radio-synchronized by TDF, DCF or GPS receiver version

► Connect TDF, DCF or GPS antenna on the inputs CODE of plug-in terminal (no
polarity).
☛
To position your antenna, please refer to instructions on antennas
CDG020/021 or web site www.gorgy-timing.fr section user manual.

3.1.3. DCF 24V wired version

► Connect DCF input to the terminal – and +
☛
Pay attention to the correct
polarity: wiring mistakes may cause

3.1.4. Versions ASCII RS232 ou RS485

► Connect ASCII RS232 or RS485 signal on the plug-in terminal according to table
below:
ASCII 1 Terminal
BASCII 2 Terminal
GND Terminal
► After connecting the ASCII code, press the "reset" button on the back of the product.

3.1.5. SMPTE Version

► Connect SMPTE signal on the terminals "ASCII" and "GND".

3.1.6. NTP Version

► Connect Ethernet cable on Ethernet port located at rear panel of the product.
74
usermanual "MDE-ANTENNES-0085" available on:
severe damages.
ASCII RS232C

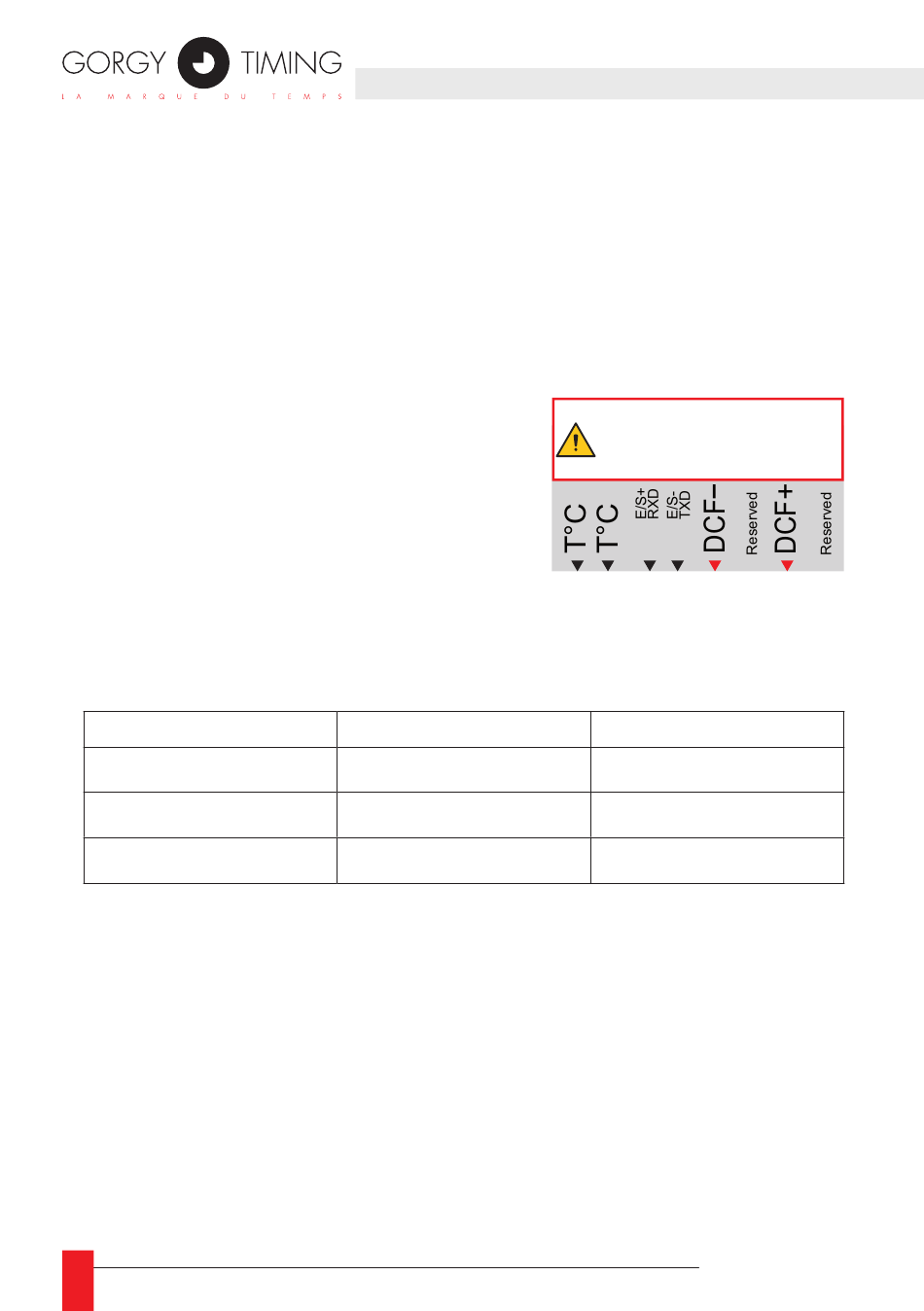

Attention to DCF code polarity
Attention polarité code DCF
Achtung: DCF Code Polarität
Atención con la polaridad del código DCF
TXD
RXD
GND
ASCII
232/485
ASCII RS422/485
E / S -
E / S +
GND
