ENGLISH

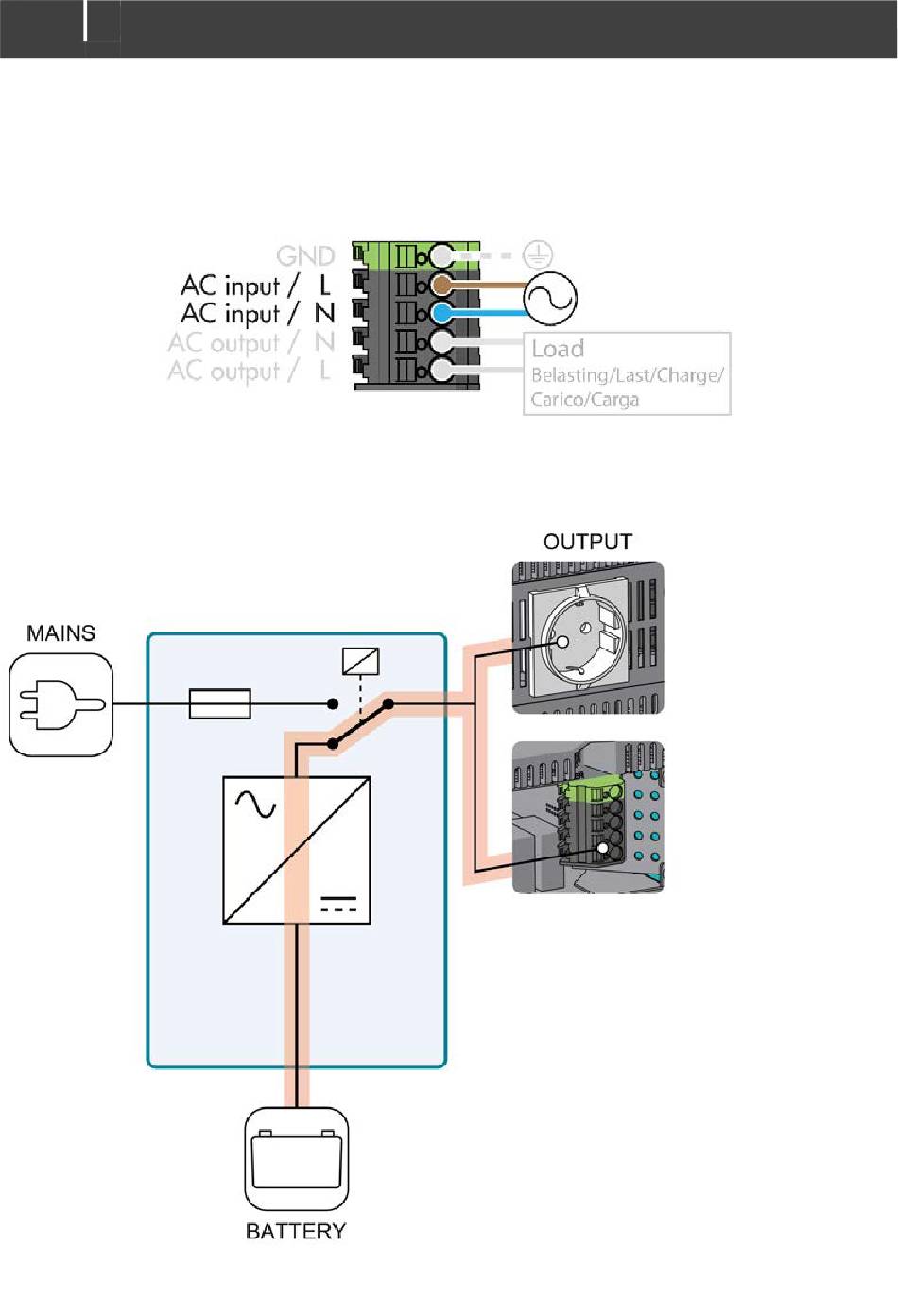

7. AC input transfer system
The AC Master 2500-3500 switches from Inverter mode to Bypass mode if the power provided on
the AC input meets the voltage and frequency requirements as set with the DIP switches. In Bypass
mode the AC input is directly connected to the AC output, saving battery power. The AC input is
available on the hard-wire terminal behind the front panel.
The AC input is equipped with a 20 Amp circuit breaker.
The AC input mode is configured with DIP switch 2, see section 8.
Inverter mode
