INTEGRAL POWER II

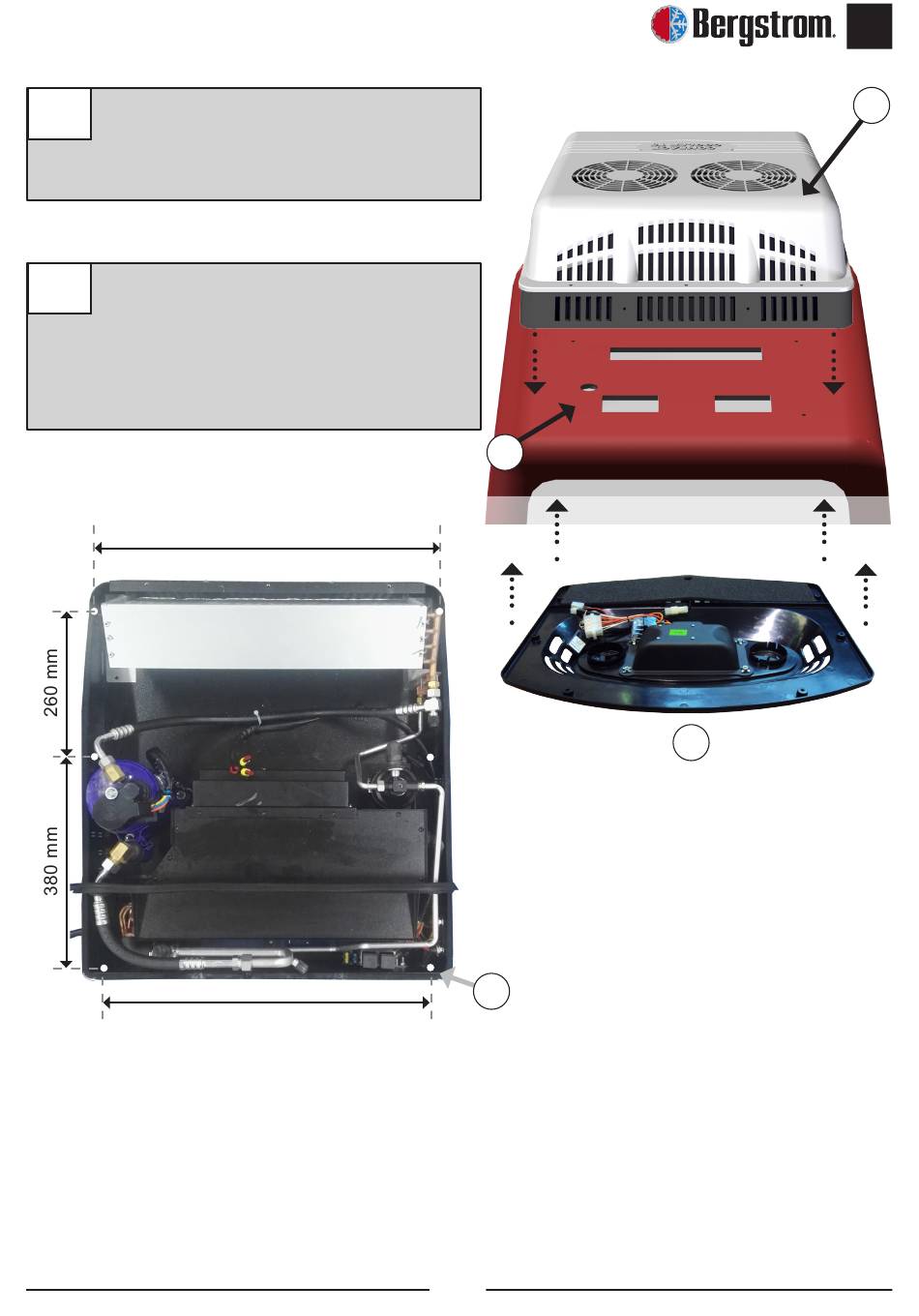

Position the Integral Power II unit on the roof,
1
taking into account that the final position must
correspond to the front supplied, ensuring it
is on a flat surface.
Once the position is defined, remove the case
2
and mark (6) boreholes (Y), then align the (4)
template boreholes with the (4) rear boreholes
in the roof (figure 3).
Note the arrow indicating the operation
direction.
620 mm
585 mm
T
Y
11
EN
C
1
