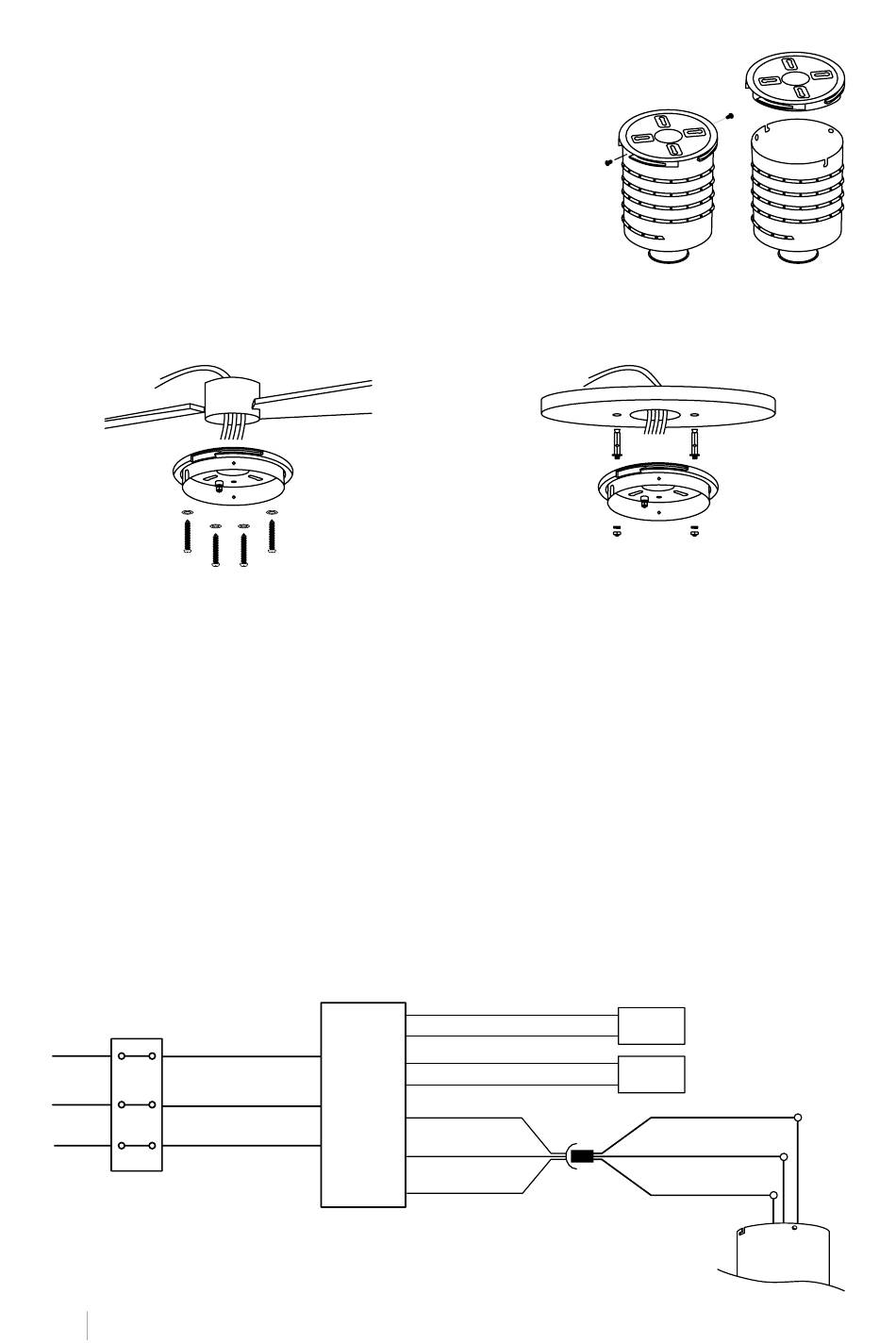

FIX I NG TH E MOU NTI NG B R ACKE T
• Check that the ceiling where you intend to mount the fan is
stable and capable of safely supporting the weight of the
fan.
• Do not fix the mounting bracket directly on ceilings less
than 10mm to avoid the risk of the screw loosening and
coming out.
1. Unscrew the side screws of the ceiling mounting bracket
that are anchored to the fan motor.
2. Carefully remove the mounting bracket to install it on the ceiling.
Wood roof
Drill the necessary holes and then secure
the mounting bracket with the wood screws
and washers to the ceiling joints.
NOTE: This fan can also be installed in a false ceiling, for this you must use fixing screws
with spring lever (not included).
• Mark the correct position of the holes and fix the mounting bracket using the screws with
metal anchors or screws and washers suitable for the type of ceiling chosen.
• Verify proper installation of the bracket before hanging the fan. The mounting bracket
must support the entire weight of the fan.
W IRING CON N ECTI ON
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is tight.
Ground
(green / yellow)
Ground
L
L Input (black)
N
N Input (white)
E NGL I SH
10
Drill holes with an 8mm drill bit, accord-
ing to the length of the expansion screws.
Next, secure the mounting bracket to the
ceiling with the expansion screws.
Light L2 (brown)
Light N2 (gray)
Light L1 (white)
Light N1 (blue)
Remote
control
Motor U (brown)
reciever
V (red)
W (gray)
Concrete roof
Light 2
Light 1
DC L Motor (brown)
DC L Motor (red)
DC L Motor (gray)
