MOUNTING THE STEERING WHEEL

Place the machine on a level surface and align the front wheels straight.
Then carry out the following installation steps:

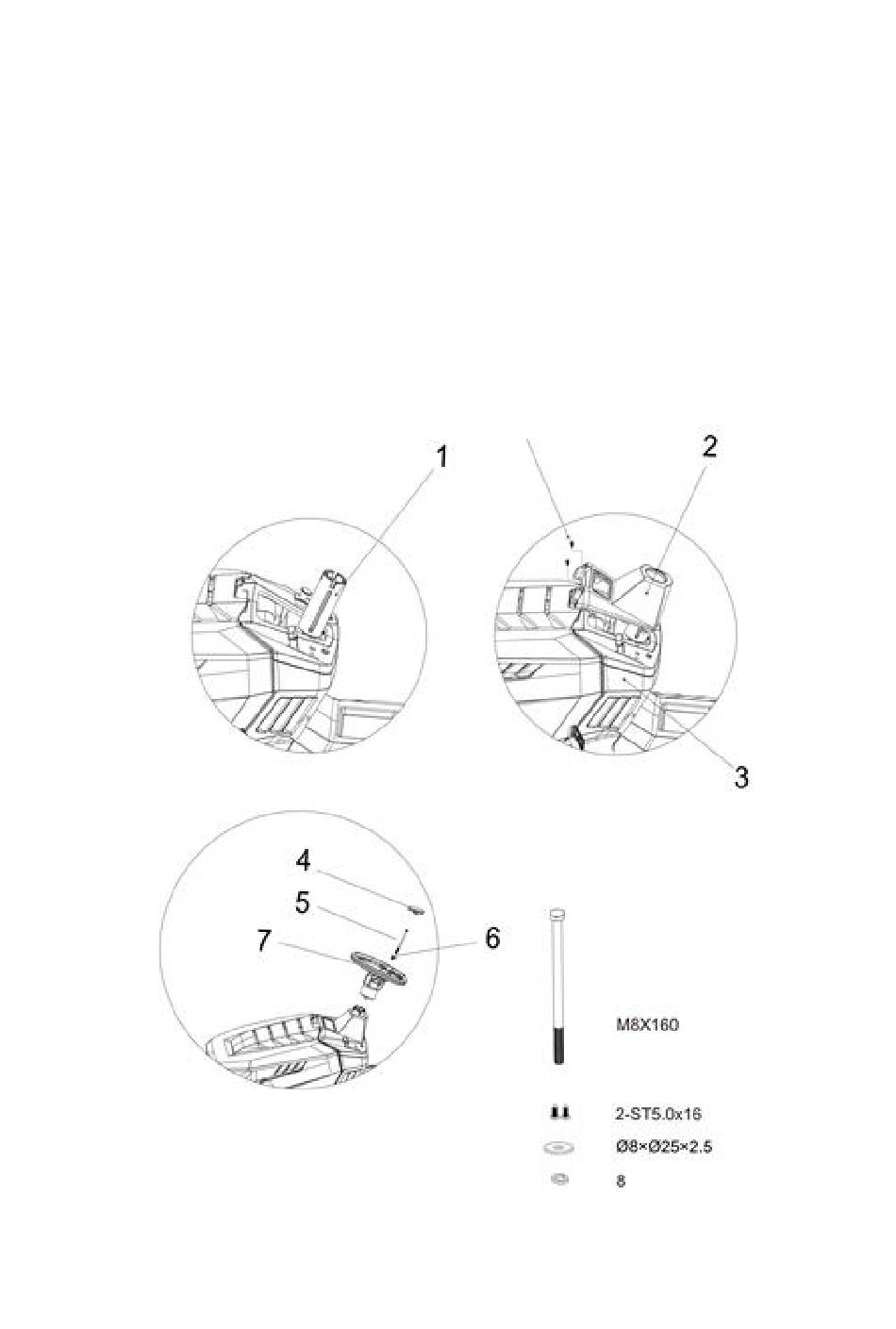

1. Place the sleeve (1) on the steering shaft.
2. Attach the lower steering wheel cover (2) to the steering column base (3) and secure with two
screws (ST5.0×16).
3. Fit the steering wheel (5) and secure using the washers (6) and the Allen key supplied.
4. Fit the steering wheel cover (4) and click into place.
NOTE:
Ensure that the steering wheel is correctly aligned during installation.
