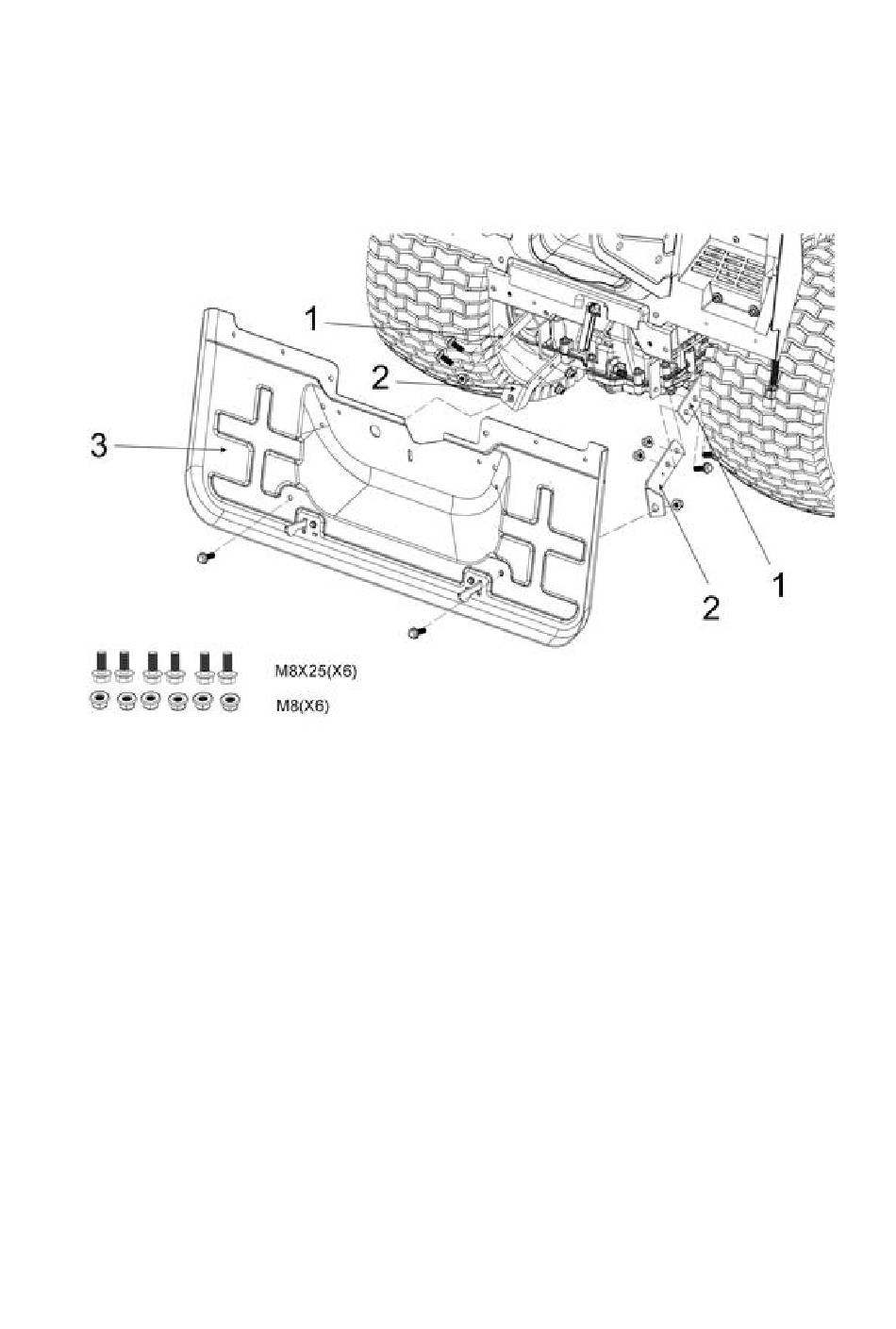

MOUNTING THE COMPONENTS OF THE REAR GUIDE PLATES
1. Fasten the two brackets (2) to the frame (1) with 4 screws (M8×25) and 4 nuts (M8).
2. Fit the rear plate (3) to the brackets using 2 screws (M8×25) and 2 nuts (M8).
