MOUNTING THE ANTI-SCALP WHEELS

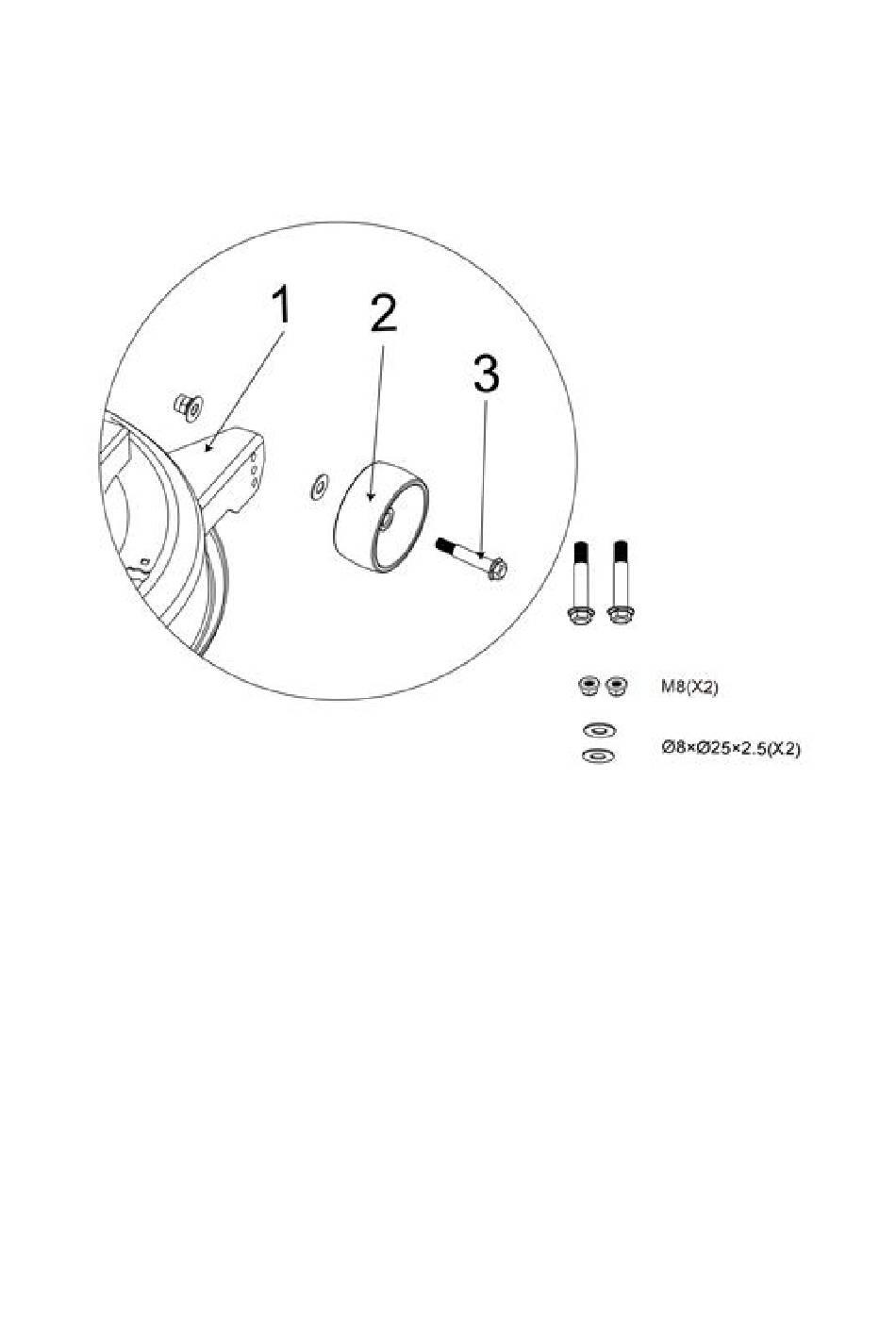

Fit the anti-scalp wheel (2) to the mower deck (1) using 1 screw (3), 1 washer (Ø8×Ø25×2.5) and 1 nut
(M8).
Carry out the same installation step on the opposite side.
Note:
The anti-scalp wheel can be mounted in three mounting holes to adjust it to the respective cutting
height and ground conditions.
We recommend using the middle hole as the starting position and then checking the mowing
performance on your lawn.
•
If the mower deck touches the ground or follows uneven ground too closely, the lower hole
should be used. In this position, the wheel sits lower.
•
If the support wheel touches the ground too often or you want the mower deck to run more
freely, the upper hole should be selected. In this position, the wheel sits higher.
