AutoGuide Plus

7.3.2 Start screen

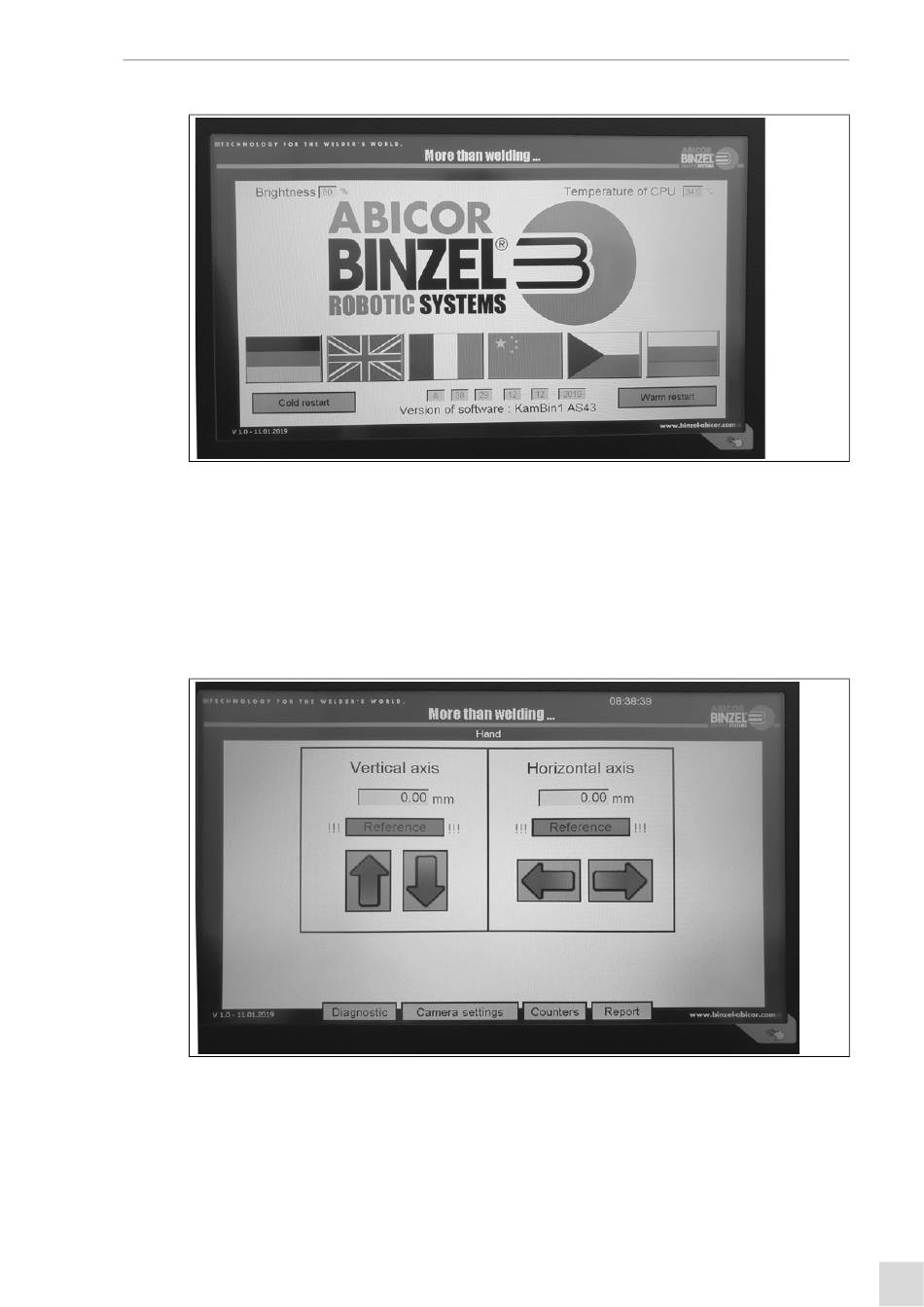

Fig. 16 Start screen
In the start screen, the parameters of time, hour, year, brightness of the screen, and language can be set by pressing
the buttons.
Press the "Warm restart" button to restart the control system.
Press the "Cold restart" button to cold restart the control system. Temporarily saved settings, such as the home position,
start tracking, and work position are deleted and the touchscreen is recalibrated.
Prior to the cold start, a confirmation prompt appears. It must be confirmed.
7.3.3 Vertical/horizontal axes
Fig. 17 Vertical/horizontal axes
Before starting the control system, a reference drive for both axes must be run.
During the reference drive, the axes move past a reference sensor that is integrated in the system to determine the zero point.
The reference drive starts once you click the "Reference" button. The button is red if it is not set. The AutoGuide cannot be
completely controlled until the references have been defined.
Use the arrow buttons or the joystick to adjust the welding torch and the motors of the cross slide.
Press the Hand button to display the current position of the axes.
