OPERATION / BEDIENUNG / UTILISATION / OPERACIÓN / OBSŁUGA / UTILIZZO
EN
NOTES
• When the spotlight is properly connected to the mains, "Welcome to Cameo", the model name and software version appear successively on the
display during the start-up process. After this operation, the spotlight is ready for use and starts in the mode that was previously selected.
• If one of the DMX operating modes is activated and there is no DMX signal at the DMX input, the currently selected DMX address is displayed and
the characters on the display will start to flash.
• After approximately 1 minute of inactivity, the display will show the currently enabled operating mode.
• Fast Access Feature: In order to simplify the menu guide, the device has an intelligent menu structure which allows menu and sub-menu items
that were last selected to be accessed directly. 1. Pressing MODE and ENTER simultaneously will take you directly to the sub-menu item that was
last edited and allows you to instantly change the corresponding value as desired (DMX start address and all operating modes). 2. Pressing MODE
will take you directly to the menu item that was last selected and edited; now press ENTER again to access the sub-menu items to adjust individual
settings (DMX start address and all operating modes).
• Before changing device settings, ensure that the operating unit is dry and free of dust, so as not to impair its functionality.
• The display can be rotated by 180° by pressing UP, as soon as the main screen is shown in the display.

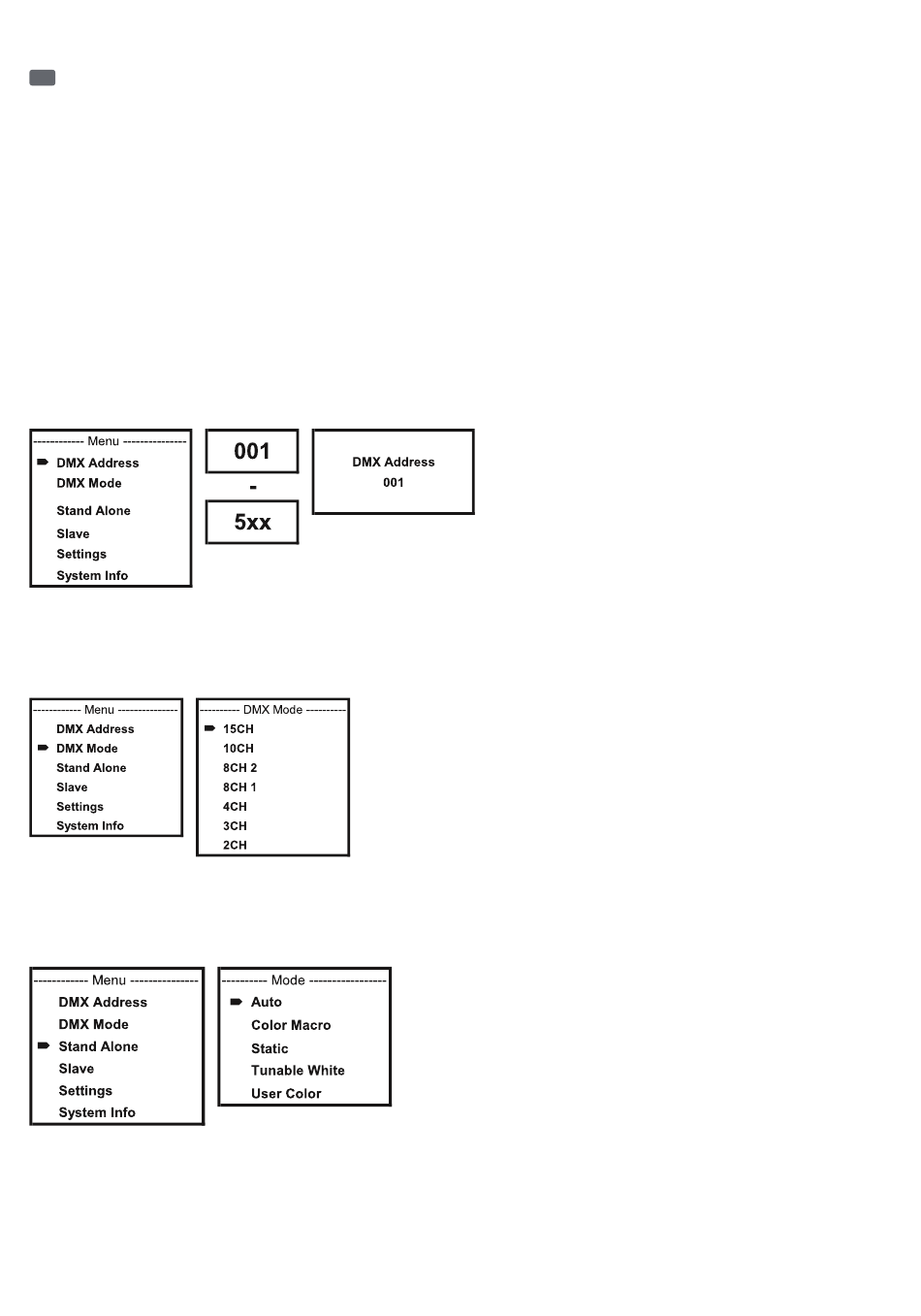

CONFIGURE DMX START ADDRESS (DMX Address)
Press MODE to access the device settings selection menu (--- Menu ---). Use UP and DOWN to select the menu item "DMX Address" (observe arrow)
and confirm with ENTER. The display will show a three-digit number field and you can use UP and DOWN to configure the desired DMX start address
(highest value depends on DMX mode). Confirm with ENTER and press MODE to return to the main display (in the example, "DMX address 001"). If
there is no DMX control signal, the display characters will flash. Flashing stops as soon as a control signal is present.
CONFIGURE DMX MODE (DMX Mode)
Press MODE to access the device settings selection menu (--- Menu ---). Use UP and DOWN to select the menu item "DMX Mode" (observe arrow)
and confirm with ENTER. In the submenu you can choose between the following DMX modes: "15CH", "10CH", "8CH 2", "8CH 1", "4CH", "3CH" and
"2CH". Confirm your selection with ENTER. DMX tables with the channel assignments can be found in these instructions under DMX CONTROL.
CONFIGURE STANDALONE MODE
Press MODE to access the device settings selection menu (--- Menu ---). Use UP and DOWN to select the menu item "Stand Alone" (observe arrow)
and confirm with ENTER. Now use UP and DOWN to select one of the following standalone modes: "Auto", "Color Macro", "Static", "Tunable White"
and "User Color". Confirm your selection with ENTER.
