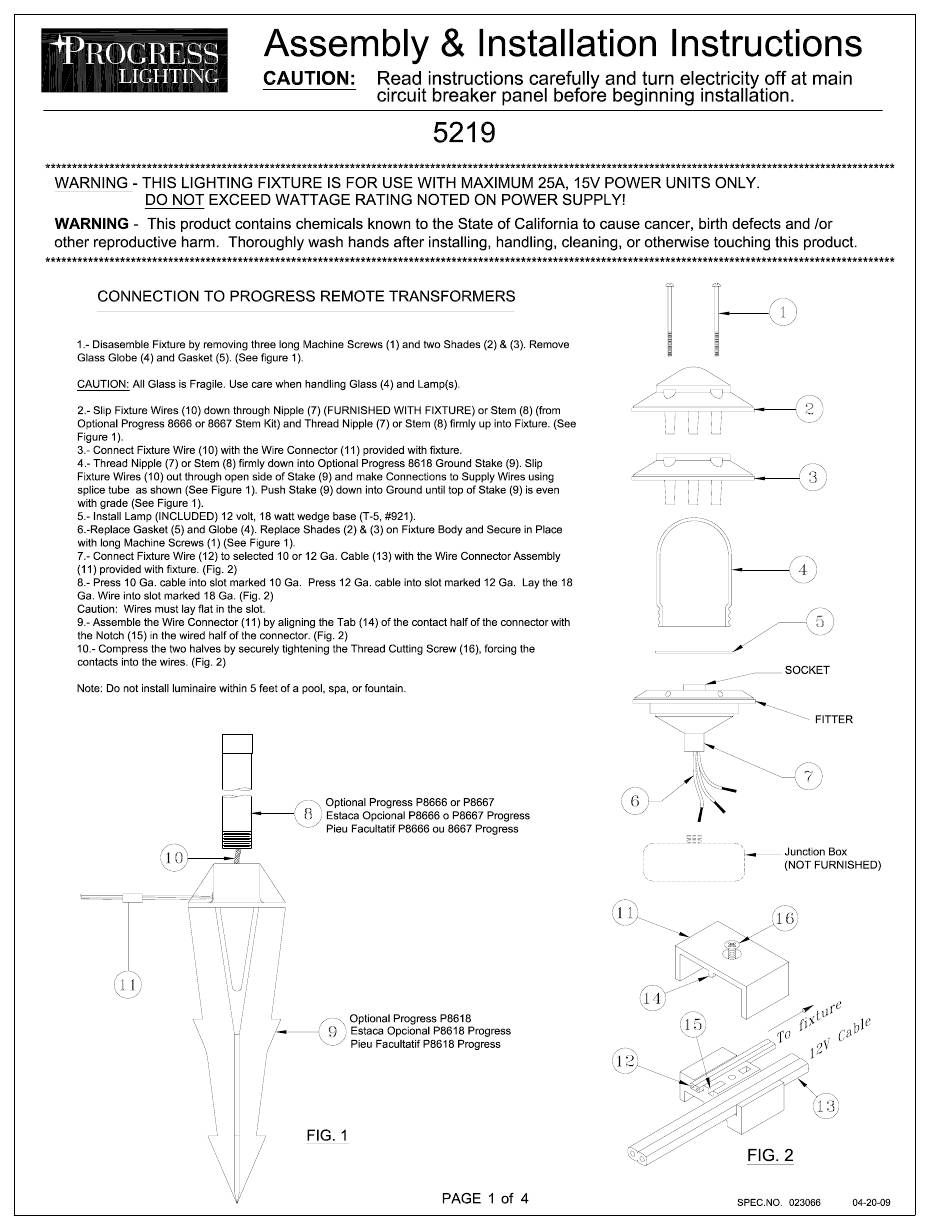

Progress Lighting 5219 Instructions De Montage Et D'installation

OGRESS
LIGHTING
WARNING - THIS LIGHTING
DO NOT EXCEED
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects and lor
other reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
CONNECTION TO PROGRESS
1 - Disasemble Fixture by removing three long Machine Screws (1 ) and two Shades (2) & (3). Remove
Glass Globe (4) and Gasket (5). (See figure 1)
CAUTION All Glass is Fragile Use care when handling Glass (4) and Lamp(s).
2. Slip F,xture Wres (10) down through Nipple (7) (FURNISHED WITH FIXTURE) or Stem (8) (from
Optional Progress 8666 or 8667 Stem Kit) and Thread Nipple (7) or Stem (8) firmly up into Fixture. (See
Figure 1)
3.- Connect Flxture W.re (10) with the W.re Connector
4 - Thread Nipple (7) or Stem (8) firmly down Into Optional Progress 8618 Ground Stake (9). Slip
Fixture Wires (10) out through open side of Stake (9) and make Connections
splice tube as shown (See Figure 1). Push Stake (9) down Into Ground until top of Stake (9) IS even
with grade (See Fgure 1)
5. Instal Lamp (INCLUDED) 12 volt, 18 watt wedge base (T-5, #921)
6.-Replace Gasket (5) and Globe (4). Replace Shades (2) & (3) on Fixture Body and Secure •n Place
with long Machine Screws (1) (See Figure 1).
7.- Connect Fixture Wire (12) to selected 10 or 12 Ga. Cable (13) wth the Wire Connector Assembly
(11) provided With fixture. (Fig. 2)
8.- Press 10 Ga. cable into slot marked 10 Ga. Press 12 Ga. cable into slot marked 12 Ga. Lay the 18
Ga. Wire into slot marked 18 Ga. (Fg. 2)
Caution• Wires must lay flat in the slot
9. Assemble the Wire Connector (II) by alignng the Tab (14) of the contact half of the connector with
the Notch (15) n the Wired half of the connector.
10.- Compress the two halves by securely tightening the Thread Cutting Screw (16), forang the
contacts into the wres. (Fg 2)
Note: Do not install w thin 5 feet of a pool, spa, or fountan
10
11
Assembly
CAUTION: Read instructions carefully and turn electricity off at main
circuit breaker panel before beginning installation
5219
FIXTURE IS FOR USE WITH MAXIMUM
WATTAGE RATING NOTED
REMOTE TRANSFORMERS
(11) provided with fixture
(Fig. 2)
Optional Progress P8666 or P8667
8
Estaca Opcional P8666 0 P8667 Progress
Pieu Facultatif P8666 ou 8667 Progress
Optional Progress P8618
9
Estaca Opaonal P8618 Progress
Pleu Facultatif P8618 Progress
FIG 1
& Installation
25A, 15V POWER
ON POWER SUPPLY!
to Supply Wires using
11
12
PAGE 1 of 4
Instructions
UNITS ONLY.
1
2
3
4
SOCKET
7
6
Junction
(NOT FURNISHED)
16
14
15
TO
FIG 2
SPEC NO 023066
5
F I-rrER
Box
tore
13
04-20-09
