Progress Lighting 5233 Instructions De Montage Et D'installation

OGRESS
LIGHTING
WARNING - If any Speaal Control Devices are used With this Fixture, Follow the Instructions Carefully to assure full
compliance with N E.C. requirements.
CAUTION - All glass ISfragile, use care when handling Glass Shade and lamps
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects and [or
other reproductive harm. Thoroughly wash hands after Installing, handling, cleaning, or otherwise touching this product.
6
7

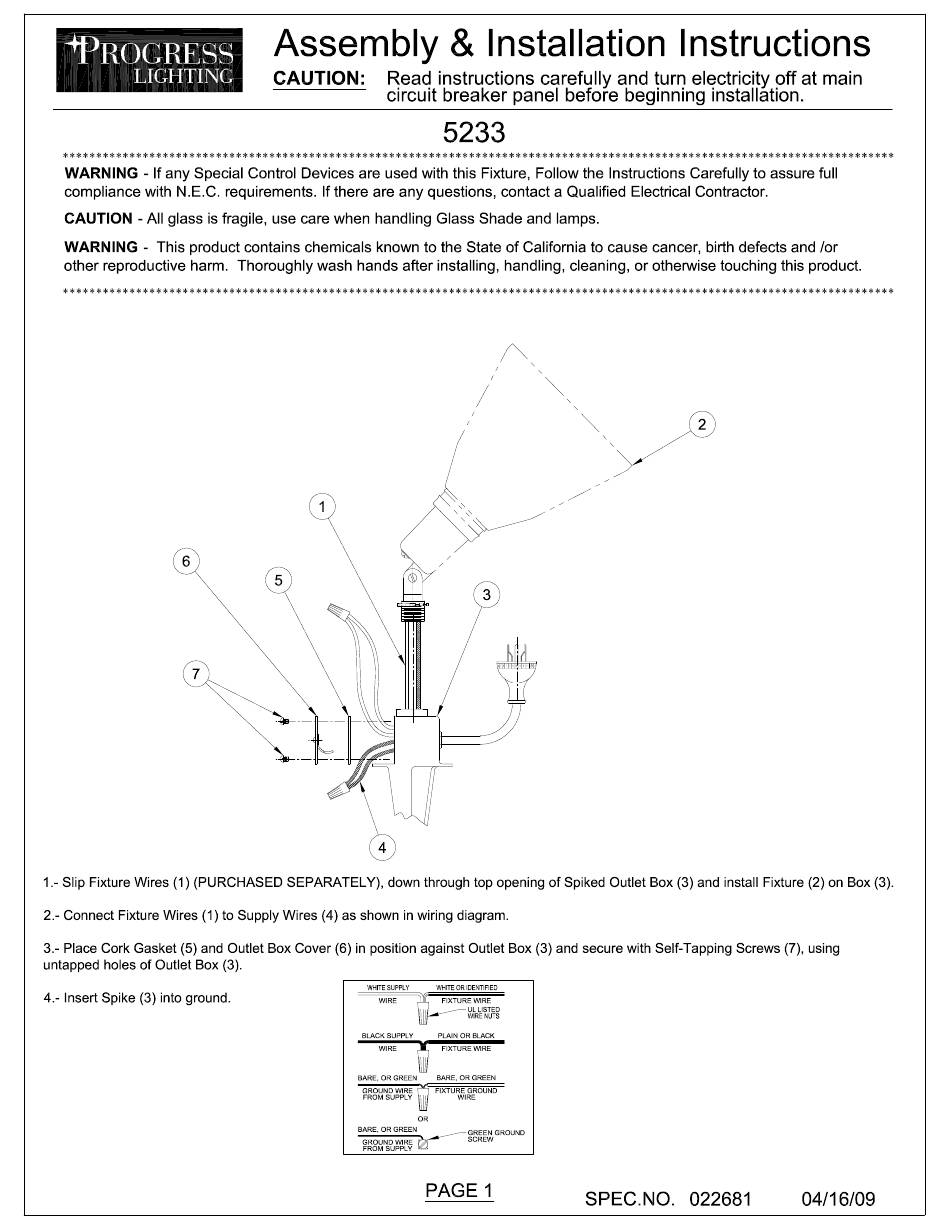

Slip Fixture Wires (1) (PURCHASED SEPARATELY), down through top openng of Spiked Outlet Box (3) and install Fixture (2) on Box (3)
1
2 - Connect Fixture Wires (1) to Supply Wires (4) as shown in wiring diagram
3 - Place Cork Gasket (5) and Outlet Box Cover (6) In position aganst
untapped holes of Outlet Box (3)
4 - Insert Spike (3) into ground
Assembly & Installation
CAUTION: Read instructions
circuit breaker panel before beginning installation.
5233
If there are any questions, contact a Qualified Electrical Contractor.
1
5
4
WHITE SUPPLY WHITE OR IDENTIFIED
WIRE FIXTURE
3LACK SUPPLY PLAIN
WIRE FIXTURE
BARE, OR GREEN BARE.
GROUND WIRE FIXTURE
FROM supp Y
OR
BARE, OR GREEN
GROUND WIRE
FROM SUPPLY
PAGE
carefully and turn electricity off at main
3
Outlet Box (3) and secure with Self-Tapping
WIRE
UL LISTED
WIRE NUTS
OR BLACK
WIRE
OR GREEN
GROUND
WIRE
GREEN GROUND
SCREW
1
SPEC.NO
Instructions
2
Screws (7), using
022681 04/16/09
