Electrical Connection
KFW-51...ETW
A1
A1
Electrical connection:
• Disconnect the system from all power.

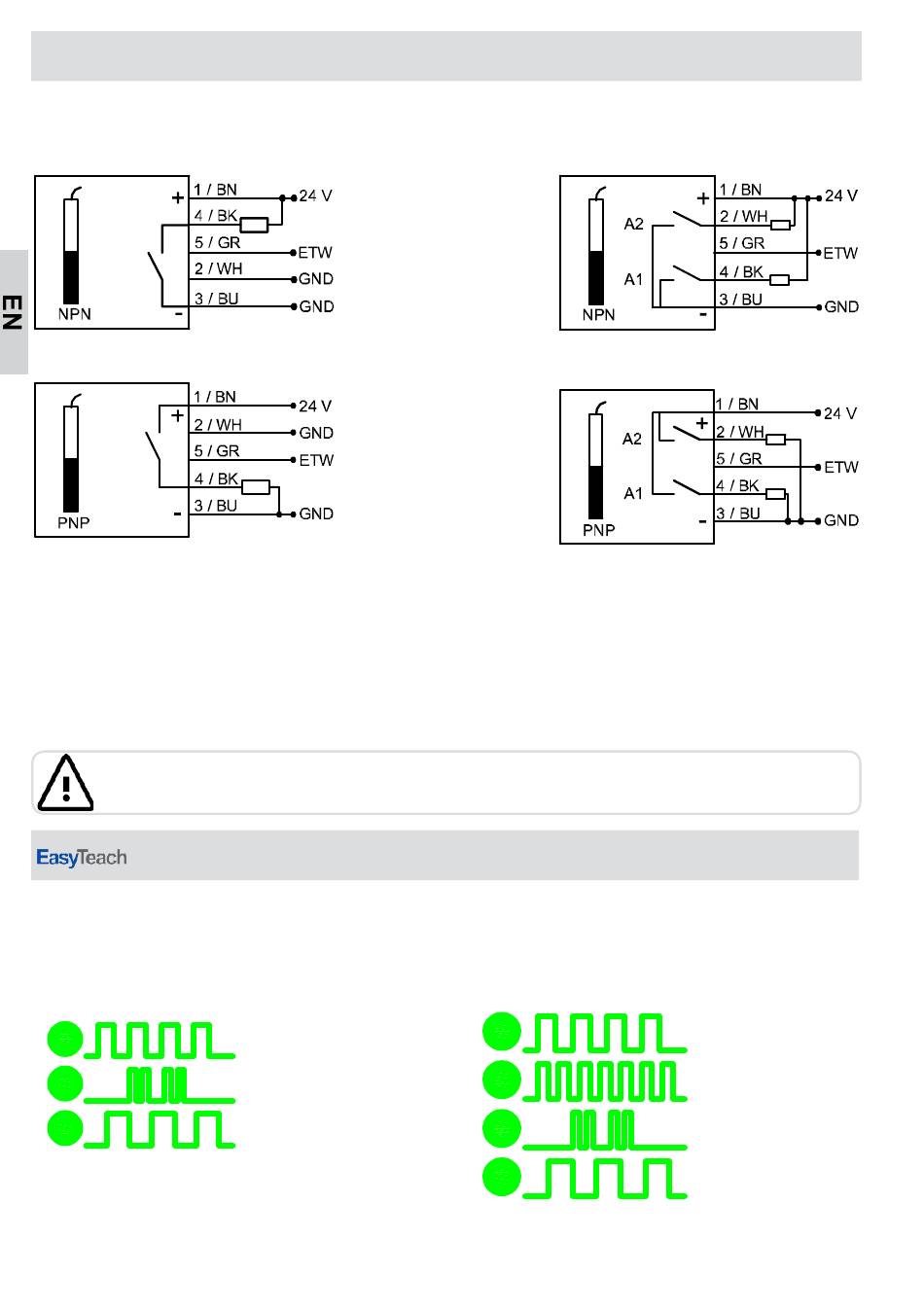

• Connect the probe according to the connection diagram.
• Switch power on.
• The sensor automatically detects during power-up for each switching output individually, if the switching
output is connected to a „-" (= PNP) or „+" (= NPN) load.
Load resistors of the switching outputs (A1, A2) ≤ 20 kOhm.
Attention:
For inductive loads, a corresponding protective circuit (e.g. freewheeling diode) must be provided.
Chart:
KFW-51...ETW
LED green / Output adjustment
26
Adjustment S1
Factory set
Test
KFW-52...ETW
KFW-52...ETW
LED green / Output adjustment
Adjustment S1
Adjustment S2
Factory set
Test
