to. the. flue. or. to. the. stack. through.
flue. ducts.. In. making. the. connec-
tion. observe. the. dimensions. given.
and. use. sealing. materials. capable.
of. withstanding. mechanical. stresses.
and.flue.heat.over.time..
At.any.point.of.the.flue.the.burnt.gas.
temperature.shall.not.exceed.the.dew.
point. temperature.. Maximum. three.
changes. of. direction. can. be. made,.

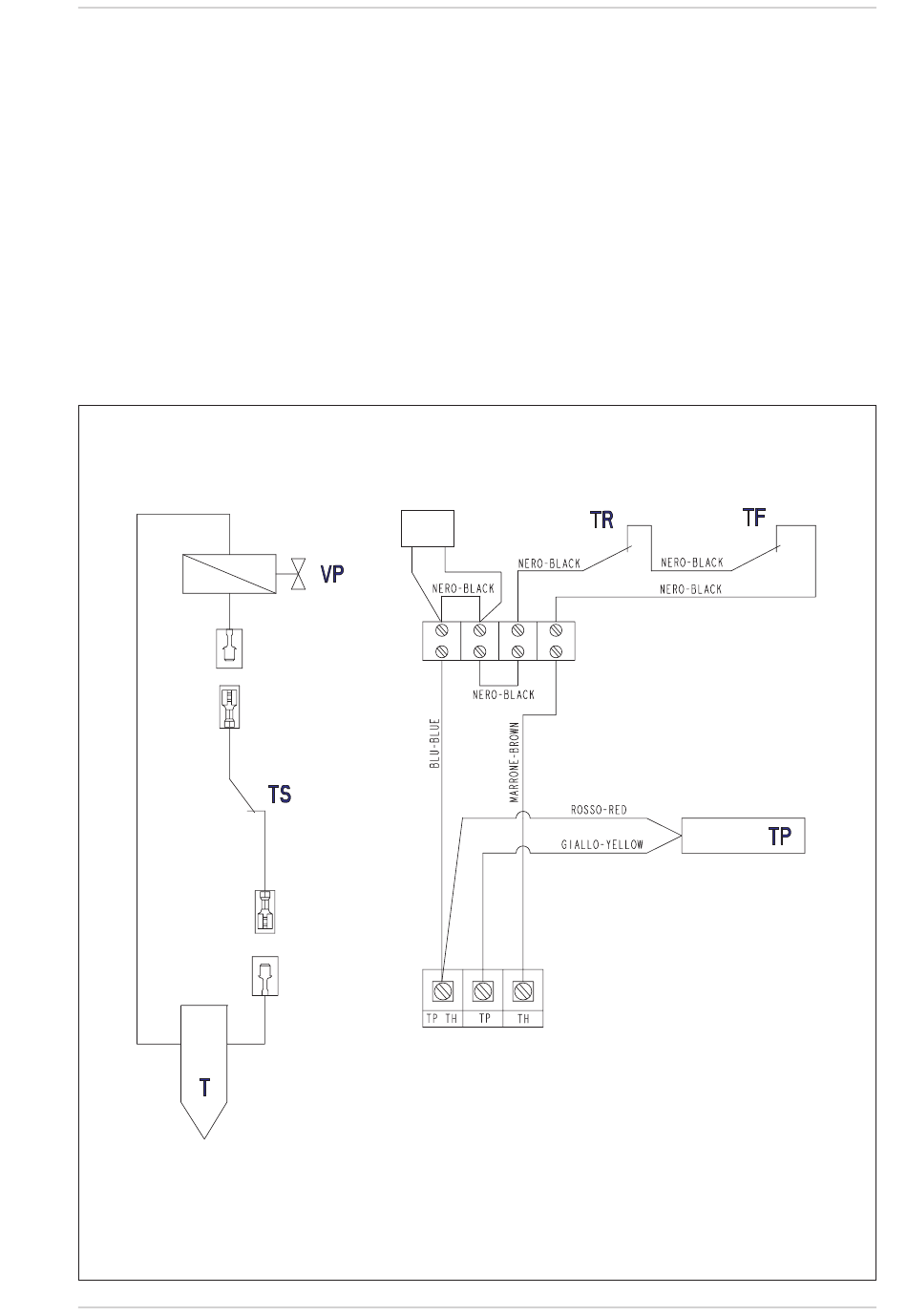

2.4.1 Wiring diagram (fig. 5)
40
including.the.union.to.the.stack/flue..
For. changes. of. direction,. use. only.
curved.components.
2.4 CONNECTION TO THE
ELECTRIC CIRCUIT
The. RX TP. self-powered. boilers. do.
not. require. connection. to. an. electri-
TA
KEY
TR. Boiler.stat
TF. Smoke.stat
TS. Safety.stat
TP. Thermopile
T..
VP.. Pilot.coil
BP.. Gas.valve.main.coil
TA. Room.stat
NOTE: Cables 1 x 2.5 mm
cal.system..
When.the.boiler.is.on,.voltage.values.
are. 5/7. mVcc. to. the. thermocouple.
and.250/300.mVcc.to.the.thermopile.
BP
Thermocouple
Fig..5
