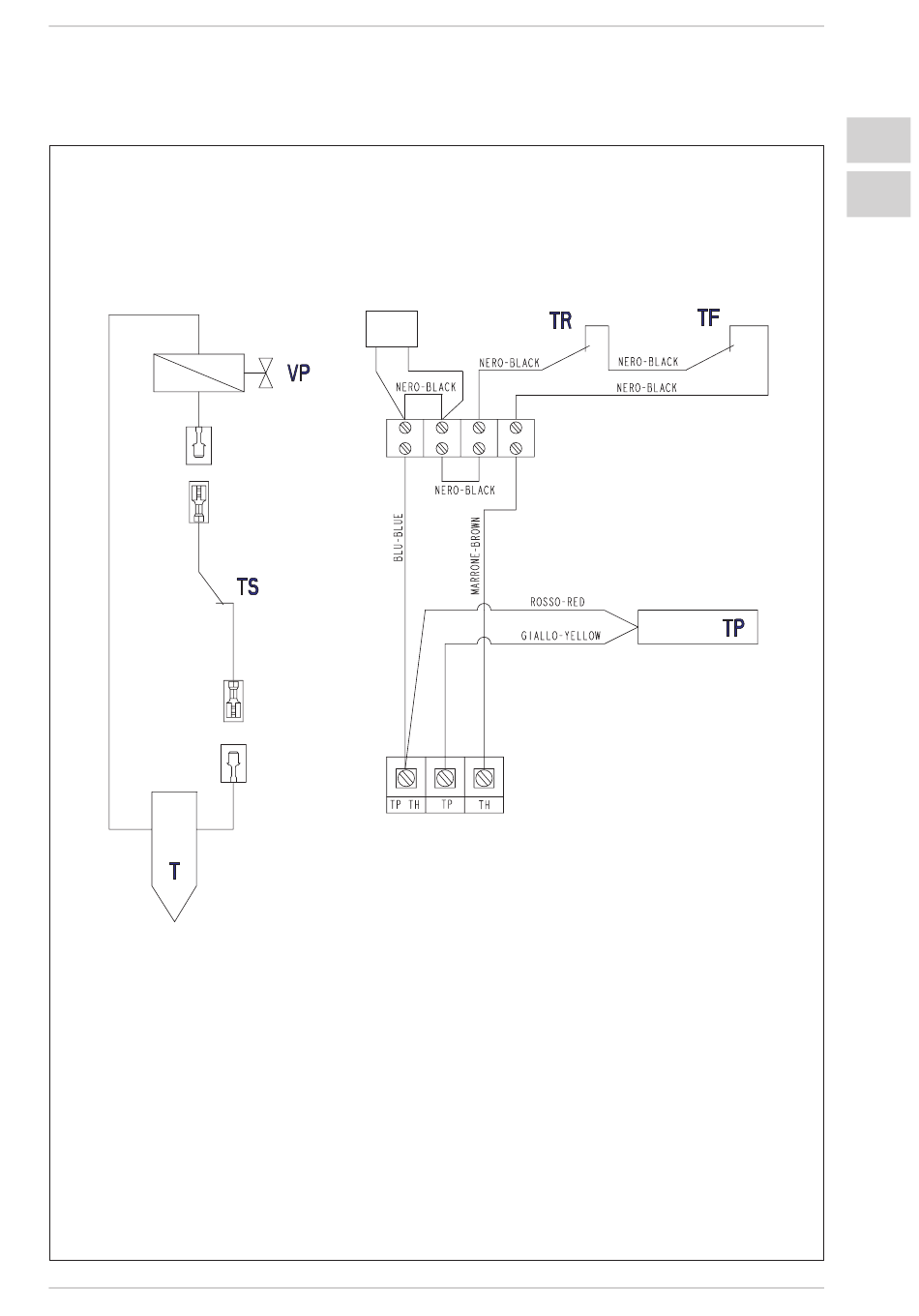

2.4.1 Schéma électrique (fig. 5)
TA
LÉGENDE
TR. Thermostat.de.réglage
TF. Thermostat.des.fumées
TS. Thermostat.de.sécurité
TP. Thermopile
T.
Thermocouple
VP. Bobine.pilote
BP. Bobine.principale.vanne.du.gaz
TA. Thermostat.d'ambiance
REMARQUE : Câbles 1 x 2,5 mm
BP
FR
ENG
Fig..5
