ENGLISH

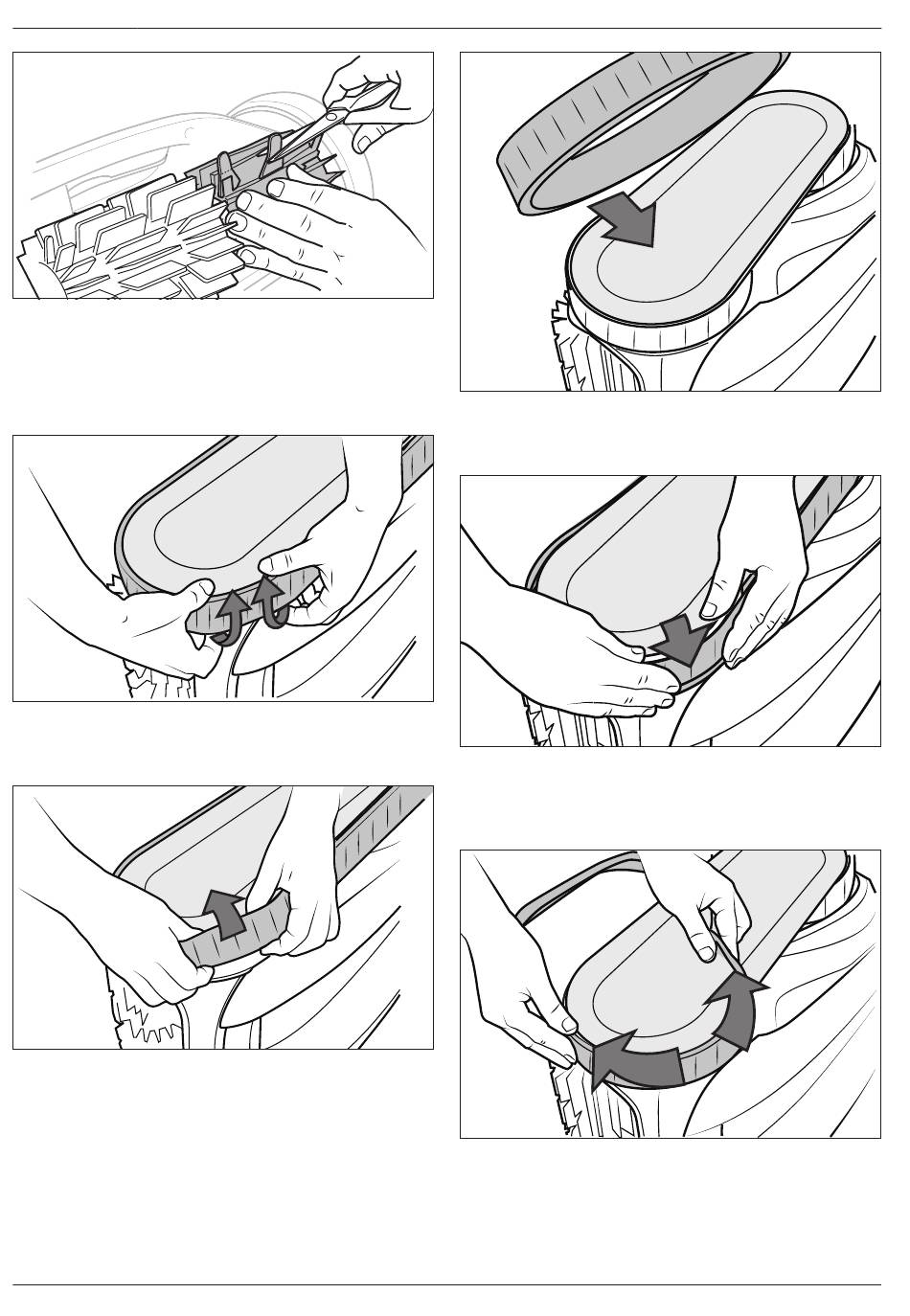

Figure 24. Cut Tabs
6.5
Replacing Tracks
1. Check the wear indicator or if the tracks are loose. Pull
on the inside of the old track to remove the track lip
from the front wheel.
Figure 25. Pull the Old Track Over the Wheel
2. Remove the old track from the front wheel, then
remove track from the rear wheel.
Figure 26. Remove the Old Track
3. Replace the track on the wheel by positioning the rib
toward the body of the cleaner.
Page 14
Polaris
FREEDOM
SC Cordless Robotic Cleaner | Owner's Manual
®
™
Figure 27. Track Replacement Orientation
4. Push one side of the track on to the wheel and fit the
rib of the track in the groove of the wheel.
Figure 28. Start on One Side of the Track
5. Work the track onto the front wheel and verify the rib
of the track is positioned properly within the groove of
the wheel.
Figure 29. Work the Track on Around the Wheel
