OPEN BLADES -

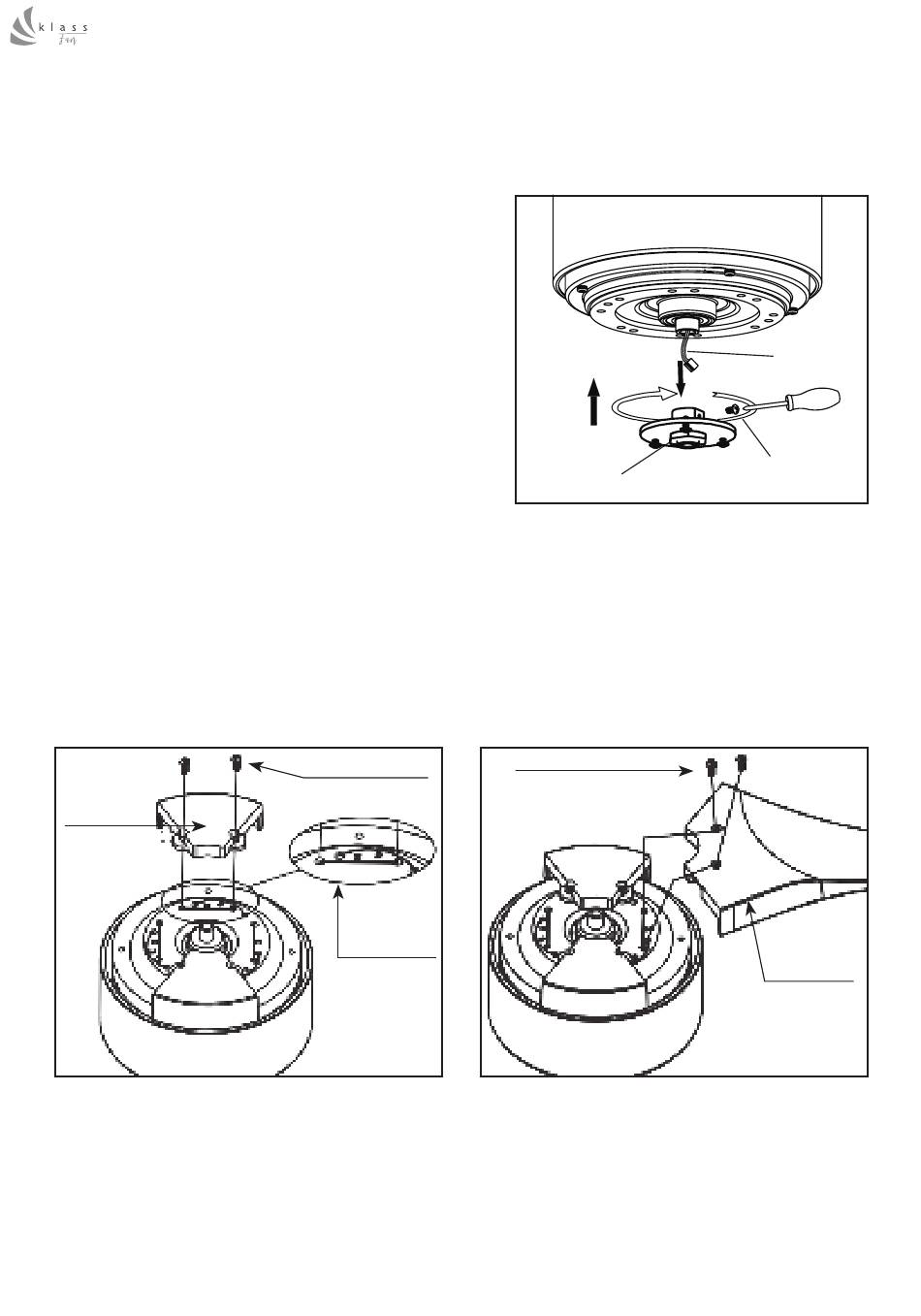

INSTALLATION OF LIGHT CONNECTOR
Pass the wire through the hole in the
light connector.
Align the light connector to the motor
shaft and tighten it.
Screw down the light connector from the
side.
Installation of 2 blades (ONLY for P1, P2 and P4 blades):
Before fitting the blades, please mark the blade and block fixing holes on the
motor board.
Start by mounting both adaptors, and fix them with the screws.
Do not tighten the screws to the end at this point.
Fixed
block
Place the blades on the two remaining spaces.
Screw these with the 2 screws.
Adjust the assembly in a manner allowing to have a minimum space between
the blades and locks, tighten the screws.
with or without light kit
Screws
Installation
Mark "2"
Motor housing
Light connector
Screws
32
Wire
Screw
Blades
