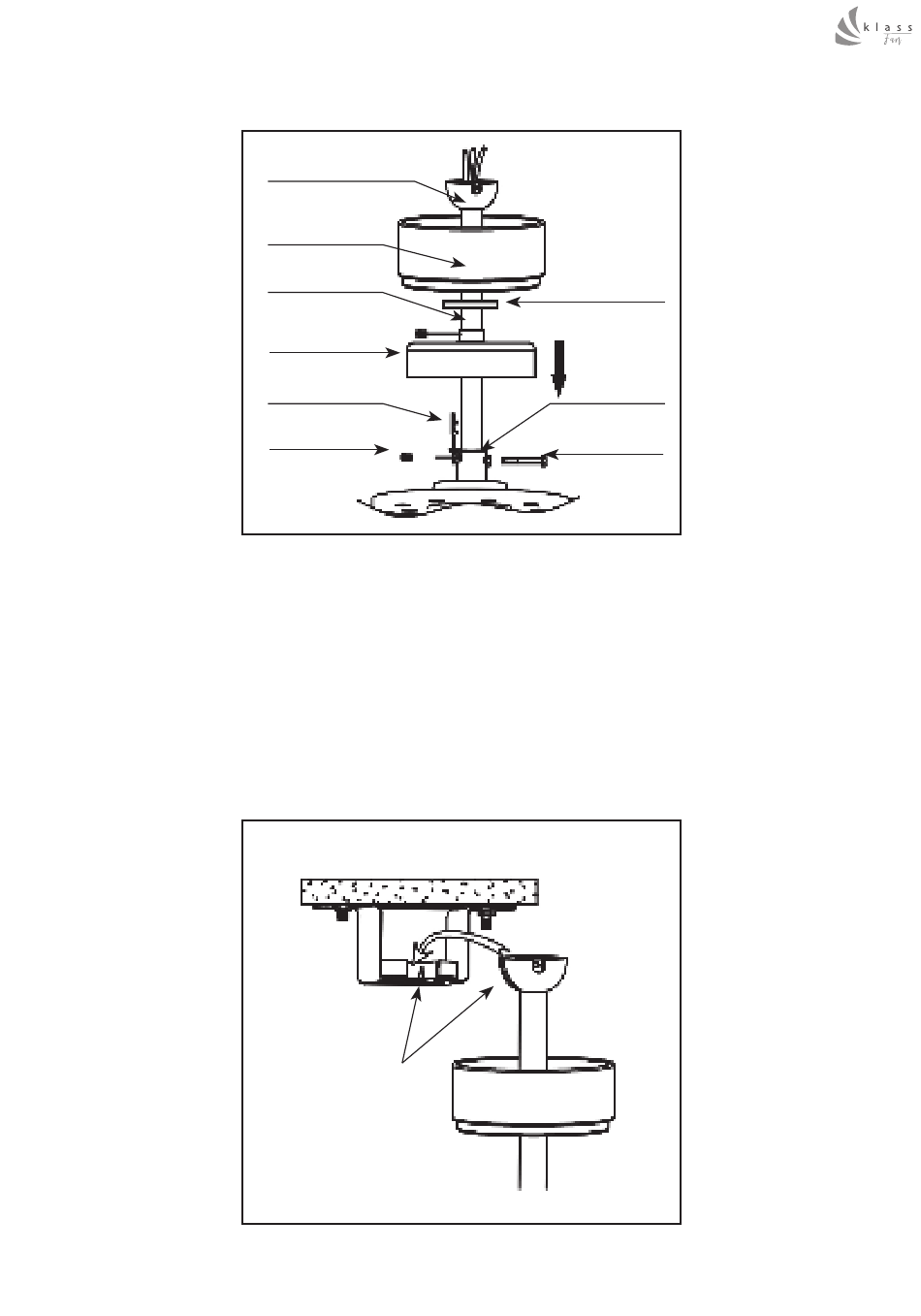

Attach the down rod to the motor through the coupler located above the motor
according to the following diagram.
Pass the through bolt through the coupler and the down rod being careful with
the cables.
Pass the pin, then screw the three screws around the coupler, the down rod
should not move, it must hold firmly.
Slide the decorative cover down, screw it firmly.
Finally, carry your fan on the support, the ball coming into the mounting plate,
make sure that the pin on the plate enters well in the groove of the ball joint.
Hanger ball
Canopy
Downrod
Decorative
cover
R pin
Set screws
Groove
Canopy
cover
Coupler
Cross pin
