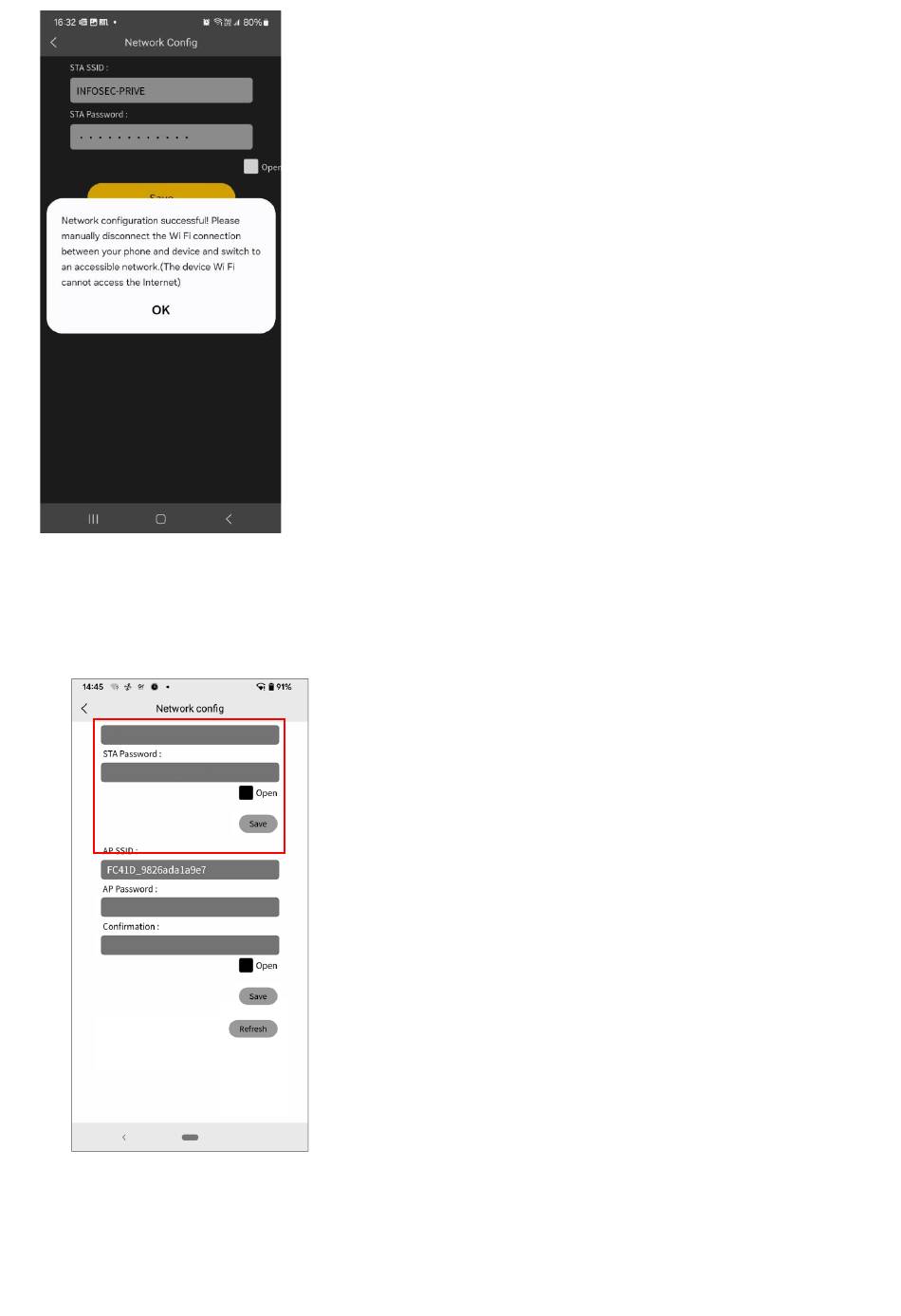

⚫ If you check "Open" checkbox, you only need to enter the router name (STA SSID) and no Wi-Fi/router
password will be required. Then, click the "Save" button to complete the setting.
⚫ The Wi-Fi module can only connect with a Wi-Fi network/router at 2.4GHz. If your Wi-Fi network is
above, you need to create a new one limited to 2.4 GHz.
⚫ Enter the Wi-Fi name (AP SSID) and Wi-Fi password (AP Password) of the Wi-Fi module, confirm the
password again and click the "Save" button to complete the setting of the Wi-Fi module.
If you check "Open" checkbox, you only need to enter the Wi-Fi name (AP SSID), no need to enter the Wi-
86
