Pluggable Connector Connection

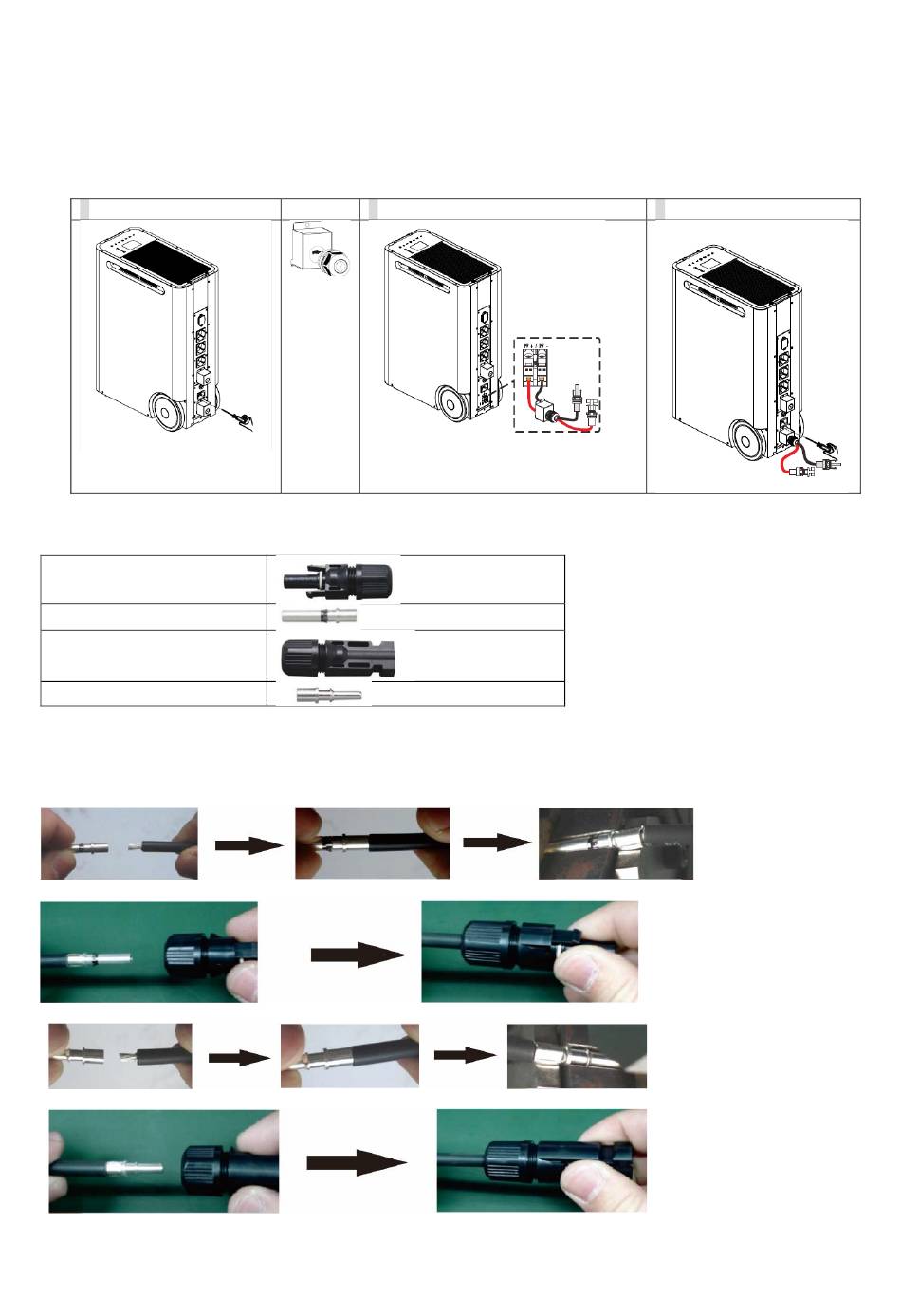

Please follow below steps to implement PV module connection:
1. Take off the PV connector cover by removing screws as shown below.
2. Install the cable gland.
3. Check correct polarity of wire connection from PV modules and PV input terminals.
Connect positive pole (+) of connection wire to positive pole (+) of PV input terminal. Connect negative
pole (-) of connection wire to negative pole (-) of PV input terminal.
4. Install cover back to the rear panel.
1
Note: Assemble the PV connectors supplied with the PV modules as follows.
Socket housing
Female terminal
Male connector housing
Male terminal
Prepare the cable and follow the connector assembly process:
Strip 8mm of cable on both sides and take care NOT to nick the conductors.
Insert the stripped cable into the female terminal and crimp as shown below.
Insert the assembled cable into the female connector housing as shown below.
Insert the stripped cable into the male terminal and crimp as shown below.
Insert the assembled cable into the housing of the male connector as shown below.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com - Hot Line/Tel + 33 (0)2
40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 10 24 AA 59 203 04
2
3
4
61
