Note 1 Use a flexible 3-wire - 2.5mm² cable (e.g. H07RN-F 3G2.5) from the output terminal block to
the distribution board.
Note 2 The distribution board must be protected at the top by a 16A curve C circuit breaker and 30mA
residual current device.

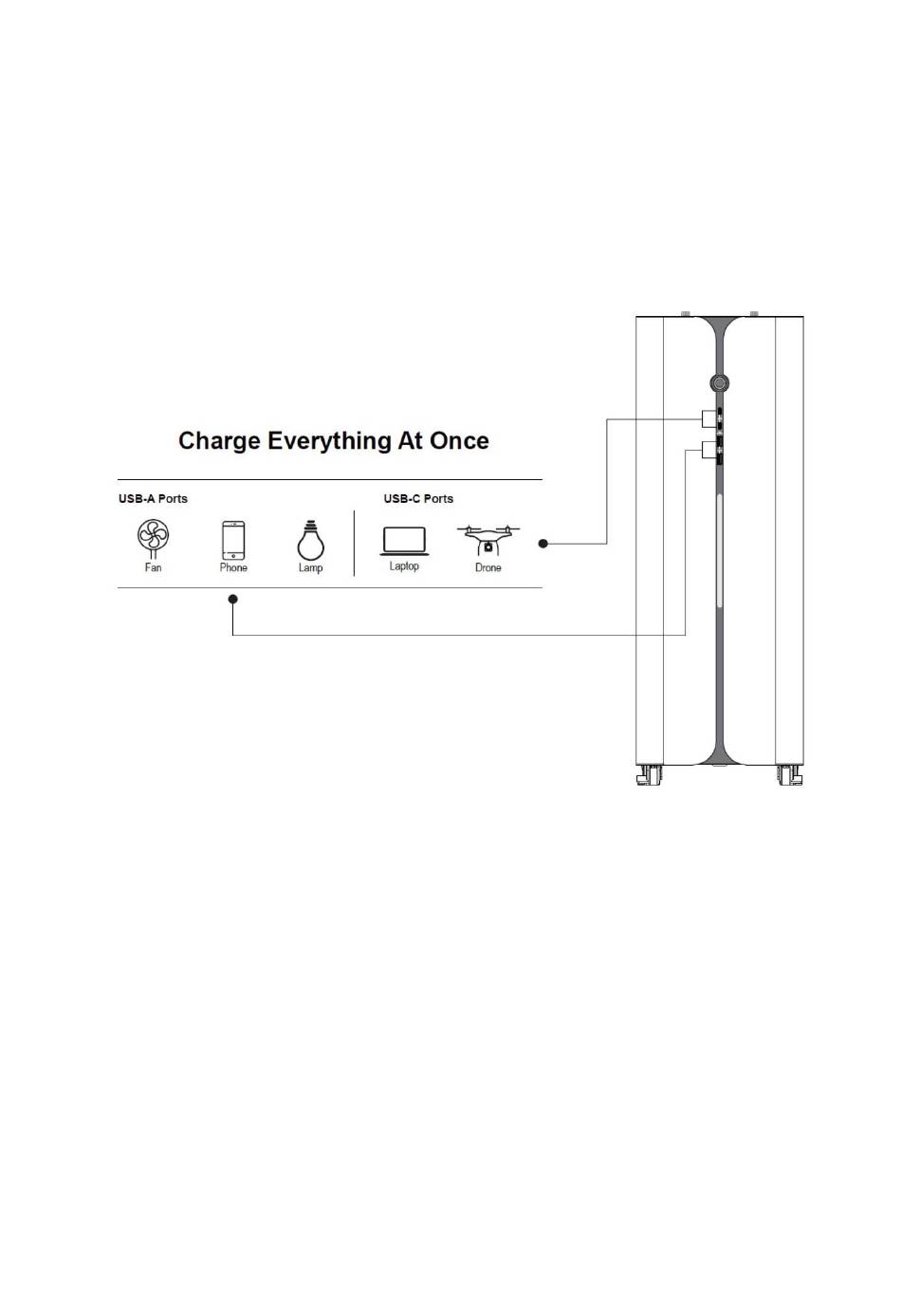

USB Charger
Use USB output cable (not provided) to charge your electronic devices.
USB charger port could be turned on/off through the LCD operation or through the application
Parallel Function
1. Introduction
This portable energy bank can be operated in parallel with 2 units. The supported maximum capacity is
6KW. If longer backup time is required, this unit can be connected with more battery modules up to 2
units.
CAUTION: Parallel feature will be disabled when only PV power is available.
2. System Configuration
There are several configurations available as shown below.
Note: The gray unit in the picture is the external battery module.
64
