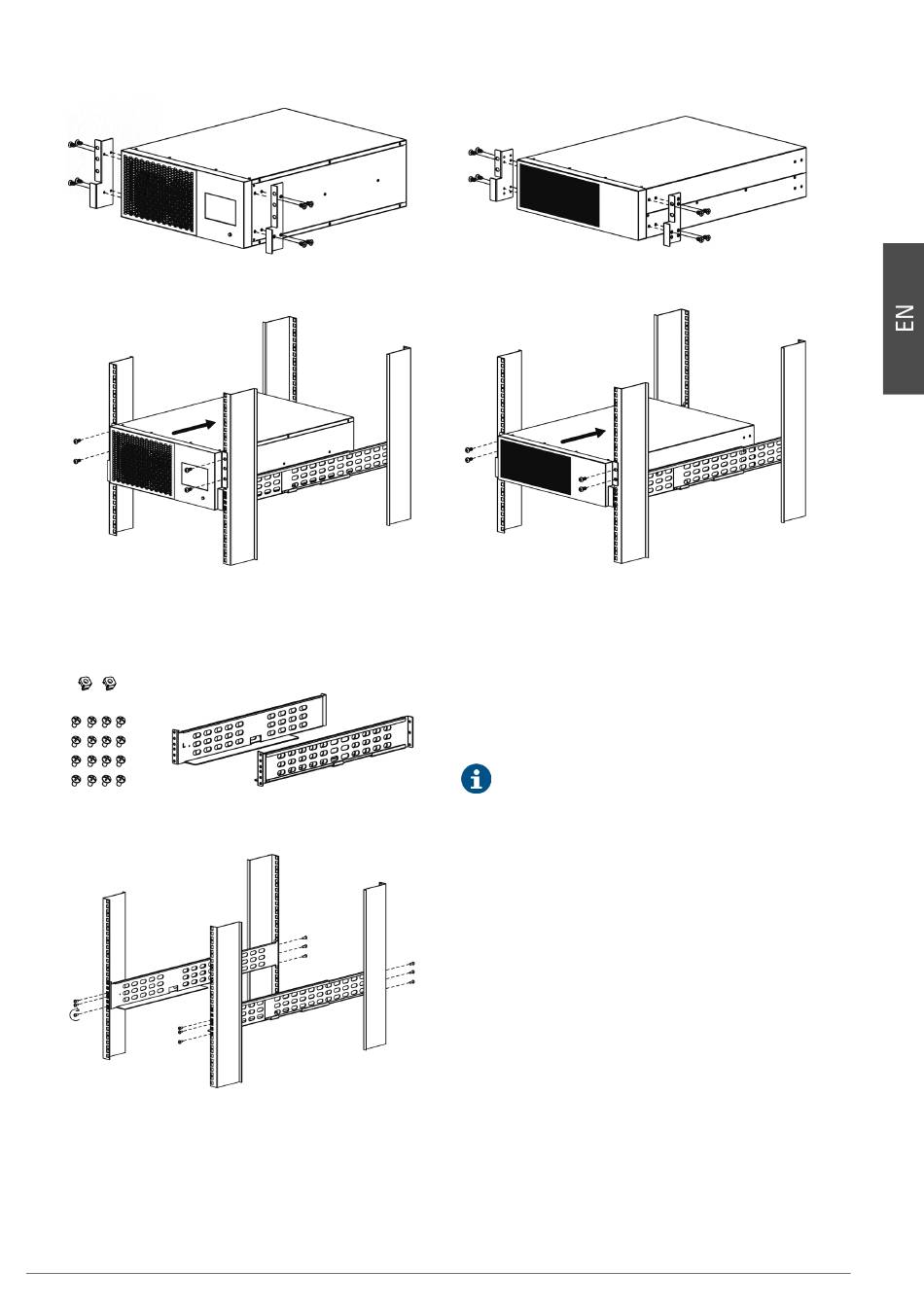

Fig. 48. Mounting the rack supports on the UPS.
Fig. 49. Insertion and fixing of the UPS in the rack cabinet.
Mounting the battery modules.
2.
Fig. 50. Necessary material: guides and screws.
Fig. 51. Mounting the guides in the rack cabinet.
USER MANUAL
Fig. 52. Mounting the rack supports on the battery modules.
Fig. 53. Mounting the rack supports on the battery modules.
5.2.6. Instalación de tarjetas SNMP.
SLC CUBE4
All
devices have as standard one (1) slots located on
the back of the device (identified as "Smart Slot", tower version, rack
version (*), Fig. 4), suitable for installing a card. communications,
SNMP or any other expansion card for communications, signaling
and/or other services.
The rack version has 2 "Smart Slots", both free.
(*)
To install the SNMP card or another optional addition in the intel-
ligent slot, proceed as follows:
Remove the fixing screws from the slot cover and the part as
1.
a cover.
Install the NIMBUS, SNMP card or another option in the slot
2.
and secure it using the screws.
Make the relevant connections.
3.
Fit the protective cover for the communication connections and
4.
the fixing screws.
