GB MT
• 1 - small pendulum motion
• 2 - medium pendulum motion
• 3 - large pendulum motion

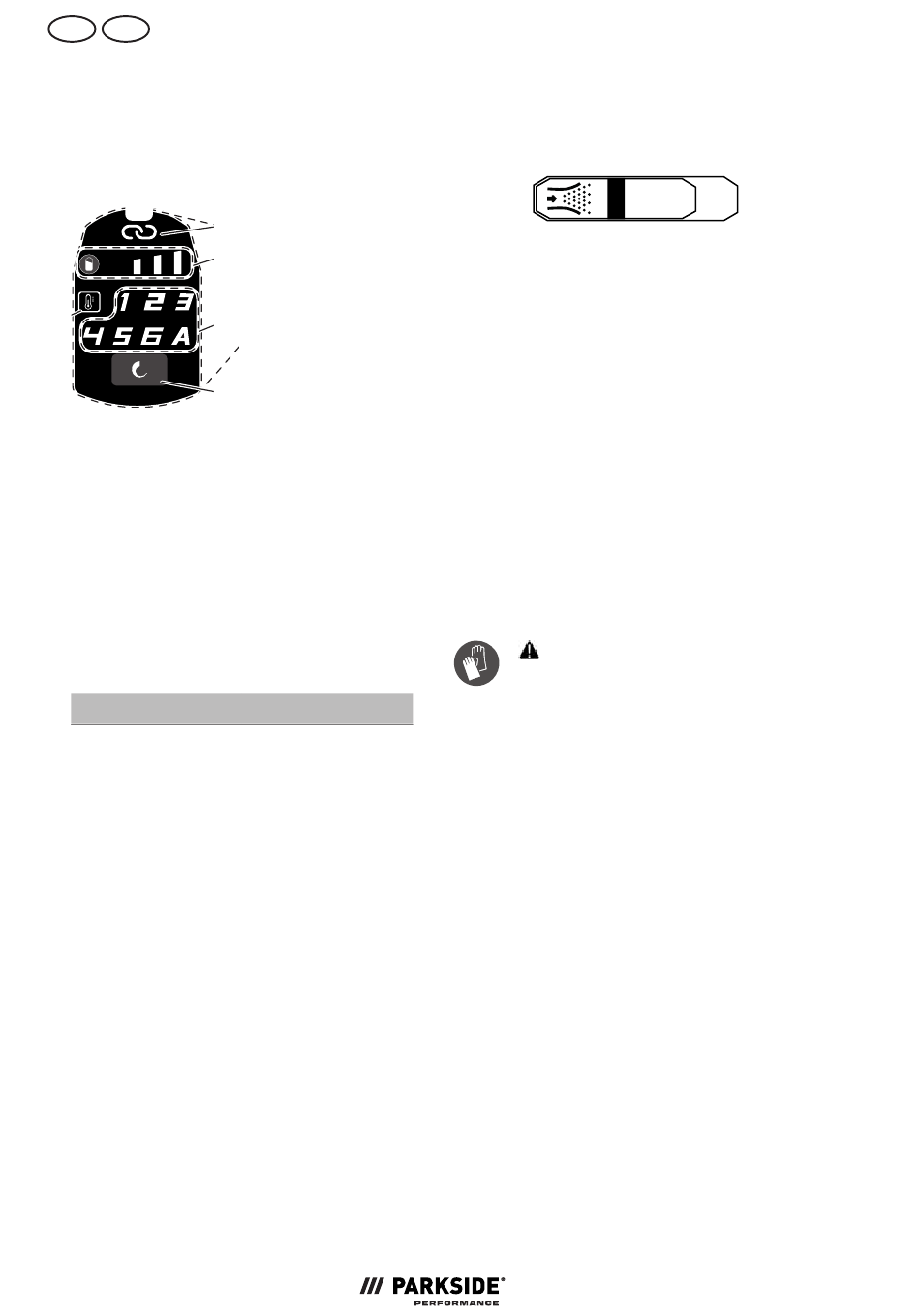

Control panel (1)
1
6
• "Connected" display (2)
Status of the connection with the
PARKSIDE app
flashing connection attempt
continuous light connection es-
tablished
• Charge level indicator on the
device (3)
When unlocked: The LEDs show
how much charge remains in the
battery.
LEDs
red, orange,
green
red, orange
red
• Stroke rate button (5); Stroke
rate display (4)
Set the stroke rate in 6 levels and
automatic:
• 1 lowest stroke rate
• 6 highest stroke rate
• A automatic load detection
• Overtemperature display (6)
Lights up if the battery is too hot.
• Wait until the light goes out.
34
2
3
4
5
Meaning
Battery charged
Battery partially
charged
Battery needs to
be charged
Switch (dust blower function) (23)
Blower function for chip-free cutting
line
⭠
enable
Lever (24)
Bevel cutting, p. 35
Attaching and removing the
saw blade
Supplied saw blades
• Wood saw blade, HOLZ – 2 side
clean curve (25)
Precise, tear-free curved cuts in
wood
• Wood saw blade, HOLZ – 2 side
clean (26)
Precise, tear-free cuts in wood
CAUTION! Risk of injury
when touching the saw blade.
Wear protective gloves when
handling the saw blade.
Requirements
• The saw blade has a T-shank
mount (single lug shank) like the
supplied saw blades (25/26).
• The saw blade is suitable for the
material used.
• The chuck is free of splinters or
other material residue.
Installing the saw blade (Fig. A)
1. Turn the release of the chuck (20)
as far as possible. Keep the re-
lease of the chuck fixed in this po-
sition.
2. Place the saw blade (25/26) into
the chuck (15).When inserting the
saw blade, make sure that the
back of the saw blade is in the
notch of the guide roller (16).
⭢
disable
