INSTALLATION INSTRUCTIONS: Viewline 85 mm
Ruder position display
14
15
16
17
18
19
Important: Clean the instrument glass and front frame with water only. Do not use chemical agents.
Accessories / Spare parts
20
Bush contacts 0.25 – 0.5 mm
Bush housing, 8-pin
Hand pliers
Tool for hand pliers
Single contacts 0.14 – 0.22 mm
Single contacts 0.5 – 0.75 mm
Strip 0.14 – 0.22 mm
Strip 0.25 – 0.5 mm
Strip 0.5 – 0.75 mm
Bracket assembly mounting set
Flush mount fixing bracket
Flush mount seal
*
A2C59510846
2
A2C59510847
Tyco No. 539635-1
Tyco No. 539682-2.
Tyco No. 1355718-1
2
Tyco No. 963729-1
2
Tyco No. 1355717-1
2
Tyco No. 928999-1
2
Tyco No. 963715-1
2
A2C59510854
A2C59510864
A2C53215641
Technische Änderungen vorbehalten - Technical details subject to change
TU00-0752-5907102

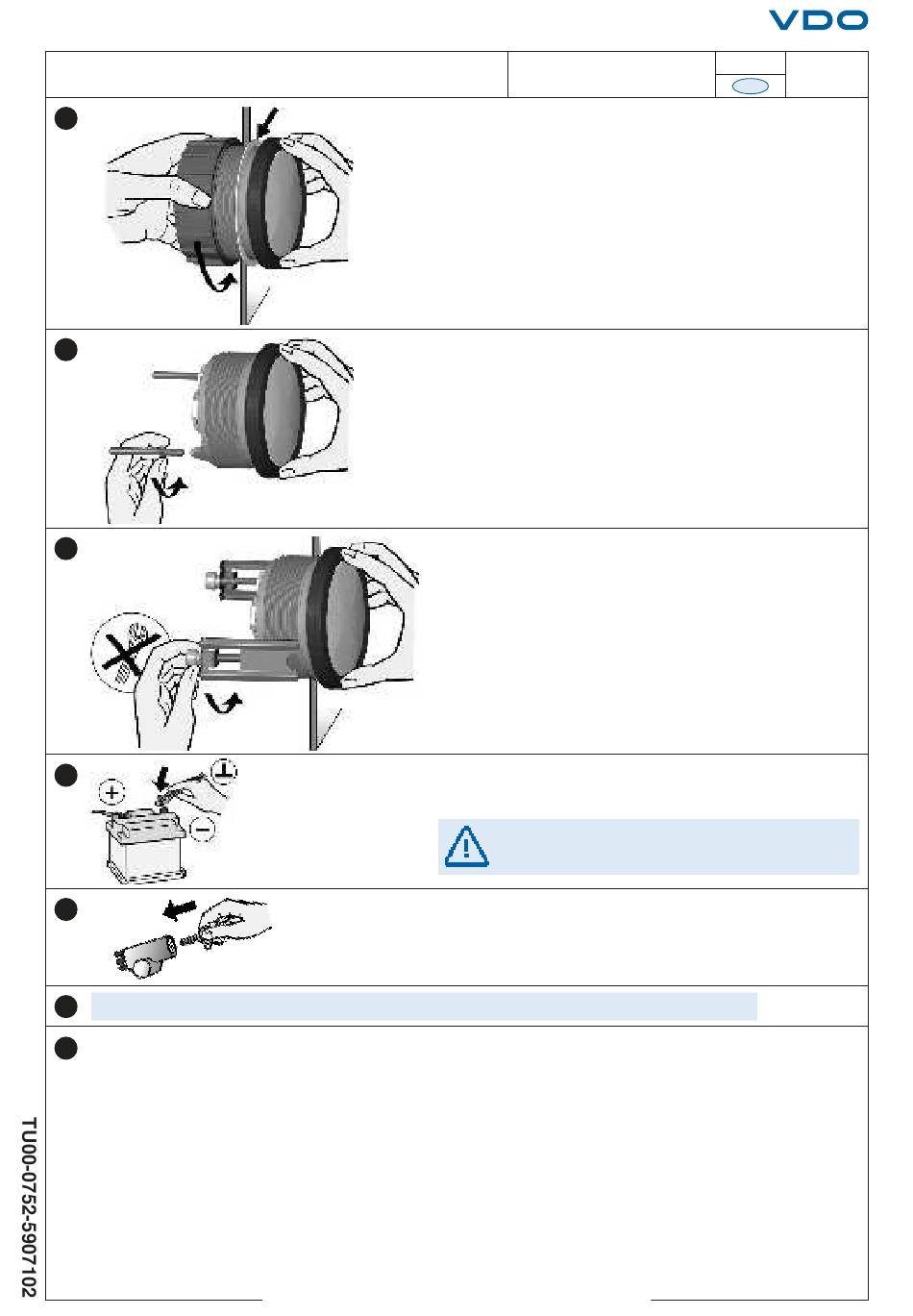

Align the instrument and hand-tighten the fastening
nut. Ensure that the nut is not tightened with a torque
greater than 400 Ncm.
* Make sure the seal lays flat between the panel and
the front ring.
If you would like to omit the fastening nut, you may
use the part set A2C59510854 as an alternative.
This is recommended if the installation location is
subject to vibratory loads.
Screw the stud bolts into the provided drill holes in
the enclosure. Max. stud bolt torque is 1.5 Nm
Place the bracket on the stud bolt and hand-tighten
the knurled nut.
* Make sure the seal lays flat between the panel and
the front ring (see Fig. 14).
Reconnect the battery after inspecting the connection.
•
Please note that when you disconnect the battery, all volatile
electronic memories lose their input values and must be repro-
grammed.
If necessary, replace the main circuit switch. Turn on the ignition
and conduct a functional test. Reprogram other instruments that
may have lost their saved settings.
Fastening nut
Front ring, flat; black
Front ring, flat; white
Front ring, flat; chrome
Front ring, triangular; black
Front ring, triangular; white
Front ring, triangular; chrome
Front ring, round; black
Front ring, round; white
Front ring, round; chrome
Protective connector cap, 8-pin
02/11
5
1-5
GB
A2C53212238
A2C53192911
A2C53192912
A2C53192910
A2C53192917
A2C53192920
A2C53192918
A2C53192913
A2C53192916
A2C53192914
A2C53324664
