INSTALLATION INSTRUCTIONS: Viewline 85 mm
Ruder position display
8
1
9
1.5...3 mm
10
11
8
5
2
•
Do not drill holes or ports in load-bearing or stabilizing stays or tie bars!
• Note the necessary clearance behind the drill hole or port at the installation location. Required mounting depth:
65 mm.
•
Drill small ports; enlarge and complete them, if necessary using taper milling tools, saber saw, keyhole saw or
file. Debur edges. Follow the safety instructions of the tool manufacturer.
Depending on the configuration, insert the cable into the 8-pin contact
housing according to the following pin assignment. The contacts must
audibly lock into place.
8-pin contact housing
Pin 1 - Term. 30 - battery 12/24 V
Pin 2 - Term. 31 - ground
Pin 3 - signal ground
Pin 4 - Term. 15 - ignition plus
4 Pin 5 - sensor signal
Pin 6 - Term. 58 - lighting
Pin 7 - unassigned
Pin 8 - unassigned
Now insert the plug into the gauge. Note the inverse polarity protection nose
in the process.
1
Technische Änderungen vorbehalten - Technical details subject to change
TU00-0752-5907102

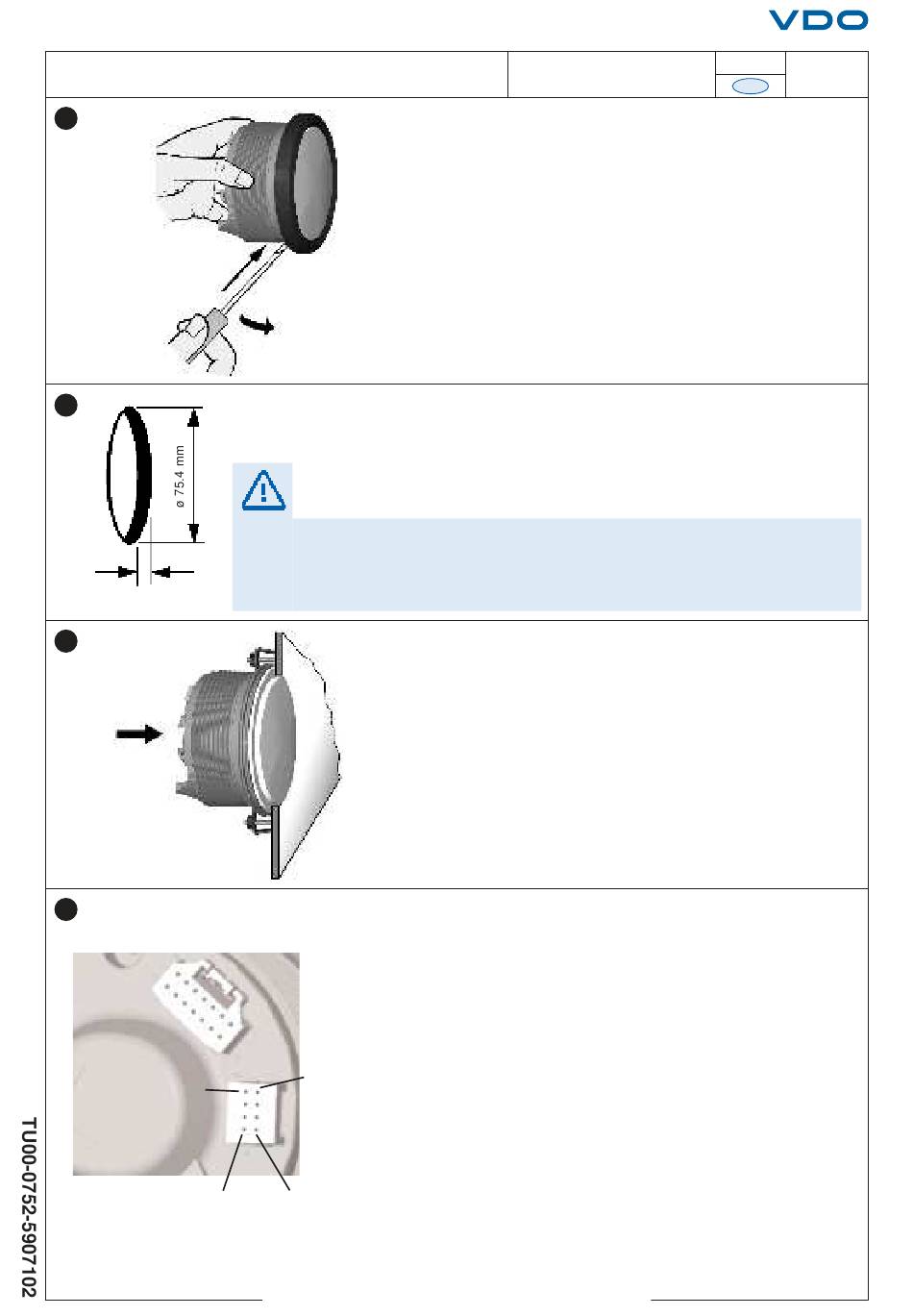

If the instrument is mounted flush (i. e., from the back
so that the instrument glass and the panel form one
plane), the front ring must be removed. Press the
instrument glass with both thumbs, while at the same
time pressing the front ring forward from the instru-
ment with both index fingers. Note the use of a tool
in the adjacent figure.
Flush assembly.
The recommended panel thickness is 1.5 to 3 mm.
The drill hole must have a diameter of 75.4 mm.
Ensure that the installation location is level and has
no sharp edges.
Place the flush mount seal A2C53215641 on the
instrument glass.
Put the instrument into the drill hole from the back.
Adjust the instrument so that the gauge is level and
fasten it to the stud bolts on the rear side of the panel,
using the flush mount fixing bracket A2C59510864.
