1. Disconnect the building-side connecting
cable from the power supply and secure it
against being switched on again. To do
this, trip the corresponding circuit breaker
of the house installation.
2. Loosen the two Allen screws (1) and
remove all light components (2-5) from the
mounting pot (6).
3. Pierce or cut a cable opening in the
installation pot at one of the perforations
provided. Then guide the connection cable
on the building side through the cable
opening and place the installation pot (6) in
the installation opening provided. Fix the
installation pot (6).
4. Poke a hole in the rubber plug at the
bottom of the light and lead the connection
cable through this hole as well. Then
tighten the sleeve nut.
5. Connect the building-side connection
cable as shown in Figure 1 on the
underside of the printed circuit board (3).
6. Fix the printed circuit board in the lamp
base (2) using the two cross screws (9).
7. Place the luminaire disk on the luminaire
base and fix it in place using the screws
and nuts (8).
8. Put the lamp (2) back into the mounting
pot ,put the cover (5) on the lamp and fix it
with the two screws (1).
9. Turn the power back on. The installation
is now complete.
Subject to technical changes
English

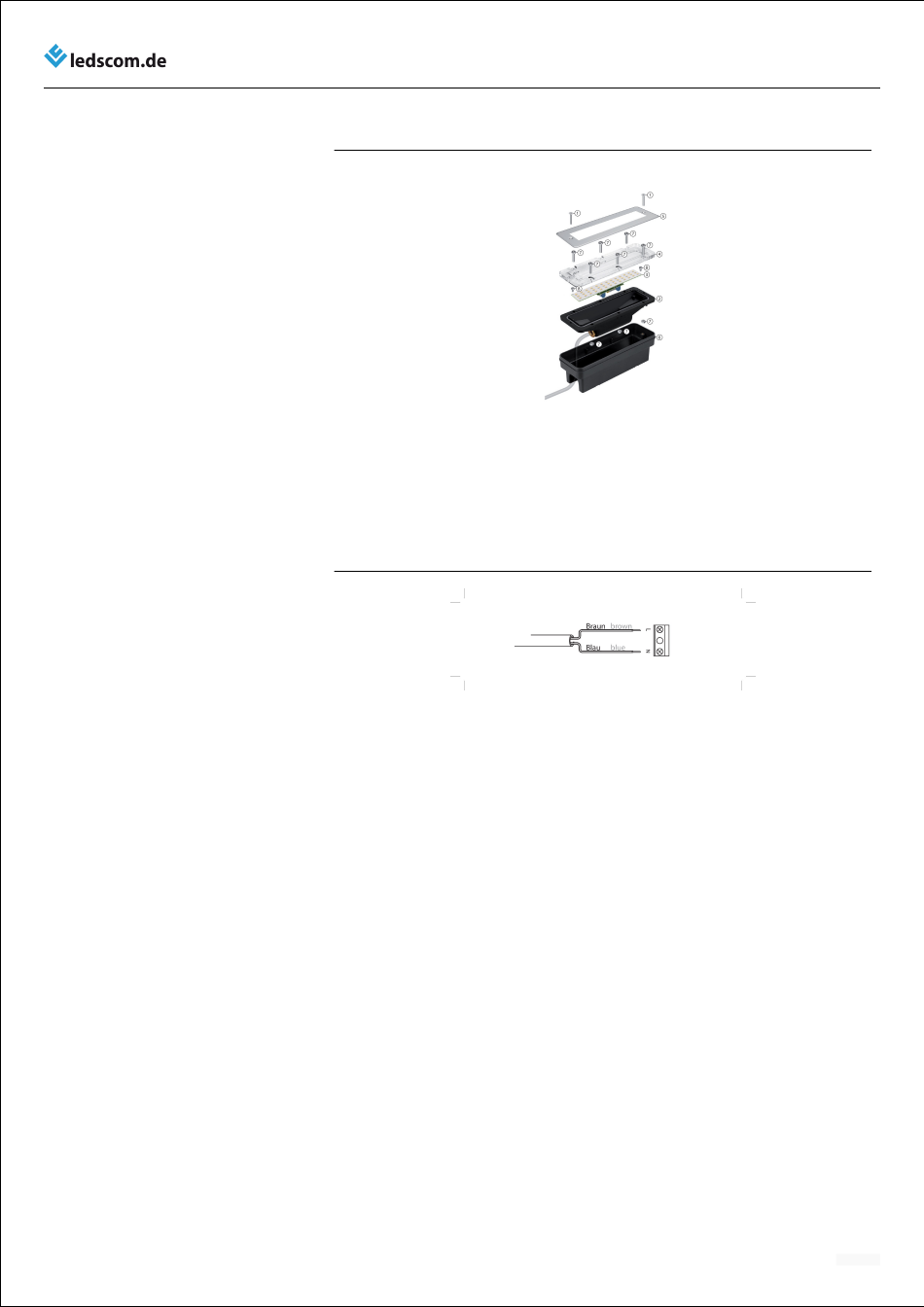

Figure 1
1: Allen screws
2: Luminaire base
3: Printed circuit board
4: Luminaire pane
Figure 2
Staircase light (LC-EL-037-WW) - Assembly instructions
5: Aperture
6: Installation pot
7: Cross screws with nut
8: small cross screws
12/2024
