3/ Connection

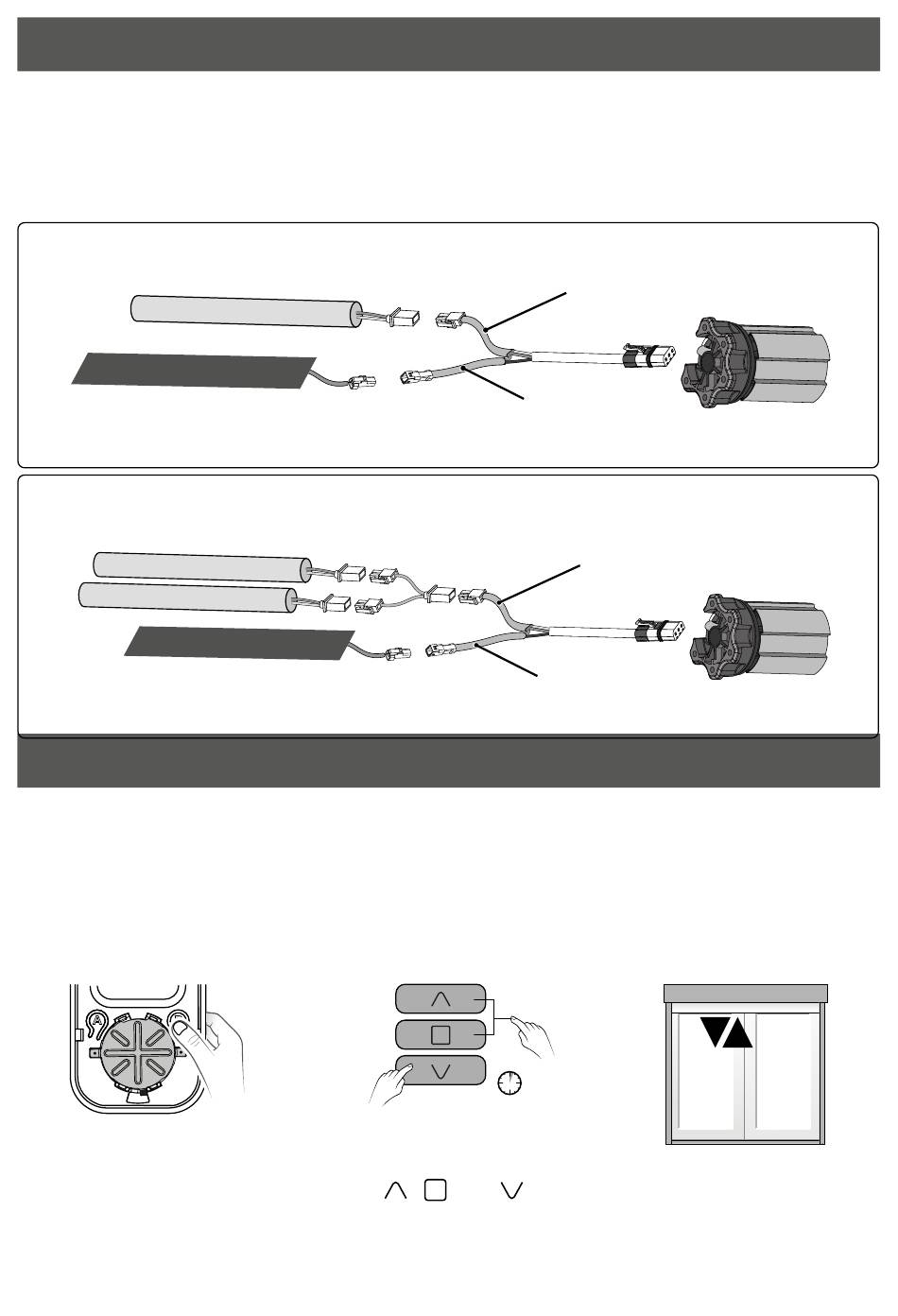

Recommendations: When installing and mounting the panels and battery, ensure
that the cables are running in the right direction and that they are positioned close
to the motor head.
The motor is supplied with a H05VVF power cable. This cable cannot be placed
outdoors unless it and the connector are inside a UV-resistant conduit.
TYMOOV 5 SO / 10 SO / 15 SO
Photovoltaic solar panel
TYMOOV 20 SO
Battery 1
Battery 2
Photovoltaic solar panel
4/ Starting up for the first time
4.1 Disabling transport mode
If the motor is associated with a remote control and powered by the battery,
and does not receive a control command or settings adjustment for 72 hours, it
automatically switched into Standby: this is «transport» mode.
To prevent or exit this transport mode, you must disable is from the individual
remote control:
❶ Press button B, located
on the front of the remote
control, twice, so that the
orange LED flashes.
32
Battery
x2
❷ On the remote control, ,
press
time, for longer than 3 seconds,
until the LED lights up.
Brown (+) / Blue (-)
Black (+) / Blue (-)
Brown (+) / Blue (-)
Black (+) / Blue (-)
> 3s
and at the same
,
1 2 1 2
Motor head
See
recommendations
Motor head
See
recommendations
x 1
The motor activates
briefly.
1 2
